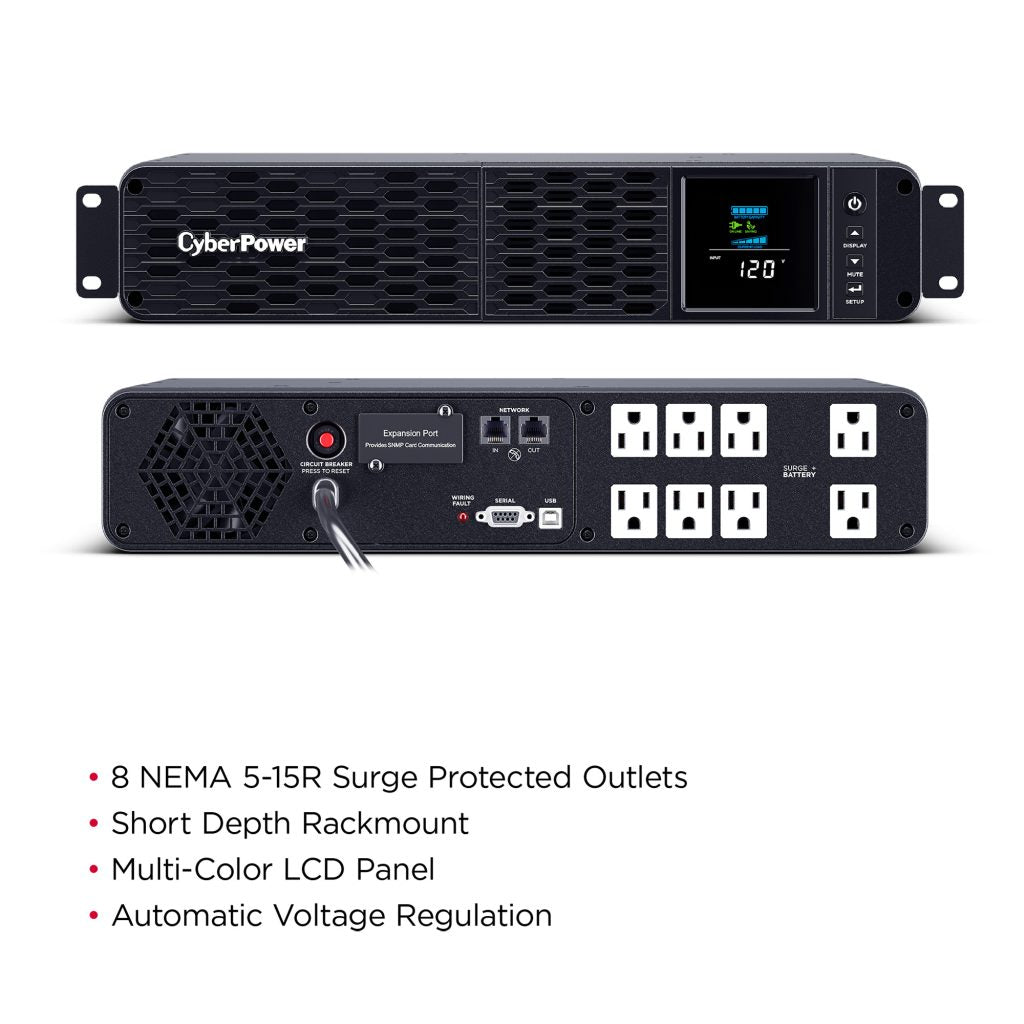

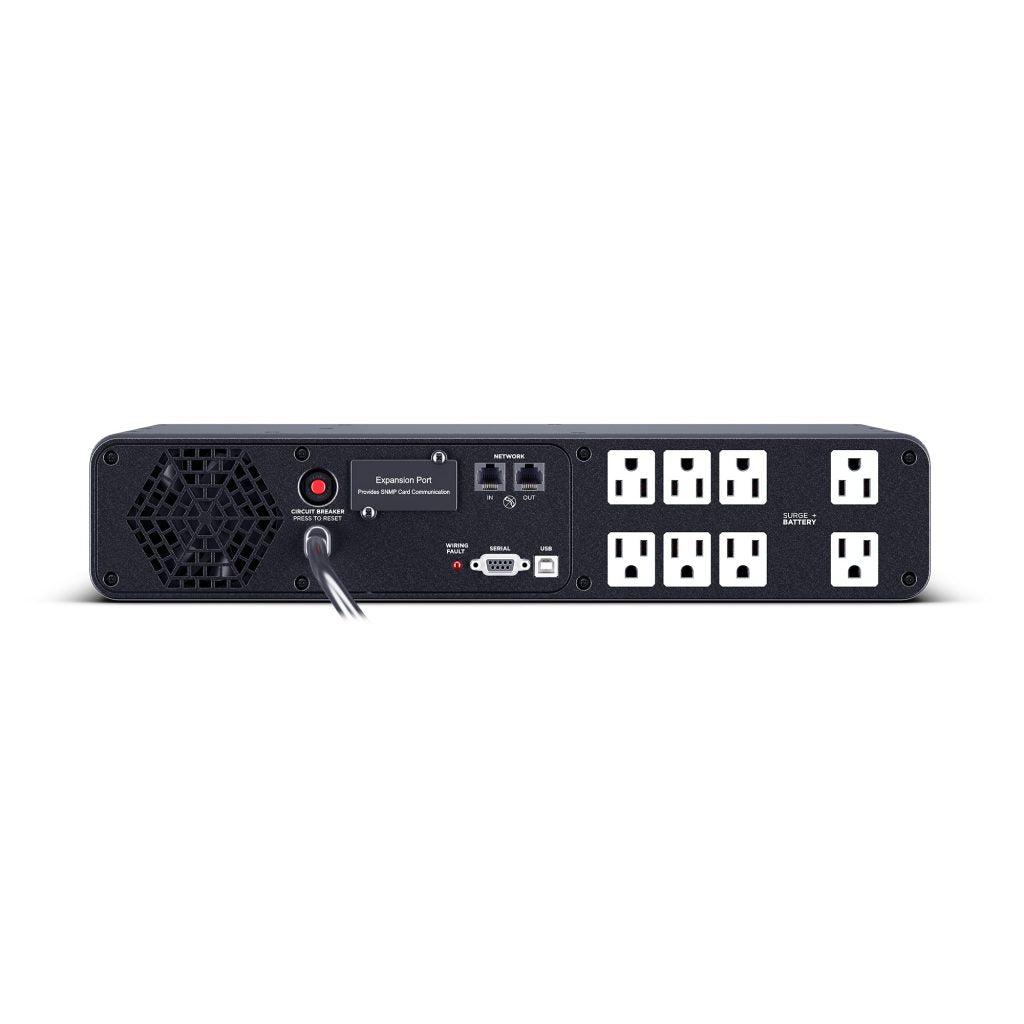

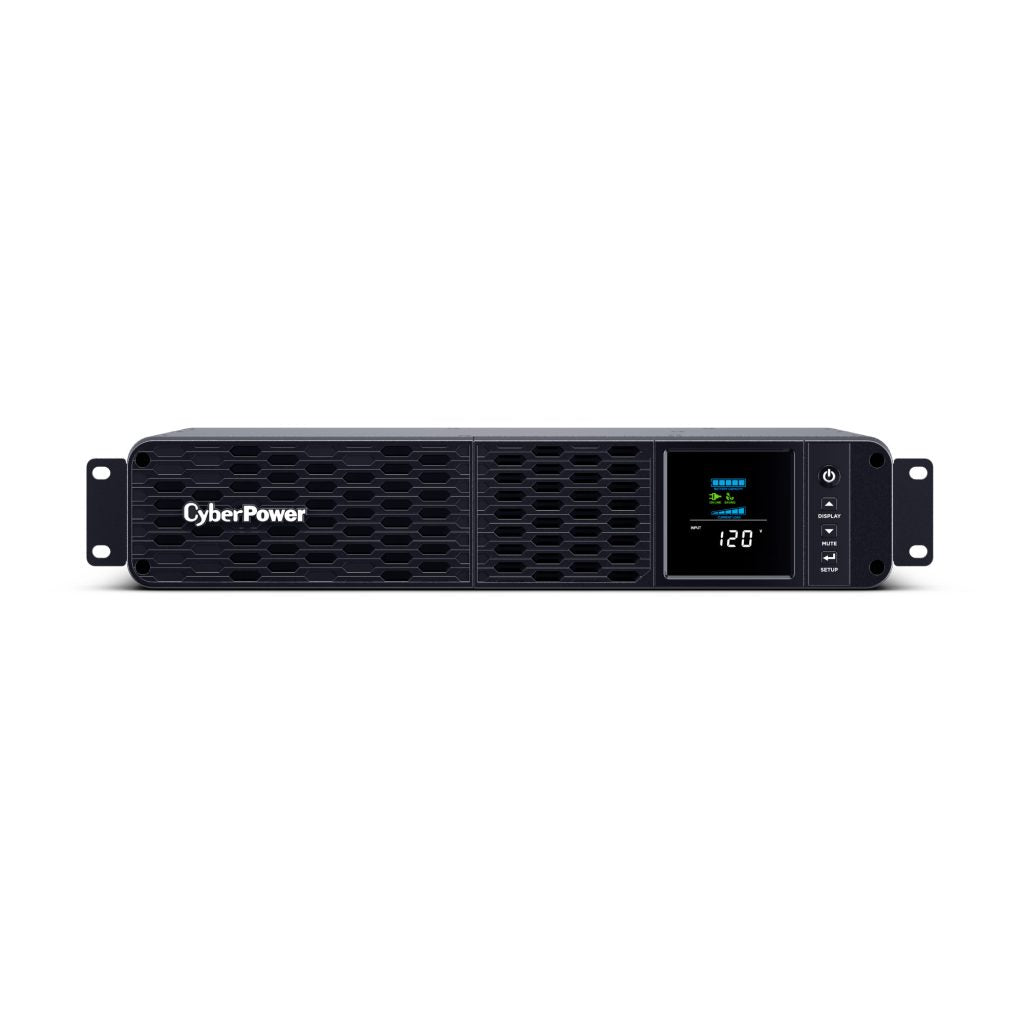

Cyberpower CP1500PFCRM2U PFC Sinewave Rackmount UPS 1500VA 1000W 120VAC

Product Description

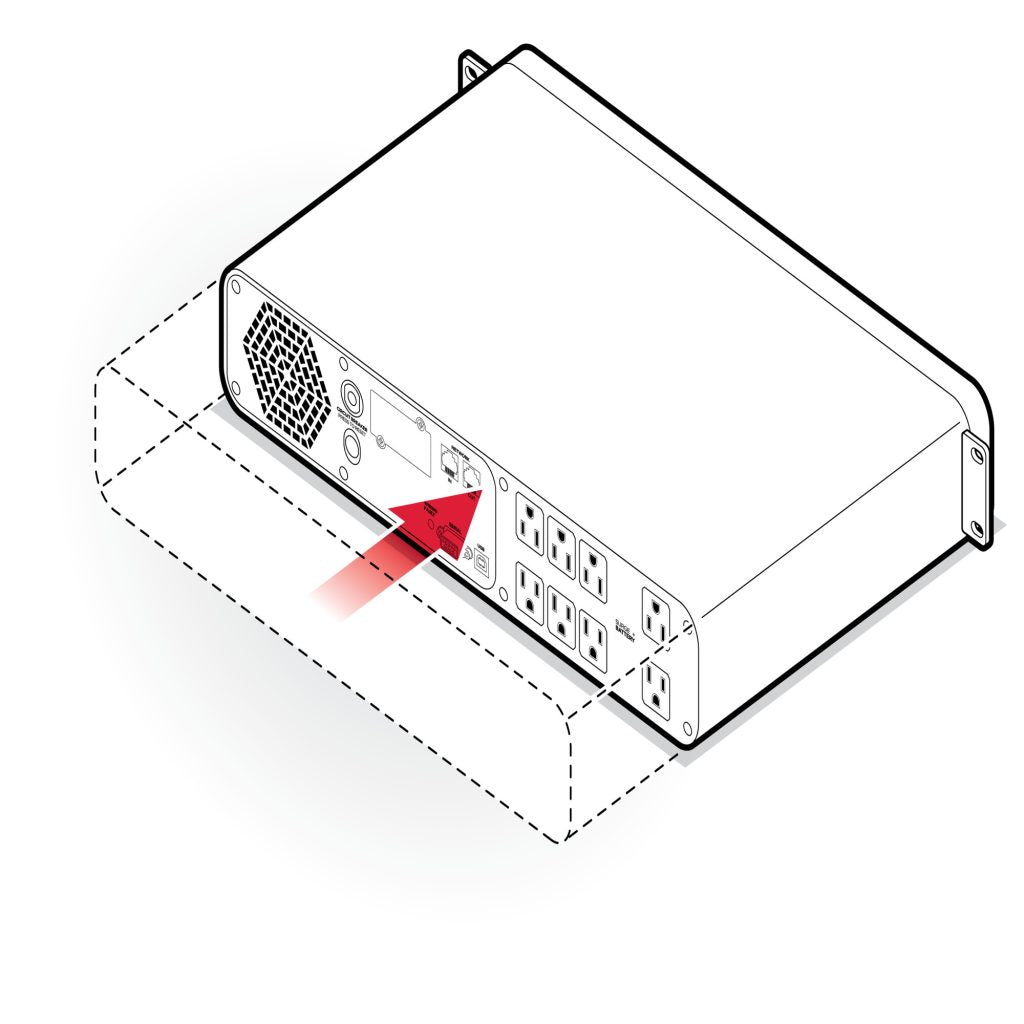

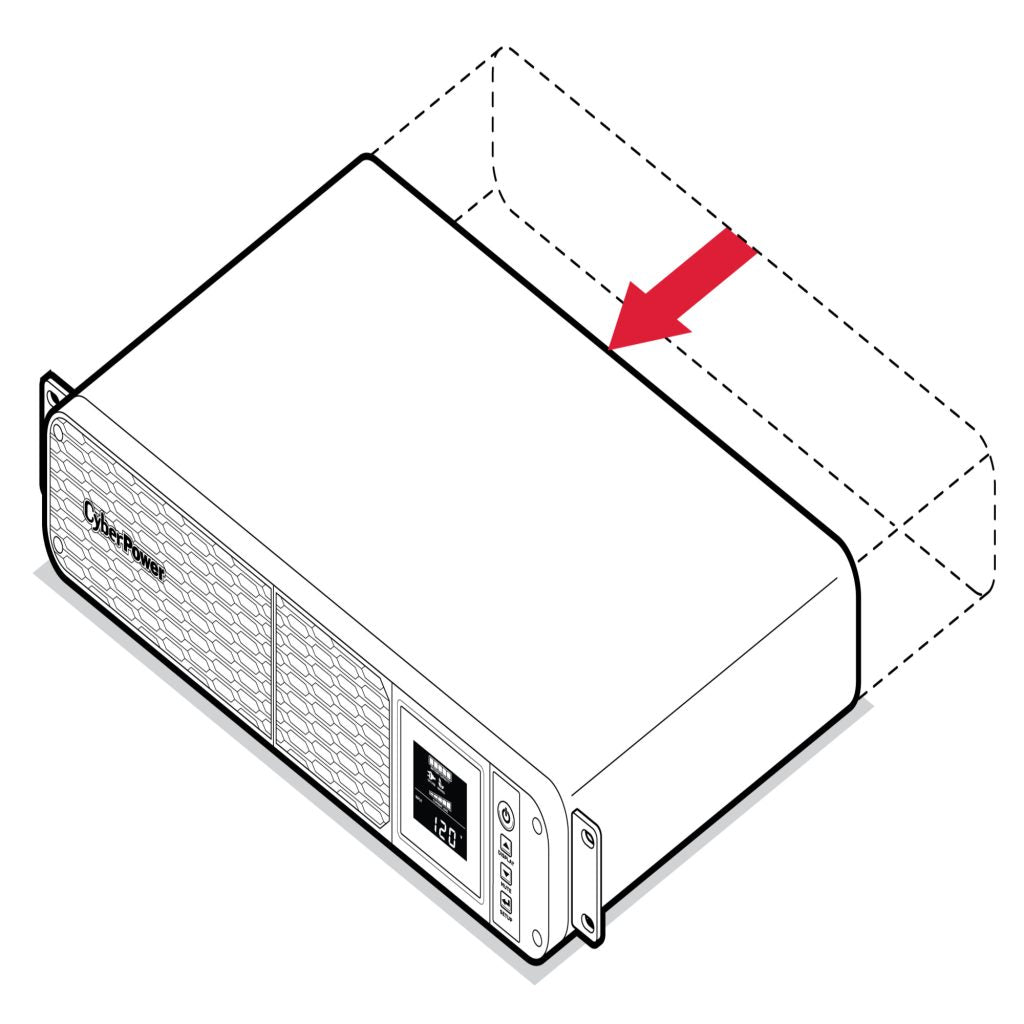

The CyberPower CP1500PFCRM2U is a PFC Sinewave rackmount UPS that provides battery backup, surge protection, and EMI/RFI filtration. Designed for security, audio/visual, and networking equipment needing active PFC, it features Automatic Voltage Regulation (AVR) and a color LCD. At 10.5 inches deep, it fits in short-depth racks.

• Capacity: 1500VA / 1000W
• Topology: Line Interactive
• Waveform: Sine Wave

Product Highlights

Provides battery backup, surge protection and EMI/RFI filtration. Compact design fits in short-depth racks. Features Automatic Voltage Regulation (AVR) and a color LCD.

Product Information

Standard Information

• Brand: CyberPower
• Manufacturer Part Number: CP1500PFCRM2U

Technical Specifications

• Brand Name: CyberPower
• Product Series: PFC Sinewave
• ADI Part Number: 0E-CP1500PFC
• Manufacturer Part Number: 0E-CP1500PFC
• Active PFC Compatible: Yes
• Energy Saving: GreenPower UPS™ Bypass Technology
• Energy Star Certified: Yes
• UPS Topology: Line Interactive
• Battery Quantity: 2
• Battery Size: 12 V / 9 Ah
• Battery Type: Sealed Lead-Acid Battery
• Hot Swappable: Yes
• Replacement Battery Cartridge: RB1290X2D
• Replacement Battery Cartridge Quantity: 1
• Runtime at Full Load: 3.1 min
• Runtime at Half Load: 10.2 min
• Typical Recharge Time: 8 Hours
• User Replaceable Battery: Yes
• Circuit Breaker: 15 A
• Cord Length: 6 ft (1.8 m)
• Input Frequency Range: 57 Hz – 63 Hz
• Input Plug Type: NEMA 5-15P
• Input Voltage Range: AC 88 - 144 V
• Nominal Input Voltage: 120 VAC
• Plug Style: Right Angle – 45° Offset
• Automatic Voltage Regulation: Single Boost
• On AC WaveForm: Sine Wave
• On Battery Frequency: 60 Hz ± 1%
• On Battery Voltage: 120 VAC ± 5%
• On Battery Waveform: Sine Wave
• Outlet Type: 8 – NEMA 5-15R
• Outlets – Battery & Surge Protected: 8
• Outlets – Total: 8
• Outlets – Widely Spaced: 2
• Output Power Factor: 0.7
• Overload Protection: Internal Circuitry Limiting
• Typical Transfer Time: 8 ms
• Under/Over-Voltage Correction: +11%
• VA: 1500 VA
• Watts: 1000 W
• EMI/RFI Filtration: Yes
• Network Protection RJ45: 1-in / 1-Out (10/100/1000)
• Surge Suppression (Joules): 1500 J
• Audible Alarms: Battery Mode Low Battery Overload Fault
• HID Compliant USB Port: Yes
• LCD: Multifunction LCD
• LED Indicators: Wiring Fault
• Management Cable: USB Cable
• SNMP / HTTP Remote Monitoring: Yes – with optional RMCARD205
• Serial Port: 1 Dry Contact
• Software (Free Download): PowerPanel® Business
• Form Factor: Rackmount
• Rack Height: 2U
• AC Mode Thermal Dissipation: 26.3 BTU/hr
• Operating Elevation: 0 – 10000 ft (0 – 3048 m)
• Operating Relative Humidity: 0 – 95 % (non-condensing)
• Operating Temperature: 32 – 104 °F (0 – 40 °C)
• Storage Elevation: 0 – 50000 ft (0 – 15239 m)
• Storage Temperature: 5 – 113 °F (-15 – 45 °C)
• Environmental: RoHS Compliant
• Safety: UL1778 FCC DOC Class B
• Voltage: 120 Volts
• Remote Management Interface: Serial, USB
• Input Connectors: 1
• Interface Provided: 1 x management (USB), 1 x serial - 9 pin D-Sub (DB-9)
• Battery Capacity: 9 Ah
• Battery Recharge Time: 8 Hours
• Battery Technology: Lead acid
• Battery Voltage: 12 volt
• Dataline Surge Protection: Network - RJ-45 - 1 input line / 1 output line
• Emergency Power Off: Audible alarm, Automatic Voltage Regulation (AVR), GreenPower UPS Technology, LCD display, LED indicators, Noise filtering, Overload protection
• Frequency: 57 - 63 hertz
• Input Connector Type: Power NEMA 5-15
• Load Type: At full load
• Max Run Time: 10.2 min at half load, 3.1 min at full load
• Output Connector Quantity: 8
• Power Factor (PF): 0.7
• Power Output Connectors Details: 8 x power NEMA 5-15R
• Power Provided: 1000 watt
• Provided Voltage: AC 120 volt
• Required Voltage: AC 120 volt
• Surge Suppression: Yes
• Switching Capacity: 4 millisecond
• UPS Technology: Line interactive
• Voltage Provided Margin: ± 5%
• Waveform Type: Sine Wave
• Battery Run Time (Up To): 3.1 minute (time unit)
• Software Type: PowerPanel Business Edition
• Form Factor (Power Device): Rack-mountable
• Max Operating Temperature: 104 degree Fahrenheit
• Min Operating Temperature: 32 degree Fahrenheit
• Operating Humidity: 0 - 95%
• Protection Type: Circuit breaker
• Packaged Quantity: 1
• Product Type: UPS
• Subcategory: UPS
• Cables: Power cable 6 ft, USB cable
• Height: 3.4 inch
• Height (Rack Units): 2
• Width: 17 inch
• Depth: 10.5 inch
• Material: ABS Plastic
• Rack Mountable: 2U Rack Mountable
• Amperage: 15A
• Output Connection: NEMA 5-15R
• Runtime - Half Load: 10.2 Minutes
• Runtime - Full Load: 3.1 Minutes
• RJ-45 Network Port: Yes
• Battery Cell Composition: Sealed Lead Acid
