Cutler & Hammer XTOB032CC1 Overload Relay 24-32 AMPS

Product Description

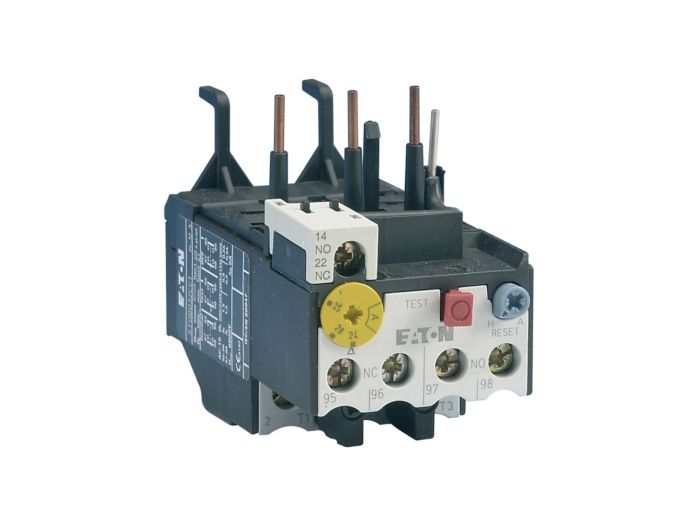

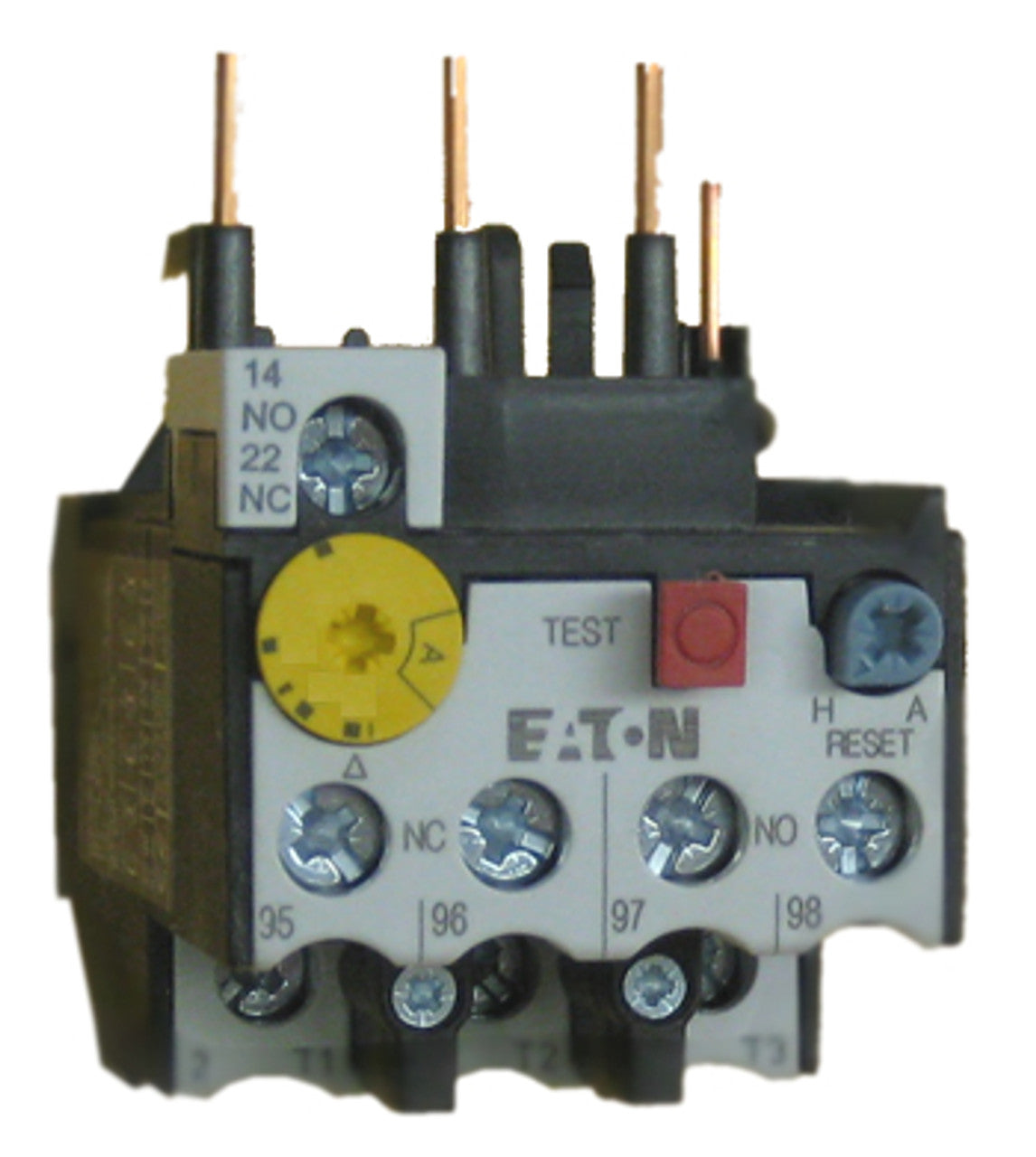

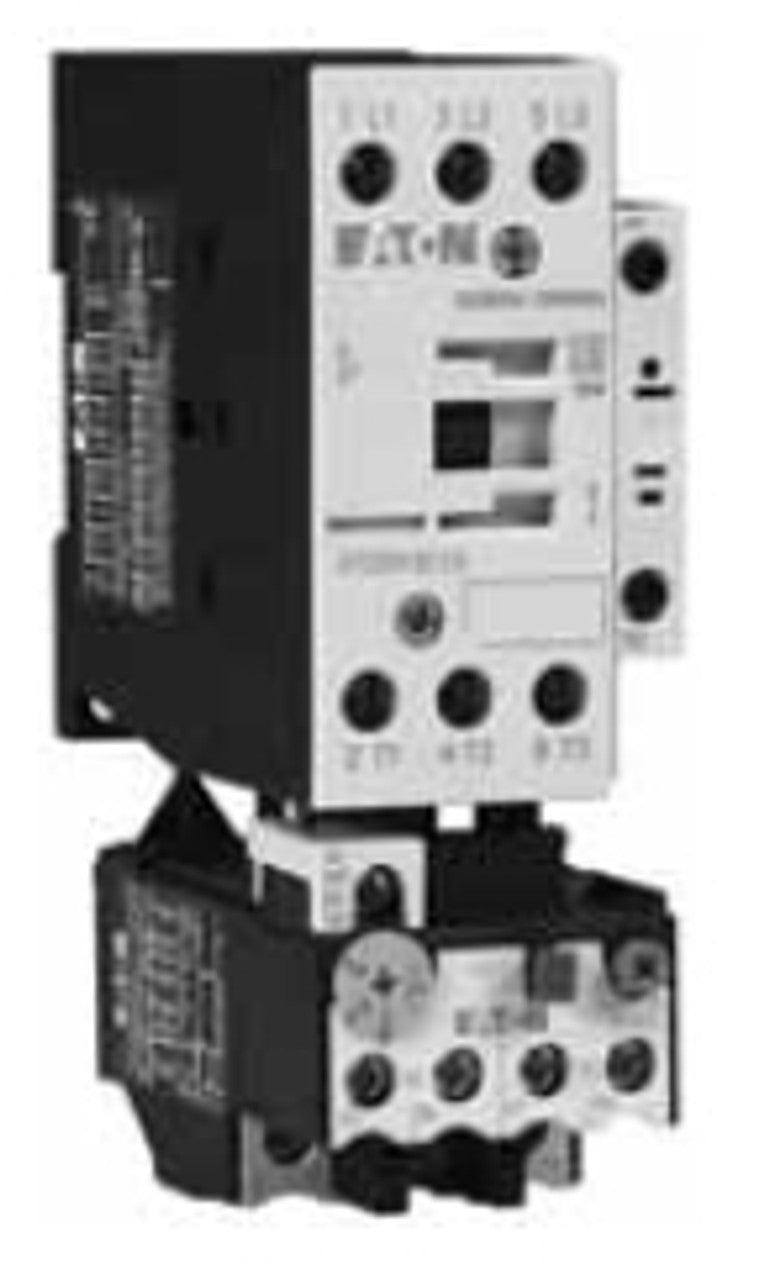

The Cutler & Hammer XTOB032CC1 is a thermal overload relay that operates within a range of twenty-four to thirty-two AMPS. This relay includes one normally open and one normally closed auxiliary contact, supports both manual and automatic reset functions, and offers phase loss protection. It features Class 10 tripping, which enables quick response times for motor protection. This unit mounts directly onto any Eaton XTCE025C or XTCE032C three-pole contactor.

• Adjustable from 24 to 32 AMPS
• Features 1 N.O. and 1 N.C. auxiliaries
• Provides Class 10 tripping (trips in ten seconds or less)

Product Highlights

The Cutler & Hammer XTOB032CC1 delivers effective motor protection with adjustable overload settings and multiple reset options.

Product Information

Standard Information

• Catalog Number: XTOB032CC1
• Manufacturer: Cutler Hammer, Div of Eaton

Technical Specifications

• AMP Range: 24 to 32 AMPS
• Connects to: XTCE025C / XTCE032C
• Auxiliaries: 1 N.O. / 1 N.C.
• Reset: Manual or Automatic
• Trip Class: 10 (10 seconds or less)
• Product Length: 3.27 in
• Product Height: 1.89 in
• Product Width: 1.77 in
• Compliances: CE Marked, RoHS Compliant, ATEX Compliant
• Certifications: UL Listed, CSA Certified, IEC 60947, EN 60947
• Product Type: Bimetallic overload relay
• Used with: 25-32A contactor
• Frame size: 45 mm
• Contact configuration: 1 NO, 1 NC
• Mounting: Direct
• Current Rating: 24-32 A
• Poles: 3
• Output Contacts: 1NO, 1NC
• Ambient Temperature: -13-131 °F
• Approvals: ATEX, CE, CSA, UL
• Comments: Direct Mounting to XT Series C Frame Contactor
