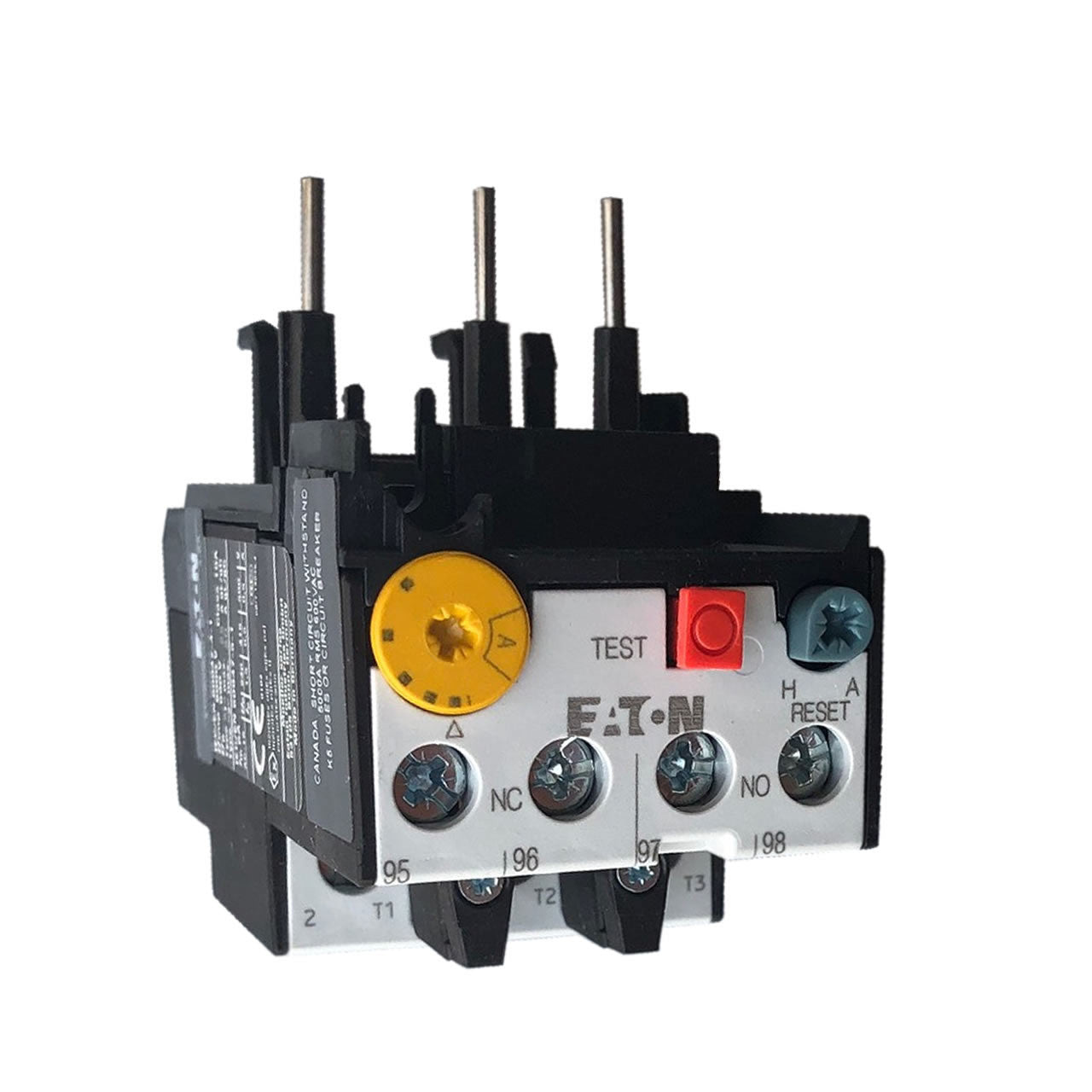

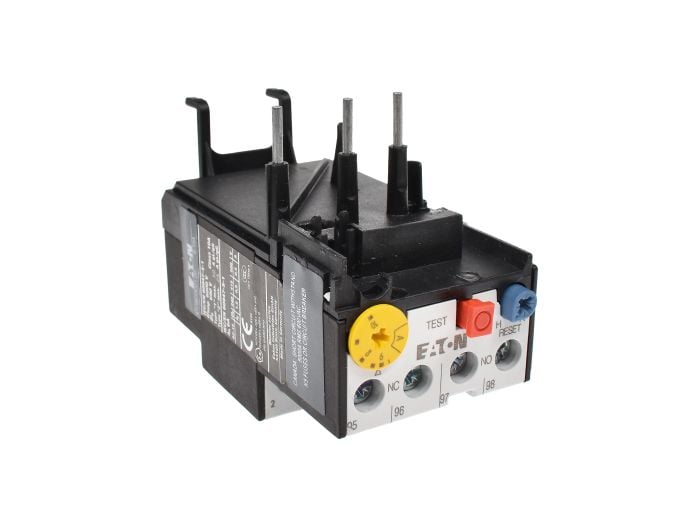

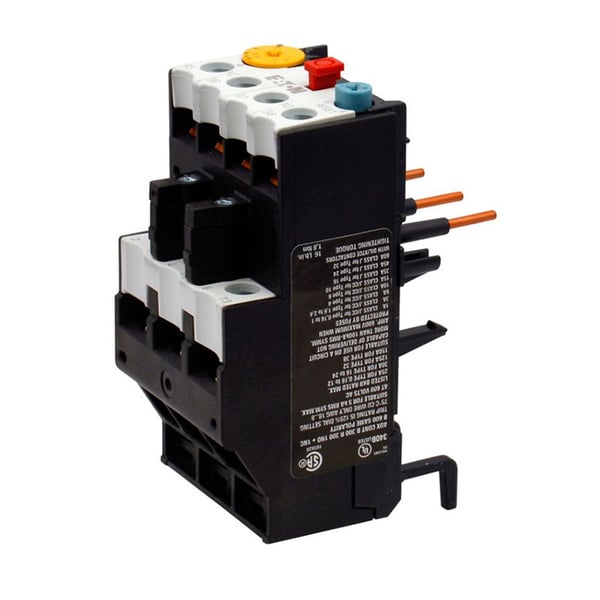

Cutler & Hammer XTOB010CC1DP XT IEC Bimetallic Overload Relay 6-10A

Product Description

The Cutler & Hammer XTOB010CC1DP XT IEC bimetallic overload relay is designed for reliable motor protection. It is suitable for use with contactors rated at fifteen to twenty-five amps. The overload relay features a Class 10 trip and offers flexible operation with both automatic and manual reset options.

• Provides motor overcurrent protection
• Equipped with a test button for simulating overcurrent situations
• Offers both normally open and normally closed output contacts

Product Highlights

This overload relay is essential for any system requiring motor protection and conforms to various industry standards.

Product Information

Standard Information

• Manufacturer Part Number: XTOB010CC1DP
• Brand: Cutler & Hammer

Technical Specifications

• Current Rating: 6-10 A
• Poles: 3
• Output Contacts: 1NO, 1NC
• Trip Class: Class 10
• Reset Type: Automatic, Manual
• Connection Type: Wire
• Ambient Temperature: -13-131 °F
• Approvals: ATEX, CE, CSA, UL
