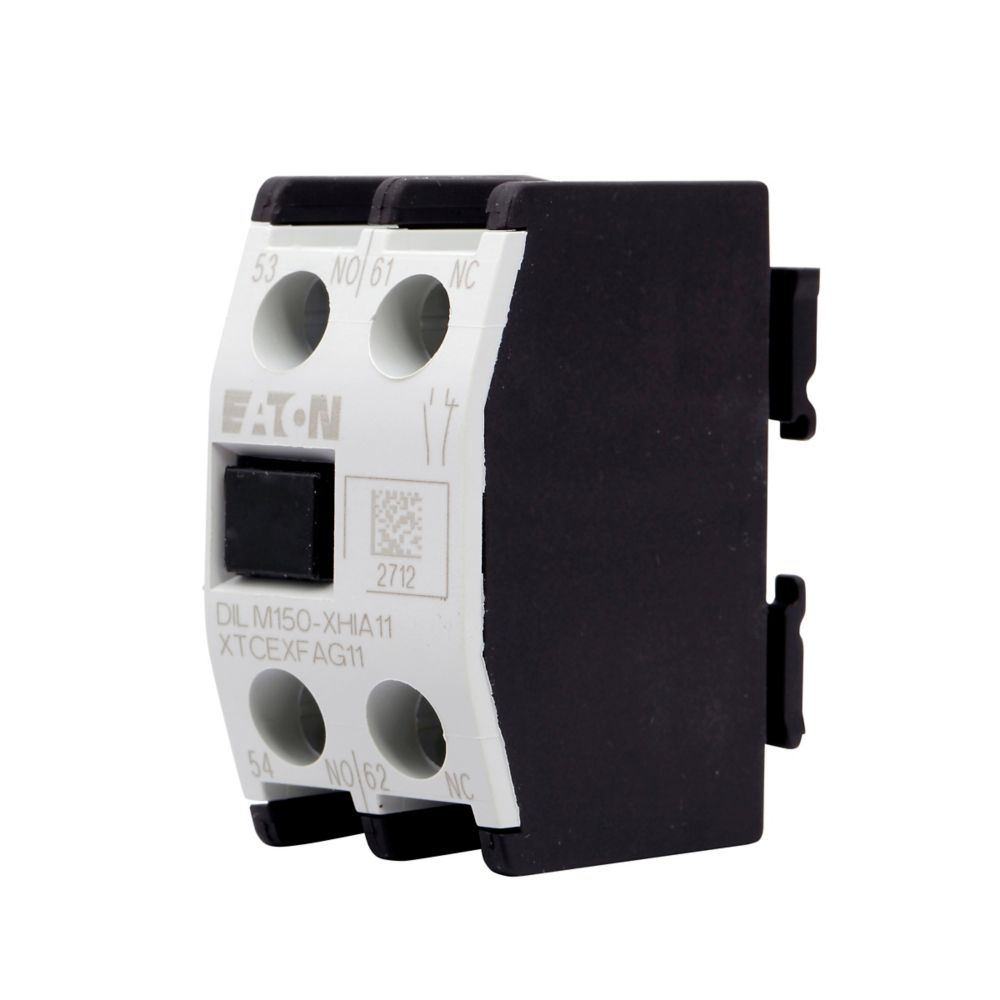

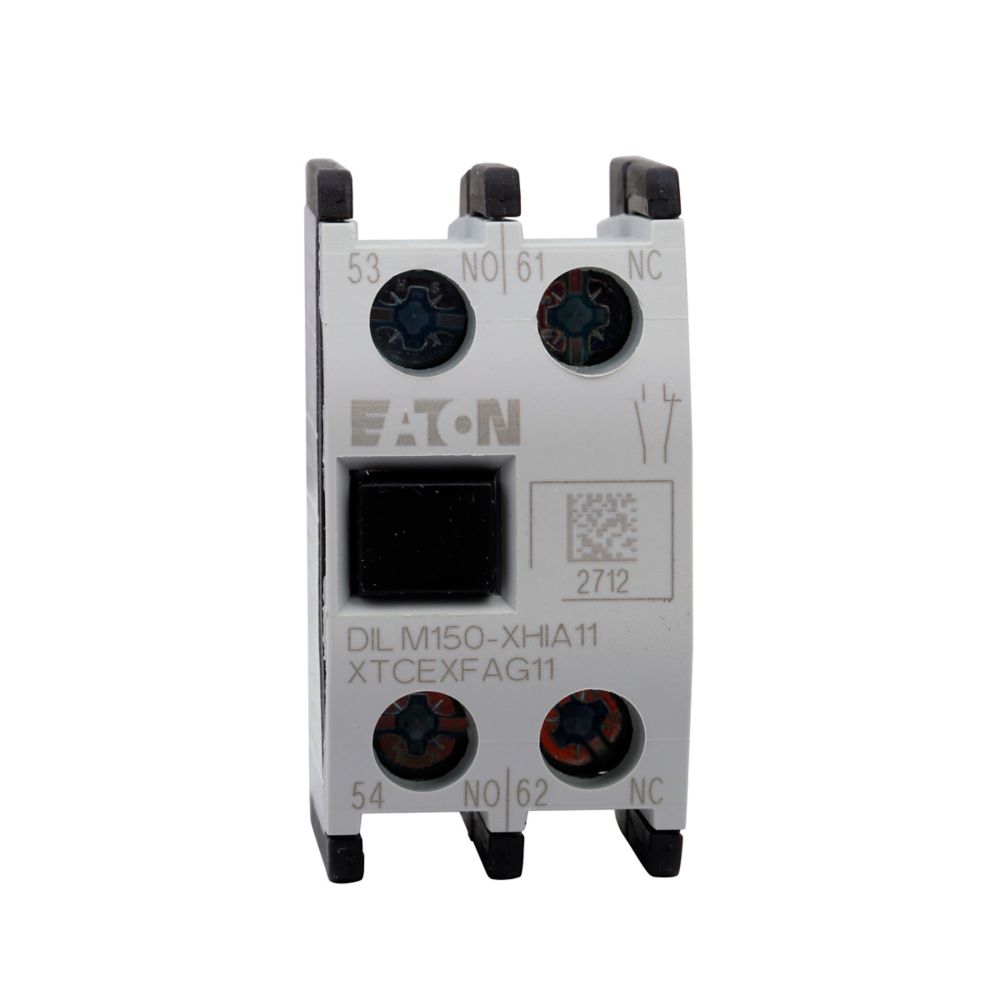

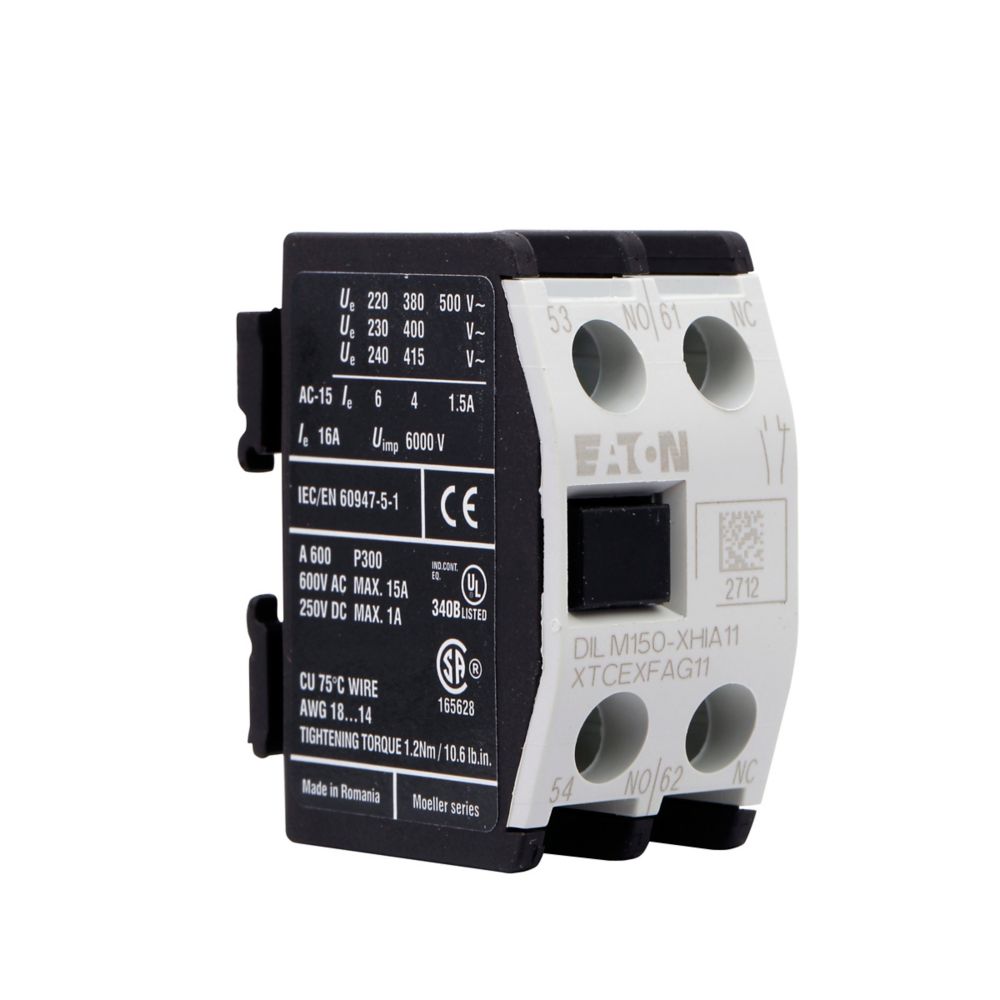

Cutler & Hammer XTCEXFBG11 Auxiliary Contact XT Series

Product Description

The Cutler & Hammer XTCEXFBG11 is an auxiliary contact designed for use with Eaton XT Series Frame D - G Contactors. This component includes a two-pole configuration featuring one normally open and one normally closed contact. The contact comes with screw terminals and is intended for front mounting, providing ease of installation.

• Designed for Eaton XT Series Frame D - G Contactors
• Two-pole setup with one normally open and one normally closed contact
• Screw terminals for secure connections

Product Highlights

The XTCEXFBG11 serves as a reliable accessory for enhancing the functionality of contactors in various applications.

Product Information

Standard Information

• Accessory Type: Auxiliary Contact
• Manufacturer: Eaton - Cutler Hammer

Technical Specifications

• Contact Form: SPST-NC + SPST-NO
• Number of Contacts: 1NO-1NC
• Number of Poles: 2
• Amperage Rating: 16 A
• Voltage Rating: 600 VAC/220 VDC
• Mounting Style: Front Mount
• Compatible Contactor Amperage: 40 A; 50 A; 65 A; 80 A; 95 A; 115 A; 150 A
• Approvals: CE Certified, CSA Certified, CCC Certified, ATEX Certified, IEC 60947, EN 60947, UL Listed
