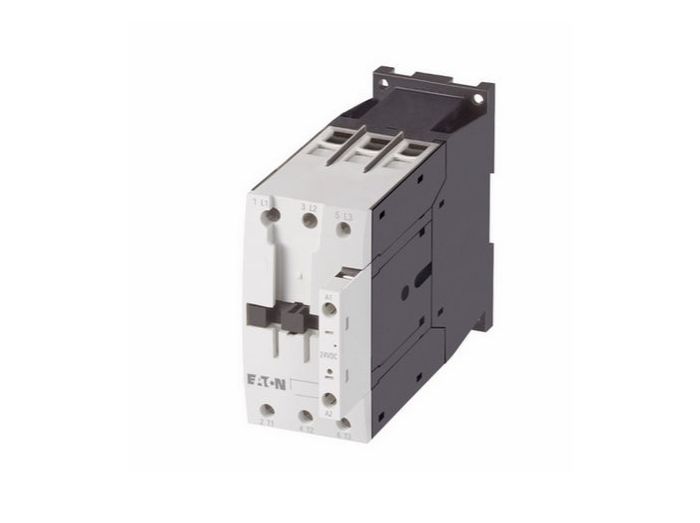

Cutler & Hammer XTCE065D00TD Eaton XT IEC Contactor 65A

Product Description

The CUTLER & HAMMER XTCE065D00TD Eaton XT IEC Contactor is a 65A contactor with a 24-27 Vdc coil voltage and screw terminals. This three-pole, non-reversing contactor is designed for full voltage non-reversing (FVNR) applications. It features a compact, space-saving design and is easy to install for automation and process control applications.

• 65A Amperage Rating
• 24-27 Vdc Coil Voltage
• Screw Terminals

Product Highlights

This IEC contactor is ideal for switching motor loads and provides an efficient solution for various applications. It is RoHS and CE compliant, UL Listed, and CSA Certified.

Product Information

Standard Information

• Brand: CUTLER & HAMMER
• Manufacturer Part Number: XTCE065D00TD

Technical Specifications

• SKU: XTCE065D00TD
• Product Name: Eaton XT IEC contactor
• Catalog Number: XTCE065D00TD
• EAN: 4015082779085
• Product Length/Depth: 5.77952756 in
• Product Height: 4.09448819 in
• Product Width: 2.16535433 in
• Compliances: RoHS Compliant, CE Marked
• Certifications: UL Listed, CSA Certified, IEC 60947, EN 60947
• Catalog Notes: Screw terminals (6-65A); 5 mm (80-150A); no lugs (185-2000A)
• Product Type: Contactors
• Amperage Rating: 65A
• HP rating - max: 5, 10, 15/ 20, 25, 50, 60 hp (1/3PH @115,200,230/200,230,460,575 V)
• Number of Poles: 3
• Type: Full voltage non-reversing contactor
• Frame size: 55 mm
• Terminals: Screw terminals
• Coil Voltage: 24-27 Vdc
• Contact configuration: 0 NO, 0 NC
• Continuous ampere rating: 65 A
• Series: XT IEC
• Operation: Non-reversing
• Load Current Inductive: 65A
• Relay Mounting: DIN Rail, Panel
• Operating Voltage: 690VAC
• Contact Configuration: 3PST
• Switching Power AC3: 60hp
• Switching Current AC1: 98A
• Coil Voltage VDC Nom: 27V
• Switching Power AC1: 15hp
• Load Current Resistive: 98A
• Switching Current AC3: 65A
• Product Range: XT Series
• Manufacturer Part Number: XTCE065D00TD
• Manufacturer: Eaton - Cutler Hammer
• UNSPSC Code: 39120000
• Unit of Measure: EA
• Mounting Type: DIN Rail/Panel Mount
• Control Voltage: 24 V
• Contact Current Rating: 65 A
• Description: Eaton XT IEC contactor, 65A, 24-27 Vdc, 0NO-0NC, 65A, Frame D, 55 mm, 5, 10, 15/ 20, 25, 50, 60 hp 1/3PH 115, 200, 230/200, 230, 460, 575 V, Three-pole, Non-reversing,, Screw terminals, FVNR
• Nominal Coil Voltage: 24 VDC
• Coil Type: Magnetic
• Poles: 3NO
• Frame Size: D
• Auxiliary Contact: None
• Termination: Screw
• Overload Relays: C396, XTOB, XTOT
• General Purpose (AC1): 80 A
• UL Motor Switching (AC3): 65 A
