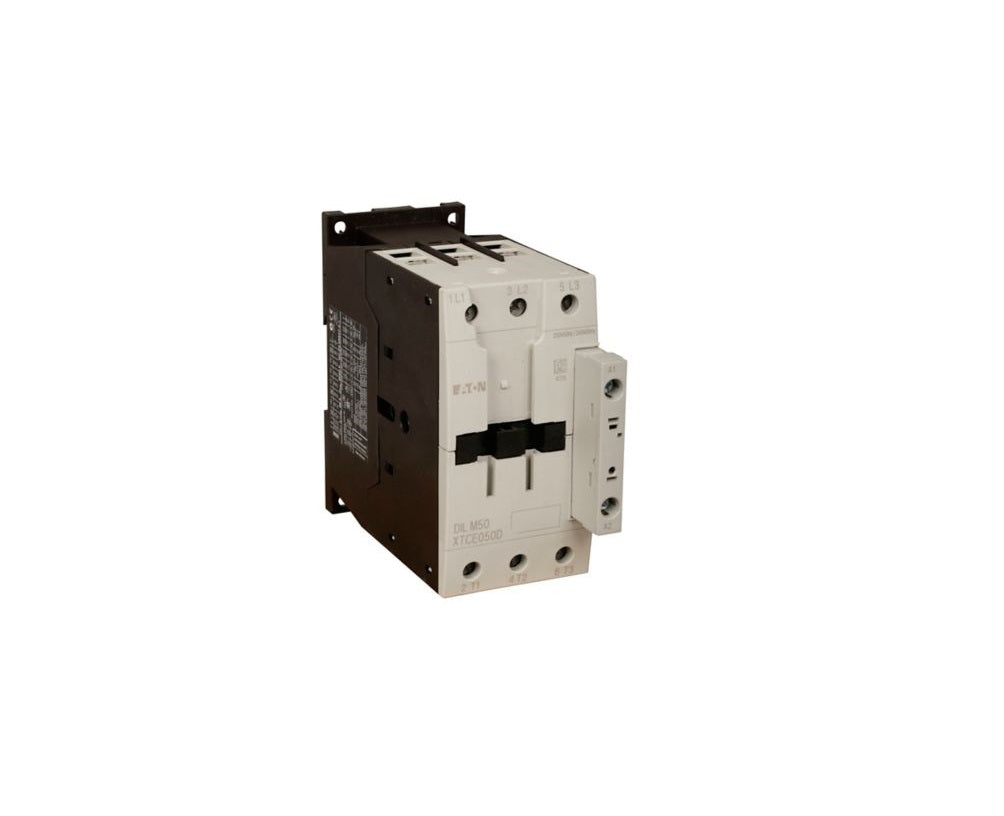

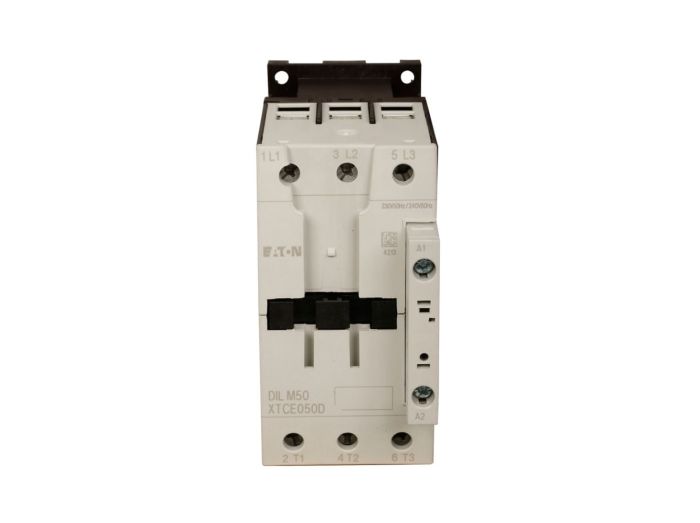

Cutler Hammer XTCE050DS1TD Cont 3P FVNR 50A

Product Description

The Cutler Hammer XTCE050DS1TD is a three-pole IEC contactor designed for general purpose motor control. It supports a rated current of fifty amps and operates at a coil voltage of twenty-four to twenty-seven volts DC. This contactor features one normally open and one normally closed auxiliary contact and uses screw terminals for secure connections.

• Rated for fifty amps AC1 applications
• Coil voltage range of twenty-four to twenty-seven volts DC
• Includes three normally open poles

Product Highlights

The XTCE050DS1TD is ideal for various switching applications and motor control tasks.

Product Information

Standard Information

• Manufacturer Part Number: XTCE050DS1TD
• Manufacturer: Cutler Hammer, Div of Eaton

Technical Specifications

• Family Series: Cutler Hammer, Div of Eaton Contactors
• Type: AC Non-Reversing IEC
• Coil Voltage: 24-27 VDC
• Poles: 3NO
• General Purpose (AC1): 50 A
• Net Weight: 2.4 lbs
• Gross Weight: 2.62 lbs
• Brand: Cutler Hammer
