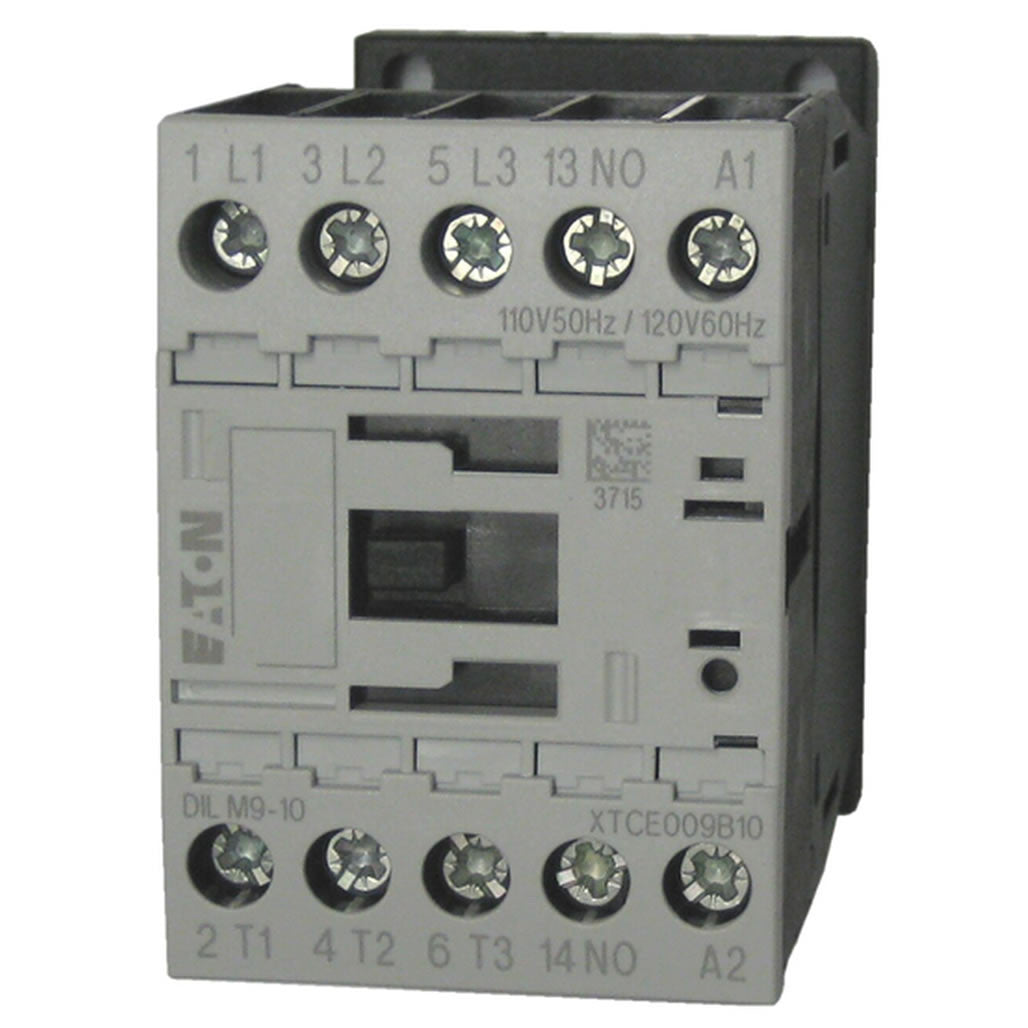

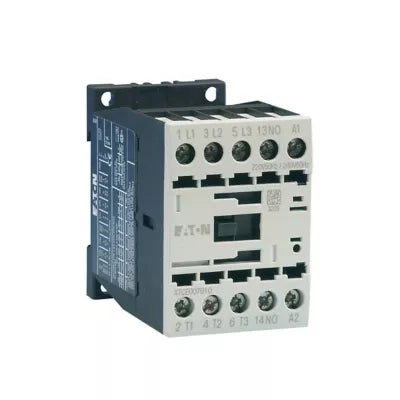

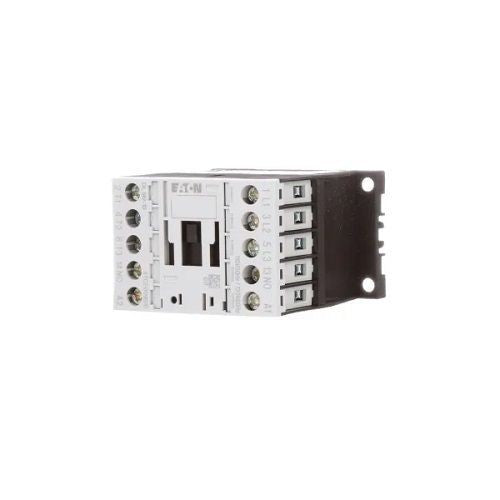

Cutler & Hammer XTCE009B10A Contactor 9A

Product Description

The CUTLER & HAMMER XTCE009B10A is an IEC contactor with a 9A amperage rating. This three-pole contactor is designed for full voltage non-reversing applications and features screw terminals. It is suitable for use in systems with 110 Vac 50 Hz or 120 Vac 60 Hz voltage. The contactor includes 1 N.O. auxiliary contact.

• IEC Contactor
• Full voltage non-reversing contactor
• 9 Amp, 3-Pole, 600V Rated

Product Highlights

The CUTLER & HAMMER XTCE009B10A is a reliable contactor for motor control and power switching applications.

Product Information

Standard Information

• Brand: CUTLER & HAMMER
• Manufacturer Part Number: XTCE009B10A

Technical Specifications

• Amperage: 9A
• Voltage: 110 Vac 50 Hz; 120 Vac 60 Hz
• Poles: Three-pole
• Terminal Type: Screw terminals
• Frequency: 50-60 Hz
• Contact Configuration: 1NO
• Brand: Cutler & Hammer
• Manufacturer: Cutler Hammer
• MPN: XTCE009B10A
• Model / MPN: XTCE009B10A
• Catalog Number: XTCE009B10A
• UPC: 786689005269
• EAN: 4015082766870
• Product Height: 2 in
• Compliances: CE Marked, RoHS Compliant
• Certifications: UL Listed, CSA Certified, IEC 60947, EN 60947
• Product Type: Contactors
• HP rating - max: 0.5, 1, 1.25/ 3, 3, 5, 7.5 hp (1/3PH @115,200,230/200,230,460,575 V)
• Number of poles: 3
• Type: Full voltage non-reversing contactor
• Frequency rating: 50-60 Hz
• Terminals: Screw terminals
• Coil Voltage: 120 V
• Continuous ampere rating: 9 A
• Series: XT
• Operation: Non-reversing
• AMP Rating: 9 AMP AC-3 20 AMP AC-1
• Horsepower: 5 H.P. at 460 volt 3 H.P. at 230 volt
• Auxiliary: 1 normally open (N.O.)
• Mounting: Screw or DIN rail
• Mounting Type: DIN Rail Mount
