Cutler & Hammer V48M28T4516CU V48M28T4516CU 45KVA TFM

Product Description

The CUTLER & HAMMER V48M28T4516CU general purpose ventilated transformer is DOE 2016 and NEMA 2 compliant. This three-phase transformer operates at 60 Hz and features a 480 Delta V primary voltage and a 208Y/120 Vac secondary voltage. It adheres to NEMA ST-20 standards and includes taps at 2 at +2.5PRCT and 4 at -2.5PRCT.

• General purpose ventilated transformer
• DOE 2016 compliant
• NEMA 2 rated

Product Highlights

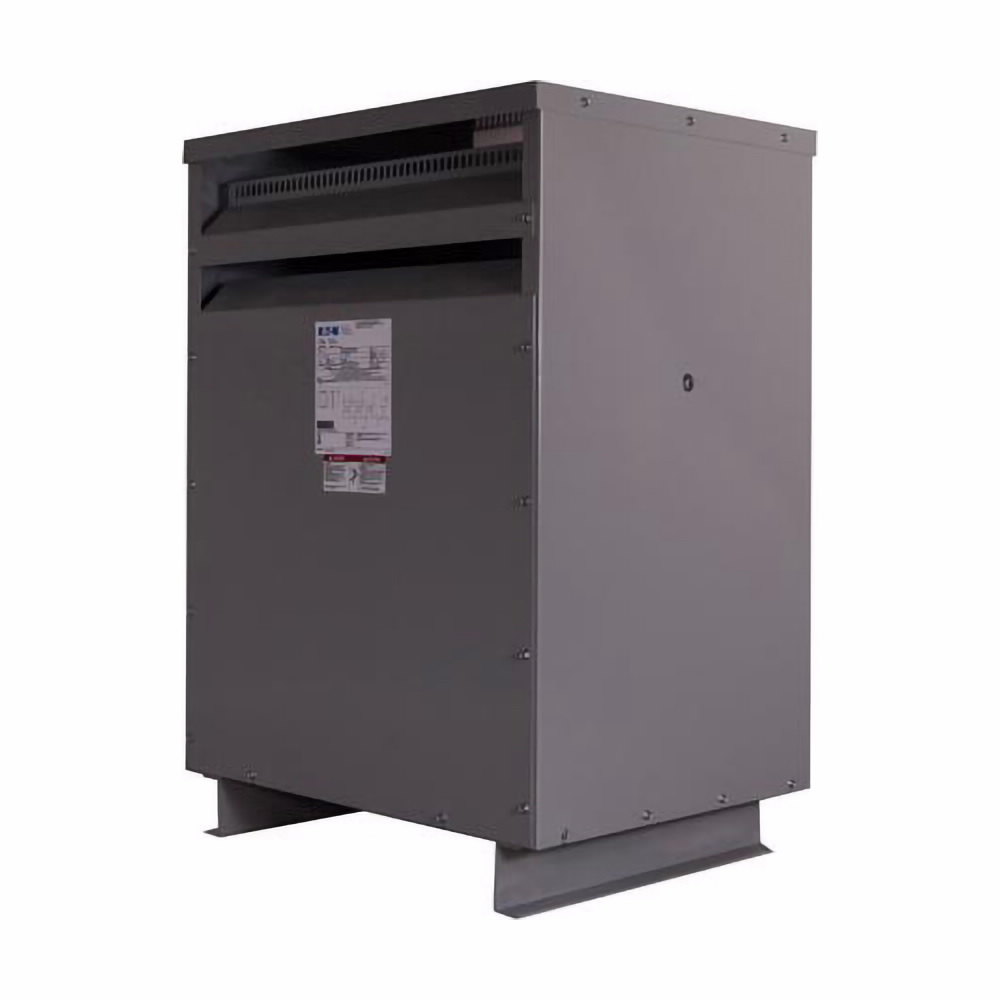

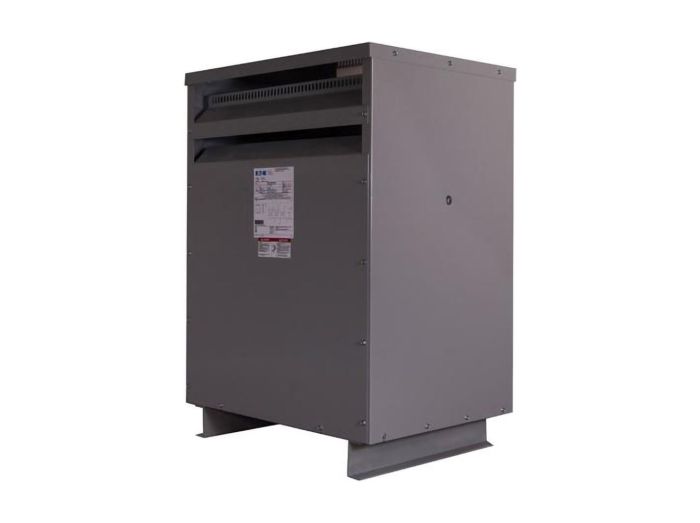

The Cutler & Hammer V48M28T4516CU is an energy-efficient ventilated type DT-3 transformer with copper windings suitable for floor or wall mounting.

Product Information

Standard Information

• Brand: CUTLER & HAMMER
• Manufacturer Part Number: V48M28T4516CU

Technical Specifications

• kVA: 45
• Phase: Three-phase
• Primary Voltage: 480 V
• Secondary Voltage: 208Y/120 V
• Standards: NEMA ST-20
• Taps: 2 at +2.5PRCT; 4 at -2.5PRCT
• Insulation Class: 220DEGC
• Temperature Rise: 150DEGC
• Frequency: 60 Hz
• NEMA: 2
• DOE: 2016
• Product Name: Eaton General purpose ventilated transformer
• Catalog Number: V48M28T4516CU
• UPC: 786680192005
• Product Length/Depth: 21.13 in
• Product Height: 36.88 in
• Product Width: 24.88 in
• Certifications: UL Listed
• Product Type: Ventilated transformer
• Coil material: Copper
• Enclosure: NEMA 2
• Material: Copper windings
• Mounting: Floor or wall, upright only
• Type: Energy-efficient ventilated type DT-3 transformer
• Efficiency: 10 CFR Part 431-2016 (DOE 2016)
• Frequency rating: 60 Hz
• Kva Rating: 45 kVA
• Sound Level: NEMA ST-20
• Temperature rise: 150 °C rise
• Volt ampere rating: 45 kVA
• Voltage rating: 480 Vac-208Y/120 Vac
• Manufacturer: Cutler Hammer, Div of Eaton
• Family Series: Cutler Hammer, Div of Eaton Transformers
• VA Rating: 45,000 VA
• Enclosed: Yes
• NEMA Rating: NEMA 2
• Number of Phases: 3 Phase
• Temperature Rating: 150 degrees C
• Voltage: 120 Volt
• Mounting Type: Floor Or Wall, Upright Only
• Applications: Generation - Conventional Energy - Conventional Energy
