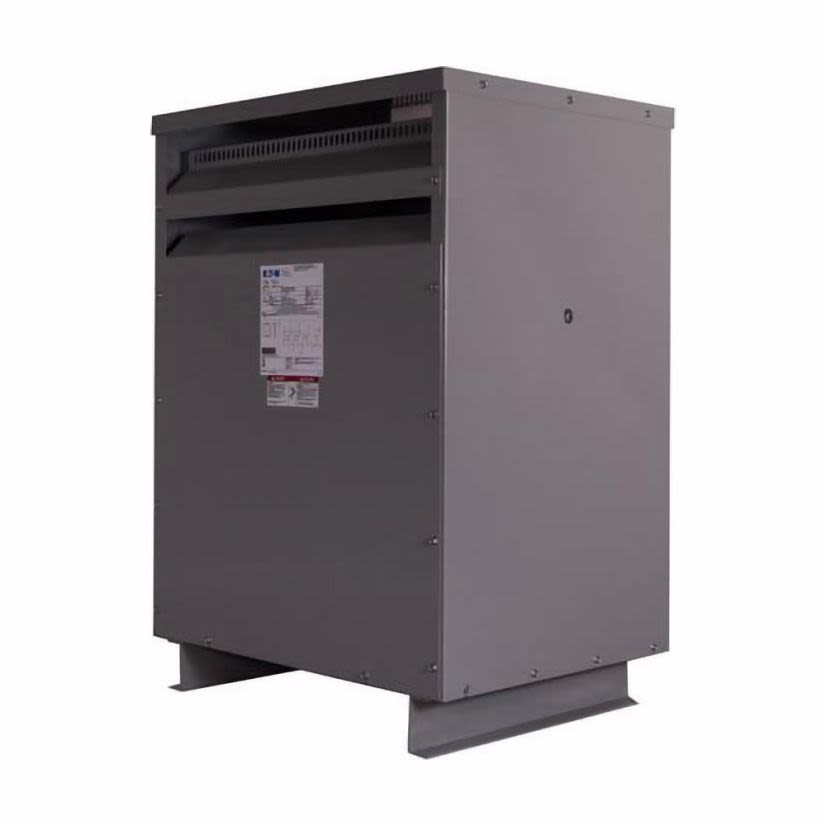

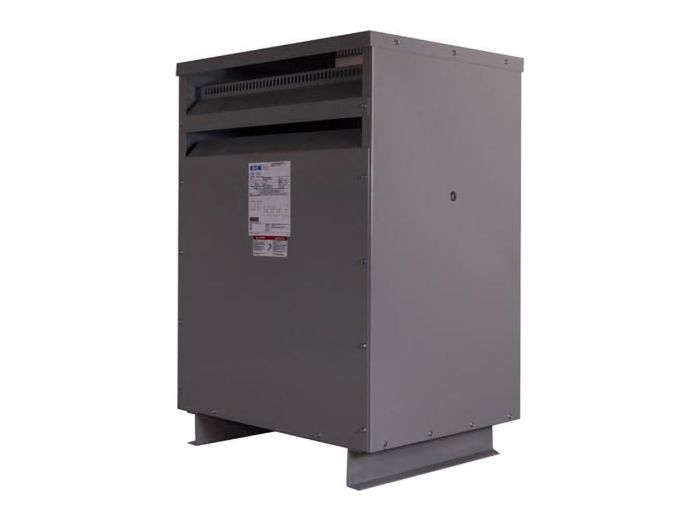

Cutler & Hammer V48M22T3016 30KVA XFMR 3PH 480V

Product Description

The CUTLER & HAMMER V48M22T3016 is a general purpose ventilated transformer with fungus proofing and aluminum windings. DOE 2016 compliant and NEMA 2 rated, this 3-phase transformer is suitable for floor or wall mounting in an upright position. It features a primary voltage of 480V delta and a secondary voltage of 240V delta with a 120V midtap, adhering to NEMA ST-20 standards.

• General purpose ventilated transformer
• Fungus proof and features aluminum windings
• Suitable for floor or wall mounting in an upright position

Product Highlights

This transformer is DOE 2016 compliant and NEMA 2 rated, ensuring energy efficiency and protection.

Product Information

Standard Information

• Brand: CUTLER & HAMMER
• Manufacturer Part Number: V48M22T3016
• Country of Origin: MX

Technical Specifications

• Brand: CUTLER & HAMMER
• MPN: V48M22T3016
• kVA: 30
• Phase: 3-ph
• Primary Voltage: 480V delta
• Secondary Voltage: 240V delta w/120V midtap
• NEMA Standard: NEMA ST-20
• Product Length/Depth: 21.13 in
• Product Height: 36.88 in
• Product Width: 24.88 in
• Compliances: DOE2016 Efficient
• Certifications: UL Listed
• Product Type: Ventilated transformer
• Coil material: Aluminum
• Enclosure: NEMA 2
• Frame: FR940
• Insulation Type: Class T/220 deg C
• Material: Al windings
• Mounting Type: Floor/Upright/Wall
• Tap size: 2 at +2.5%, 4 at -2.5%
• Type: Energy-efficient ventilated dry-type transformer
• Wiring connection: 280B
• Efficiency: DOE2016
• Frequency rating: 60 Hz
• Temperature rise: 150 °C rise
• Volt ampere rating: 30 kVA
• Voltage rating: 480 Vac-240 Vac/120 Vac
• Weathershield: WS58
• VA Rating: 30,000 VA
• Enclosed: Yes
• NEMA Rating: NEMA 2
• Number of Taps: 6
• Power Rating: 30 kVA
• Temperature Rating: 150 deg C
