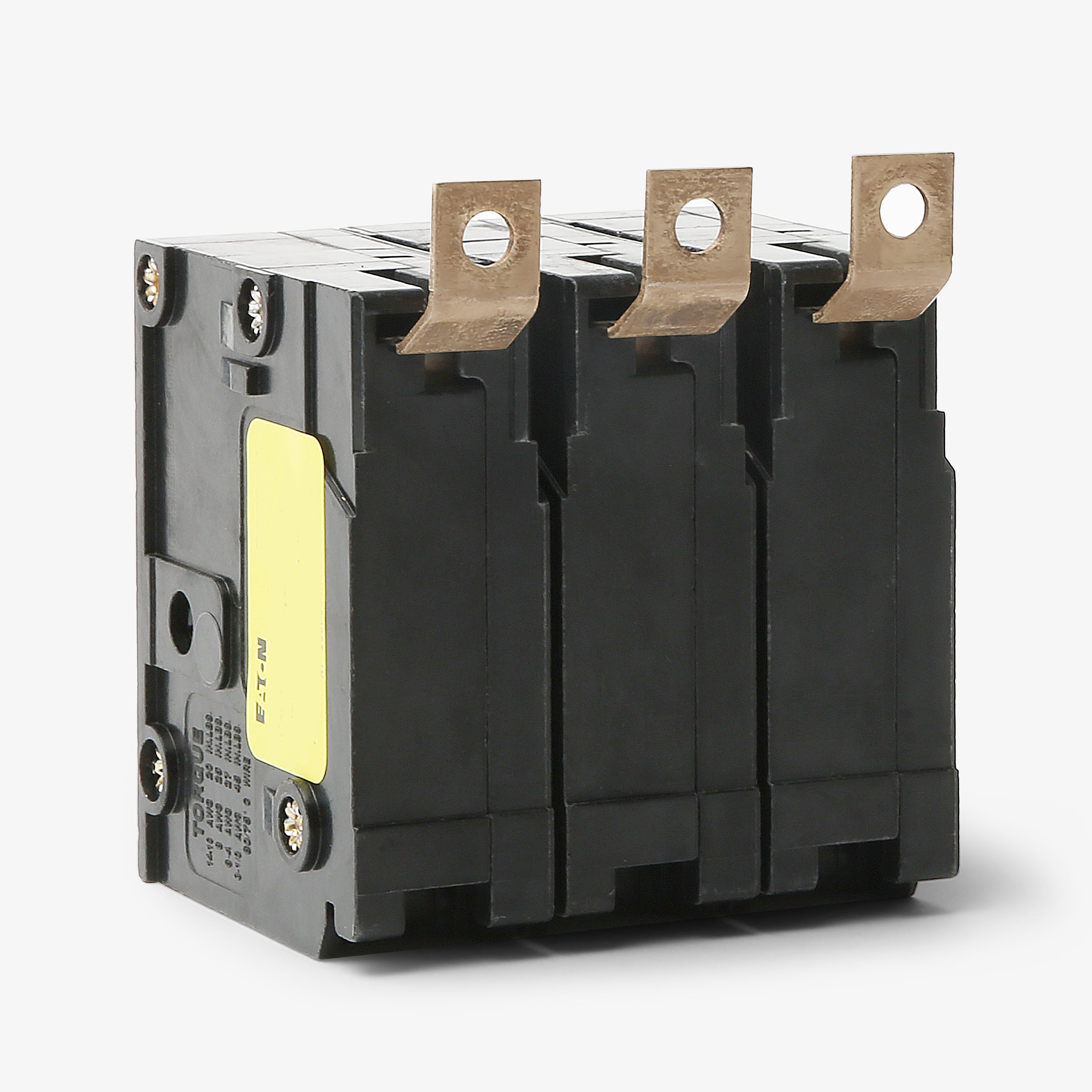

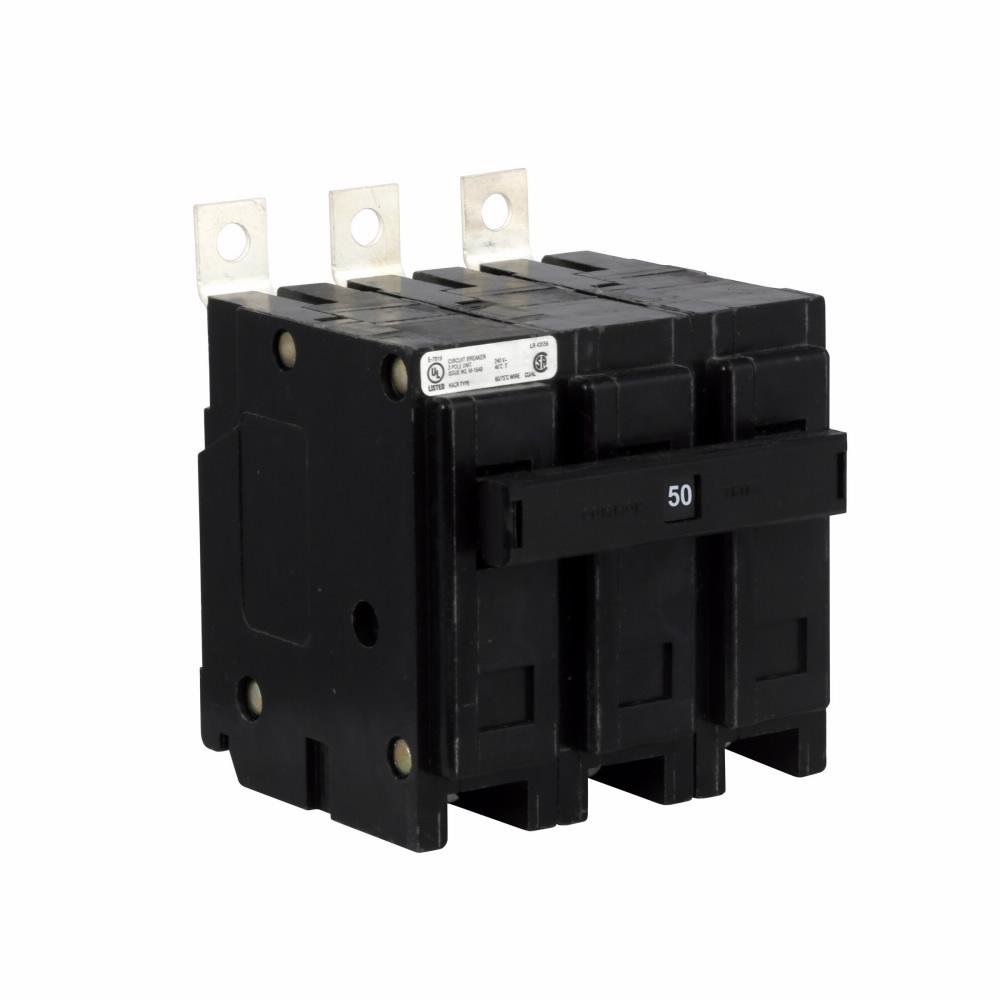

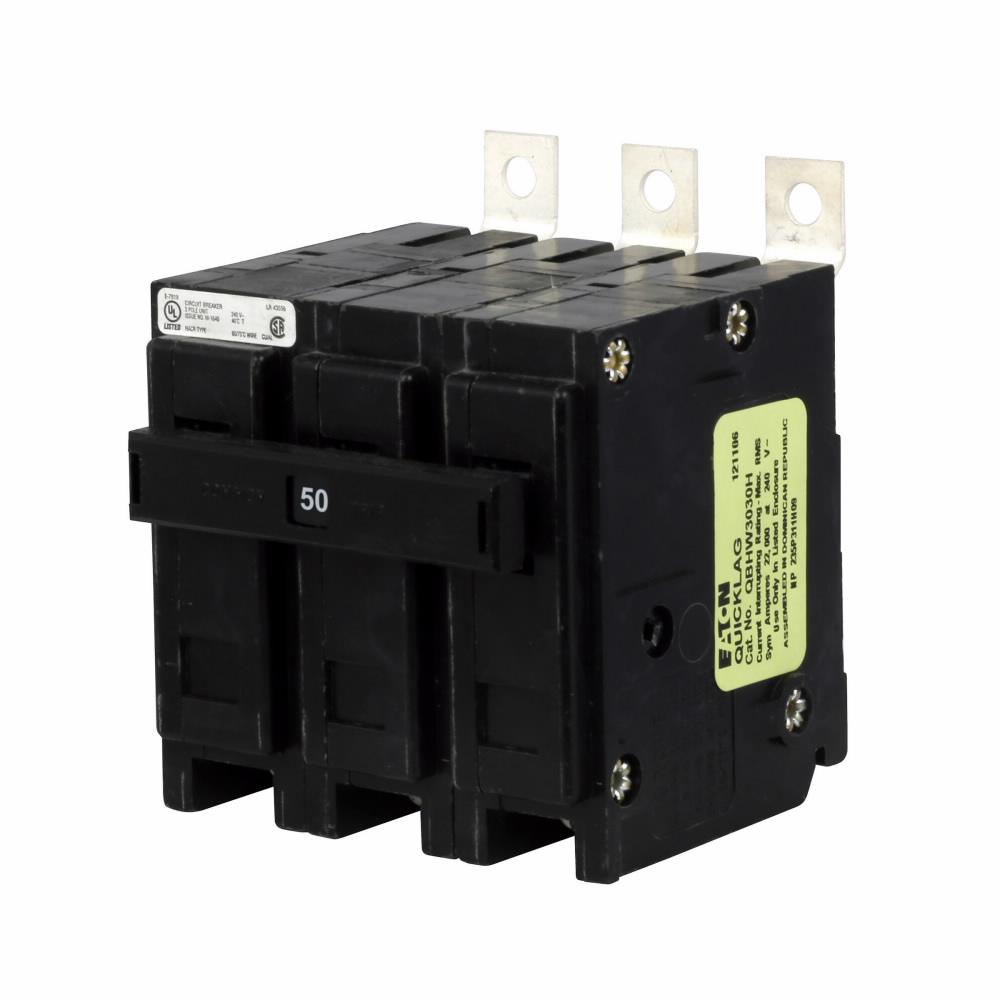

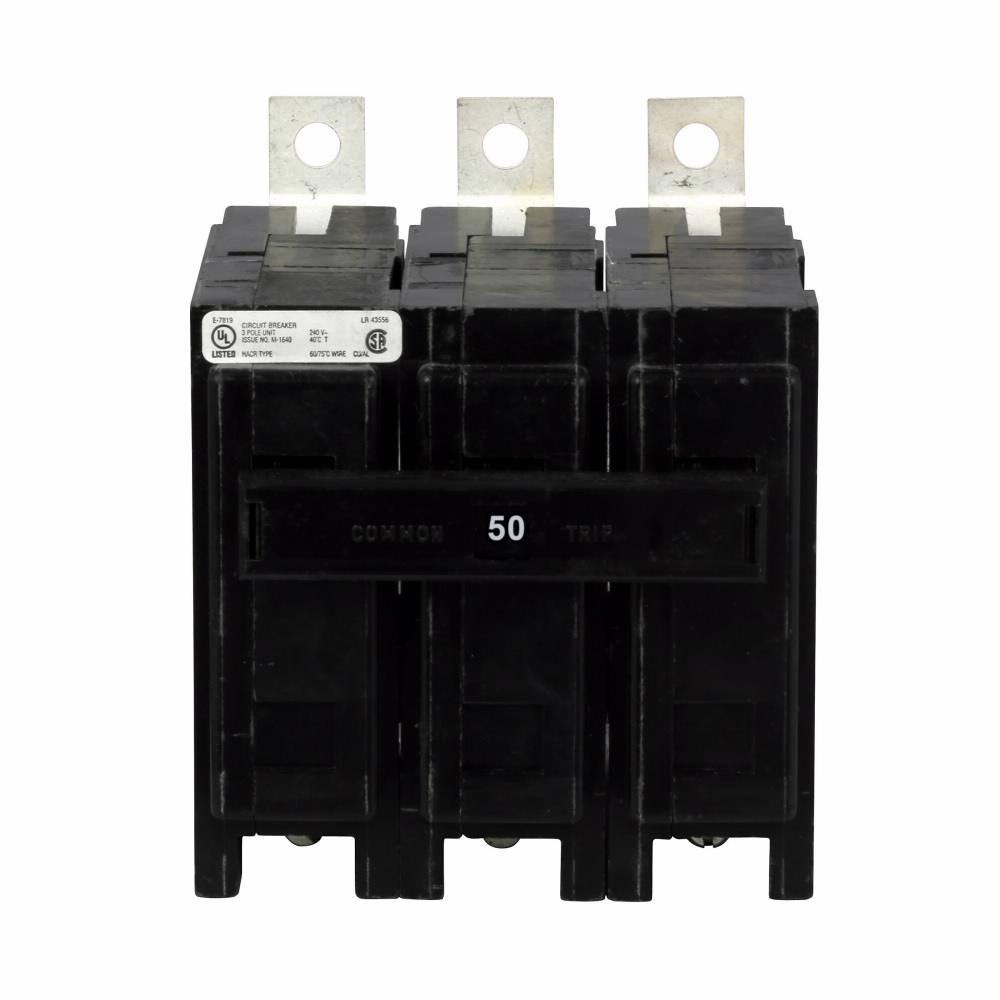

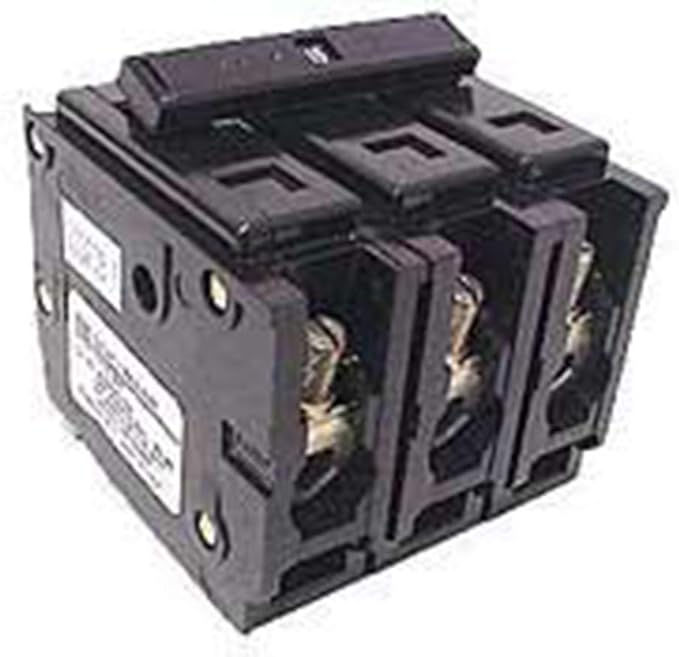

Cutler & Hammer QBHW3050H 3 Pole Circuit Breaker 50A

Product Description

The CUTLER & HAMMER QBHW3050H is a 3-pole, thermal-magnetic miniature circuit breaker. It has a current rating of 50 amps at 40 degrees Celsius and a voltage rating of 240 VAC. This Quicklag circuit breaker has an interrupt current rating of 22kAIC and features a bolt-on type connection, suitable for commercial and light industrial applications.

• 3-pole configuration
• Thermal-magnetic miniature circuit breaker
• Bolt-on type connection

Product Highlights

The CUTLER & HAMMER QBHW3050H circuit breaker ensures direct power feed and energy efficiency, and is HACR approved for air conditioning, heating, and refrigeration applications.

Product Information

Standard Information

• Brand: CUTLER & HAMMER
• Manufacturer Part Number: QBHW3050H

Technical Specifications

• Brand: Eaton/Cutler-Hammer
• Series: QBHW
• Amperage: 50A
• Mounting Type: Bolt-On
• Mpn: QBHW3050H
• Upc: 786679393451
• Gtin: 786679393451
• Product Name: Quicklag Industrial Thermal-Magnetic Circuit Breaker
• Product Length: 3.8 IN
• Product Height: 4.7 IN
• Product Width: 3.2 IN
• Certifications: CSA Certified, UL Listed
• Catalog Notes: HACR rated
• Interrupt Rating: 22 kAIC
• Type: Quicklag
• Circuit Breaker Type: QBHW
• Voltage Rating: 240V
• Trip Type: Thermal Magnetic Trip, Fixed Trip
• Number Of Poles: Three-pole
• Manufacturer: Eaton Cutler-Hammer
• Poles: 3 Pole
• Voltage: 240 VAC
• Interrupting Rating: 22k rated @ 240VAC
• Approvals: UL, CSA. CE
• Application: Commercial
• Wire Size: 8 To 1/0 AWG (Aluminum/Copper, Load)
• Additional Approvals: UL 489, HACR approve for air conditioning, heating and refrigeration applications, CSA
• Model: BAB BA, QBHW
• Frame Type: QBHW
• Amps: 50
• Voltage Type: AC
