Cutler & Hammer PDG13F0025TFFJ Pwr Defense Pd 25A

Product Description

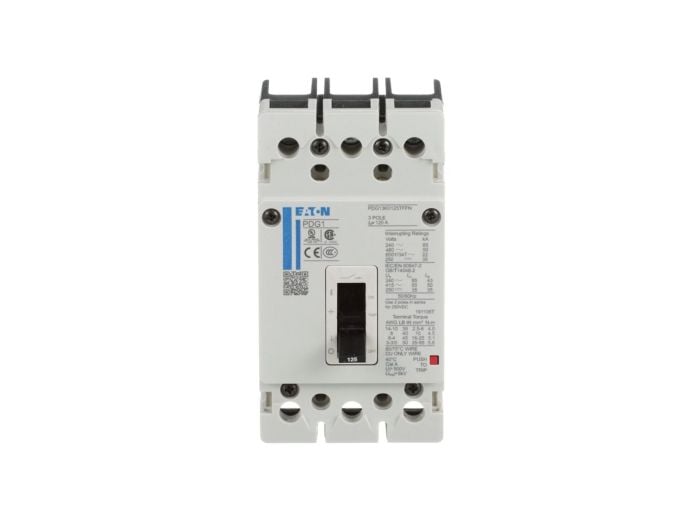

The CUTLER & HAMMER PDG13F0025TFFJ is an Eaton Power Defense molded case circuit breaker. Globally rated with a Frame 1, this three-pole breaker has a current rating of 25A and a 25kA/480V interrupt rating. It features T-M (Fxd-Fxd) TU and standard line and load (PDG1X3T125).

• Eaton Power Defense molded case circuit breaker
• Globally Rated
• Frame 1
• Three Pole
• 25A

Product Highlights

This Cutler Hammer circuit breaker is ideal for power distribution and circuit protection, ensuring safety and reliability in various electrical applications.

Product Information

Standard Information

• Brand: CUTLER & HAMMER
• Manufacturer Part Number: PDG13F0025TFFJ

Technical Specifications

• Brand: CUTLER & HAMMER
• MPN: PDG13F0025TFFJ
• Poles: 3
• Current Rating: 25 A
• Max Voltage: 600 VAC
• Trip Unit: Fixed Thermal / Fixed Magnetic
• Mounting: Panel
• Neutral Pole: No
• Neutral Protection: No
• UL Standard: 489
• Approvals: CE, CSA, UL
• Voltage Rating VDC: 250V
• Voltage Rating VAC: 600V
• Product Range: PD Series
• Interrupt Rating: 25 kAIC at 480 VAC kA@400VAC
• Number of Poles: 3
• Operating Voltage: 600 VAC
• Series: Power Defense Series
• Terminal Type: Standard Line and Load
• Type: Thermal/Magnetic
• Weight: 2.39 lbs
• Operating Temperature: -20 to 70°C
• Frequency: 50/60 Hz
• Trip Type: Thermomagnetic
• Overload Protection: Yes
• Standards & Certifications: CCC Marked; CSA; GB 14048.2-2008; IEC 60947-2; RoHS; UL 489
• Mounting Type: Din Rail Mount
• Frame Size: Frame 1
• Actuator Type: Handle
• IP Rating: IP30
• Terminal Style: Line; Load
