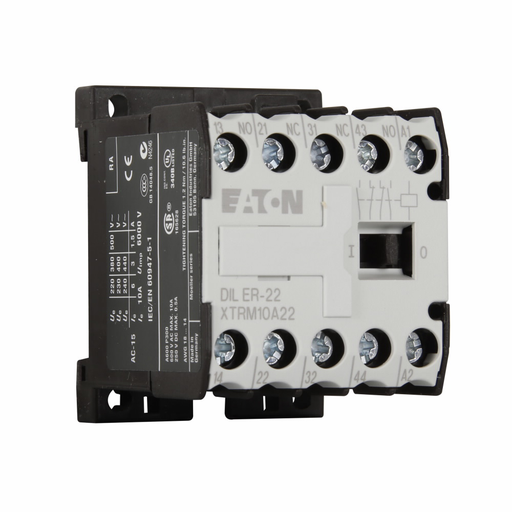

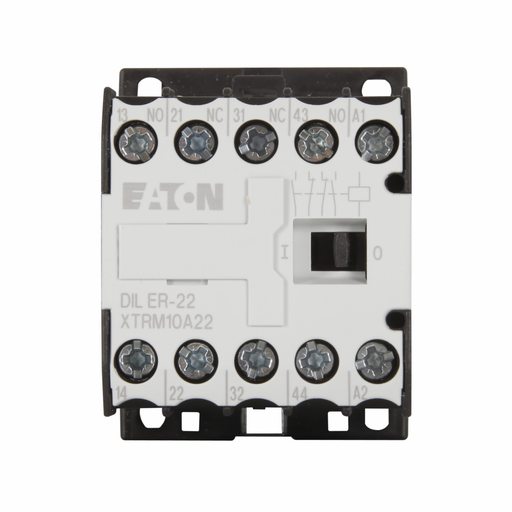

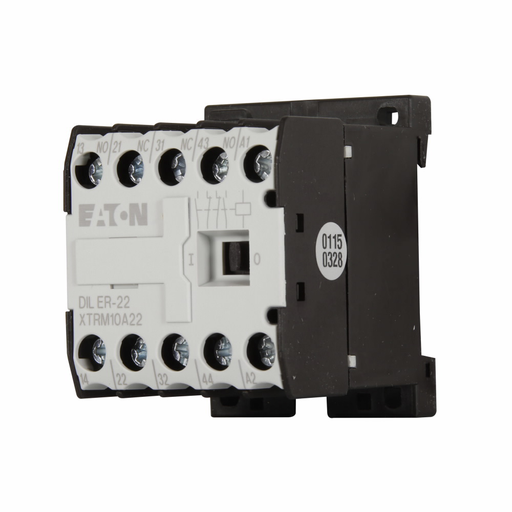

Cutler-Hammer Manufacturing Co. XTRM10A22A Miniature Control Relay 10 Amp 2-1/2 Inch 45 mm

Product Description

The Cutler-Hammer Manufacturing Co. XTRM10A22A Miniature Control Relay is suitable for various automation applications. It features a compact design with screw terminals, conforming to IEC standards. This relay is compatible with 110V fifty Hertz or 120V sixty Hertz coil voltages and offers a 10 Amp thermal rating.

• Compact size of 45 mm frame
• 4 pole configuration with 2 NO and 2 NC contacts
• Rated operational voltage of 600 VAC

Product Highlights

This relay is ideal for industrial automation and process control tasks, providing reliable performance in motor drive and control applications.

Product Information

Standard Information

• Brand: Cutler-Hammer Manufacturing Co.
• Manufacturer: Eaton

Technical Specifications

• Type: Electromechanical, General Purpose, Miniature
• Frame Size: 45 mm
• Height: 2 inch
• Length: 2-1/2 inch
• Weight: 0.3 lb
• Voltage: 600 VAC
• Amperage: 10 Amp
• Coil Voltage: 120 V
• Number of Poles: 4 Pole
• Contact Configuration: 2 NO, 2 NC
• Applications: For Industrial, Automation and Process Control, Motor Drive and Control
