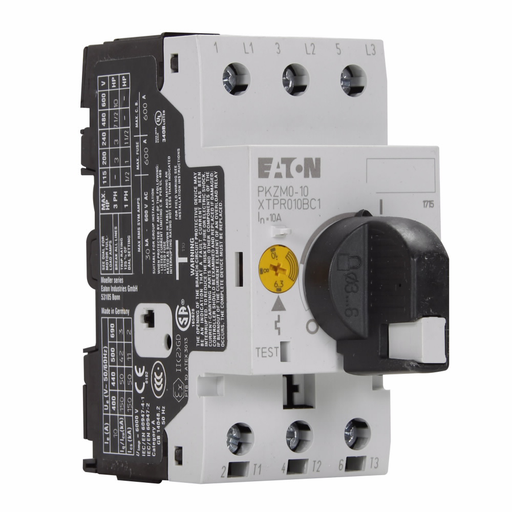

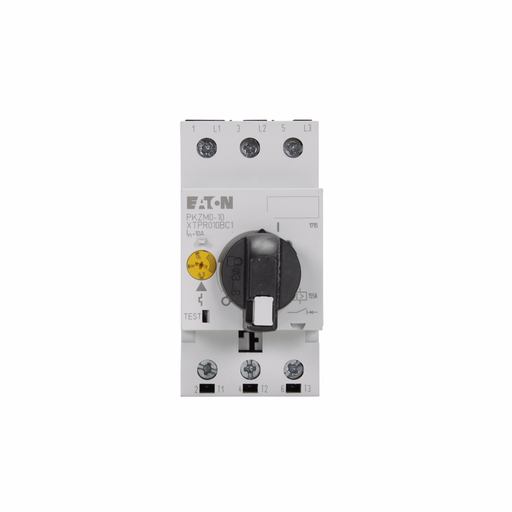

Cutler-Hammer Manufacturing Co. XTPR010BC1 Eaton XTPR010BC1 6.3 to 10 Amp Manual Motor Protector with Screw Terminal

Product Description

The Cutler-Hammer Manufacturing Co. XTPR010BC1 is a manual motor protector designed for use in motor and power control equipment. This unit operates within a range of six point three to ten amperes. It features a screw terminal connection for easy installation. The protector is designed to safeguard motors from overload conditions.

• Amperage range of six point three to ten amps
• Screw terminal connection for secure wiring
• Manual reset functionality to ensure user control

Product Highlights

The XTPR010BC1 provides reliable protection for motors and is suitable for various power control applications.

Product Information

Standard Information

• Brand: Cutler-Hammer Manufacturing Co.
• Manufacturer: Eaton Cutler-Hammer

Technical Specifications

• Size: 45 mm
• Type: Rotary, Frame B
• Amperage: 10 Amp
• Trip Class: 10
• Power Rating: 2.2 kW at 230 V, 4 kW at 400 V
• Control Voltage: 220 - 690 V
• Applications: Motor and Power Control Equipment
• Contact Rating: 10A
