Cutler-Hammer Manufacturing Co. XTOB016CC1 ETN XTOB016CC1 IEC OVLR FRAME C CLA

Product Description

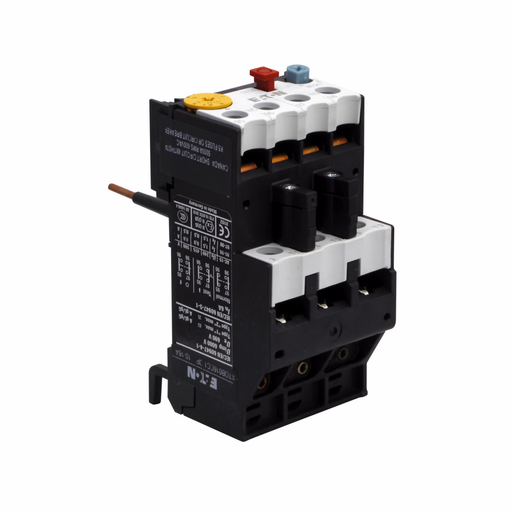

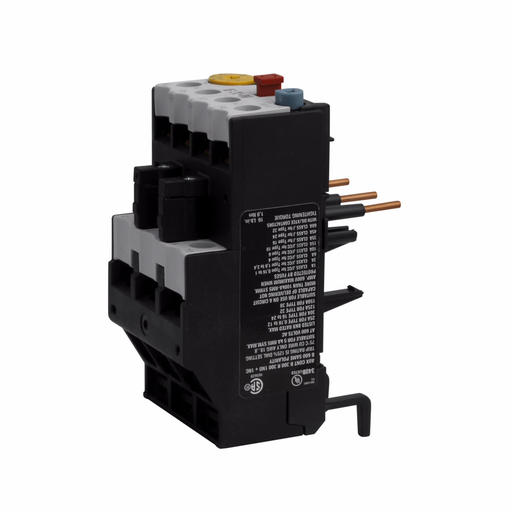

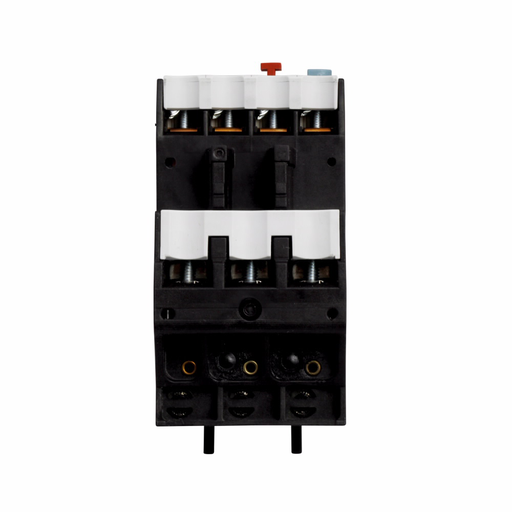

The Cutler-Hammer Manufacturing Co. XTOB016CC1 is an IEC bimetallic overload relay designed for motor and power control equipment. It features an overload range of twelve to sixteen amps and a frame size of forty-five millimeters. The relay is built with a one normally open and one normally closed contact configuration, making it suitable for direct mounting to contactors. This relay is ideal for use with contactors rated at eighteen to thirty-two amps and employs a ten amp trip type mechanism for overload protection.

• Overload Range: 12-16 Amps
• Frame Size: 45 mm
• Contact Configuration: 1 NO, 1 NC

Product Highlights

Reliable overload protection for motors and power controls.

Product Information

Standard Information

• Brand: Cutler-Hammer Manufacturing Co.
• Manufacturer: Cutler-Hammer / Eaton

Technical Specifications

• Type: Bimetallic
• Class: Class 10
• Frame Size: 45 mm
• Height: 1.89 Inch
• Length: 3.27 Inch
• Weight: 0.34 lb
• Amperage: 10-16 Amp
• Trip Type: 10 A
• Mounting Type: Direct
• Terminal Type: Screw
• Applications: For Motor and Power Control Equipment
• Contact Configuration: 1 NO, 1 NC
• Standards: CE Marked, RoHS Compliant, ATEX Compliant, UL Listed, CSA Certified, IEC 60947, EN 60947
