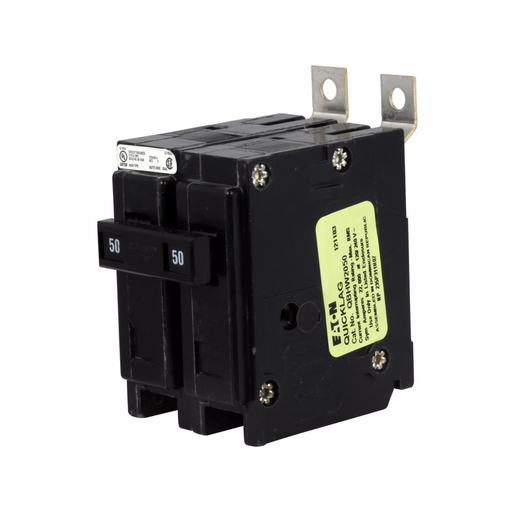

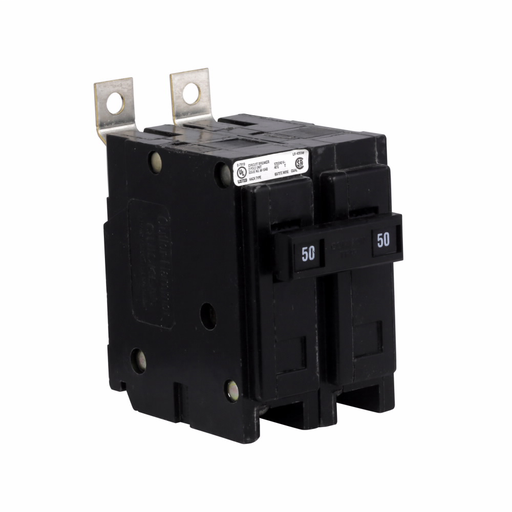

Cutler-Hammer Manufacturing Co. QBHW2050 Eaton Electrical 120/240 VAC 50 Amp 2-Pole Thermal Magnetic Miniature Circuit Breaker

Product Description

The Cutler-Hammer Manufacturing Co. QBHW2050 is a thermal-magnetic miniature circuit breaker designed for industrial applications. This two-pole circuit breaker supports dual voltage inputs of 120/240 volts and features a current rating of fifty amps. With an interrupting capacity of twenty-two kAIC, it effectively protects electrical circuits from overloads and short circuits.

• Two-pole design for versatile applications
• Trip type includes long time and instantaneous options
• Approved by CSA and UL for safety compliance

Product Highlights

This circuit breaker is ideal for industrial environments where reliability and safety are crucial.

Product Information

Standard Information

• Brand: Cutler-Hammer Manufacturing Co.
• Manufacturer: Eaton Cutler-Hammer

Technical Specifications

• Type: Type QBHW, QuickLag
• Voltage: 120/240 Volt
• Amperage: 50 Amp
• Interrupt Rating: 22 kAIC
• Mounting Type: Bolt-On
• Number of Poles: 2 Pole
• Temperature Rating: 40 degrees C
• Weight: .7 lb
