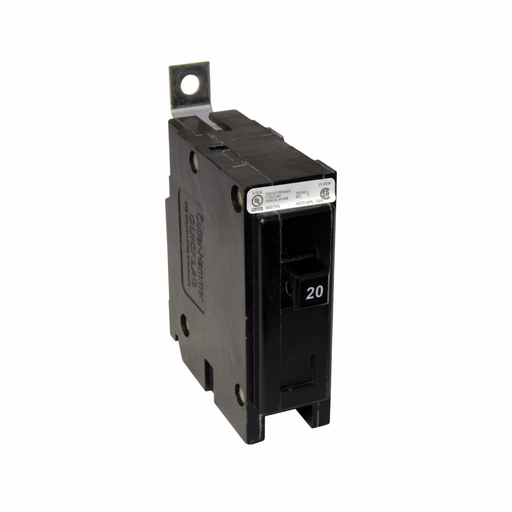

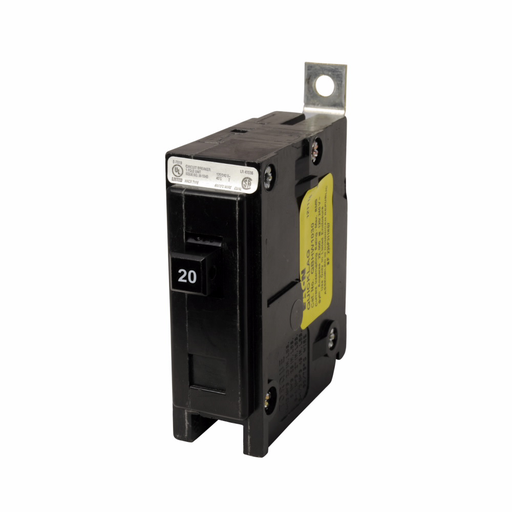

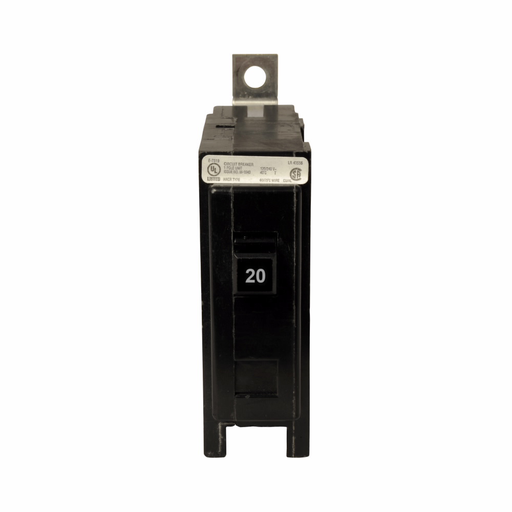

Cutler-Hammer Manufacturing Co. QBHW1020 Eaton Electrical 120/240 VAC 20 Amp 1-Pole Thermal Magnetic Miniature Circuit Breaker

Product Description

The Cutler-Hammer Manufacturing Co. QBHW1020 is a thermal magnetic miniature circuit breaker designed for industrial applications. This device operates at 120/240 volts and handles up to 20 amps.

• Non-interchangeable, single-pole design
• Interrupt rating of 22 kAIC for reliable performance
• Thermal magnetic trip type for protection against overloads

Product Highlights

Engineered for reliable circuit protection, the QBHW1020 effectively guards against overload and short circuit conditions.

Product Information

Standard Information

• Brand: Cutler-Hammer Manufacturing Co.
• Manufacturer: Eaton

Technical Specifications

• Type: QBHW, QuickLag
• Voltage: 120/240 Volt
• Amperage: 20 Amp
• Trip Type: Non-Interchangeable, Long Time and Instantaneous, Thermal Magnetic
• Interrupt Rating: 22 kAIC
• Mounting Type: Bolt-On
• Number of Poles: 1 Pole
• Temperature Rating: 40 degrees C
• Weight: 0.3 lb
• Height: 4.7 Inch
• Length: 3.9 Inch
• Width: 1.2 Inch
