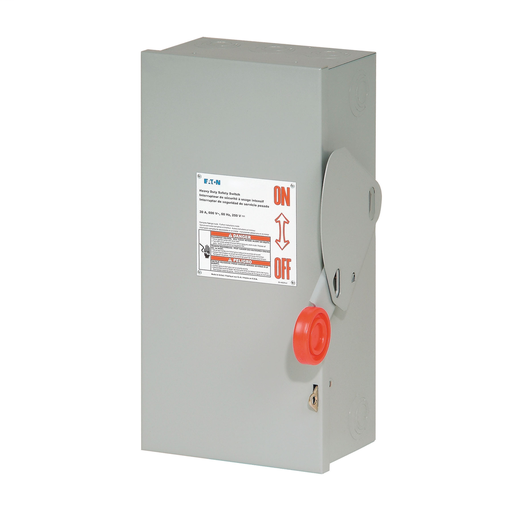

Cutler-Hammer Manufacturing Co. DH362FGK Eaton DH362FGK Heavy Duty Safety Switch 60 Amp NEMA 1

Product Description

The Cutler-Hammer Manufacturing Co. DH362FGK is a heavy-duty safety switch designed for efficient power distribution. This Eaton switch operates at sixty amps and is suitable for commercial and institutional buildings. Its NEMA one enclosure allows for indoor use.

• Heavy-duty design for reliable power distribution
• Rated for 60 amps and 600 volts
• Three-pole, three-wire configuration

Product Highlights

This switch is ideal for applications involving power distribution in commercial settings. It supports various conductor sizes from fourteen to two AWG.

Product Information

Standard Information

• Brand: Cutler-Hammer Manufacturing Co.
• Manufacturer: Eaton

Technical Specifications

• Type: Heavy Duty Fusible Safety Switch
• Amperage: 60 Amp
• Voltage: 600 Volt
• Enclosure: NEMA 1
• Material: Steel
• Number of Poles: 3 Pole
• Number of Wires: 3 Wire
• Wire Size: 14-2 AWG
• Dimensions: 16-1/2 inches (Length) x 9.5 inches (Width) x 8-1/2 inches (Height)
• Weight: 10 lb
