Cutler-Hammer Manufacturing Co. DG223NRB Eaton Electrical 240 VAC 100 Amp 15 to 30 Hp 2-Pole 3-Wire Fusible Single Throw Safety Switch

Product Description

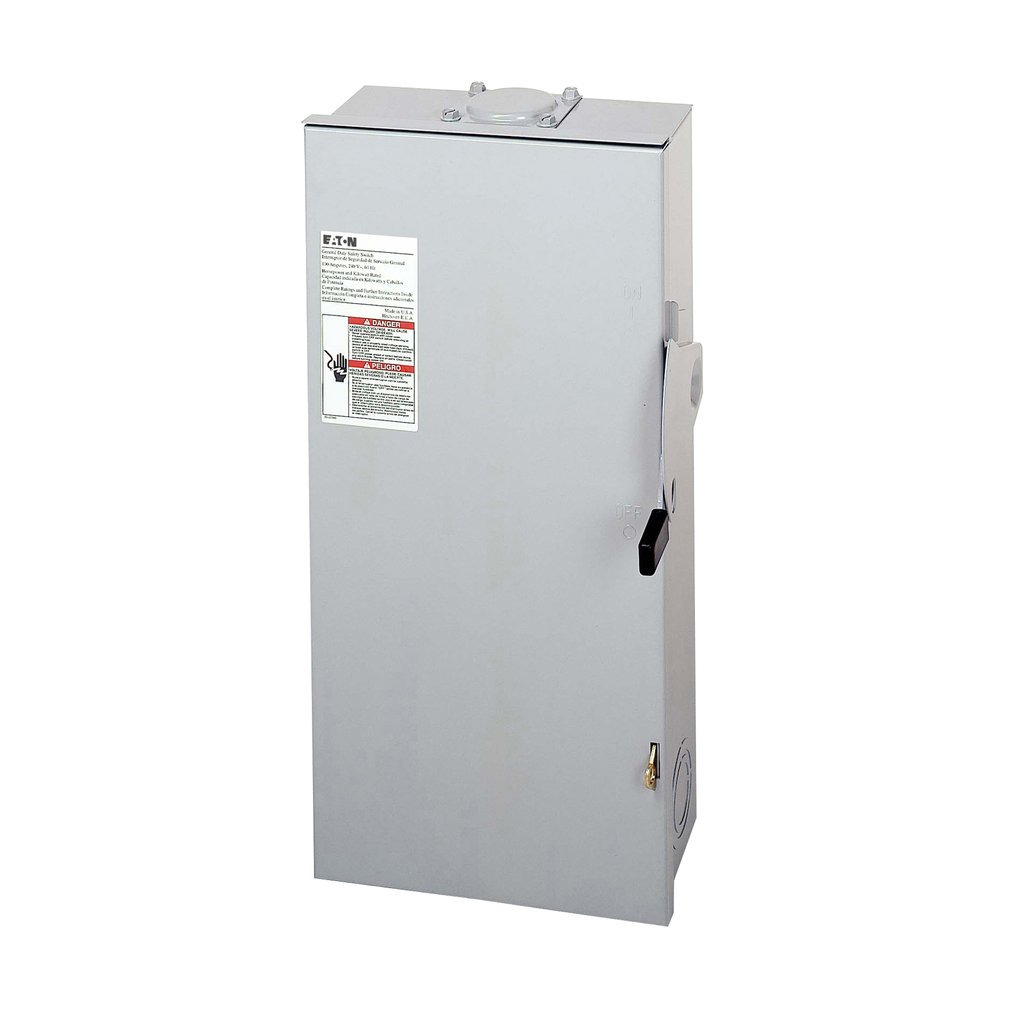

The Cutler-Hammer Manufacturing Co. DG223NRB is a fusible safety switch designed to operate at 240 volts with a current rating of 100 amps. It features a two-pole, three-wire configuration, making it suitable for a variety of applications. The switch is housed in a NEMA 3R rated enclosure, constructed from painted galvanized steel for durability and protection against the elements.

• Rated for 100 amperes at 240 volts.
• Includes two-pole and three-wire system.
• Built to NEMA 3R standards for outdoor installations.

Product Highlights

This switch is ideal for general duty applications in commercial and institutional buildings, providing reliable power distribution and control.

Product Information

Standard Information

• Brand: Cutler-Hammer Manufacturing Co.
• Manufacturer: Eaton

Technical Specifications

• Type: General Duty, Cartridge Fused
• Voltage: 240 Volt
• Amperage: 100 Amp
• Material: Steel
• Enclosure: 3R
• NEMA Size: 3R
• Width: 10.25 inches
• Height: 19.25 inches
• Length: 7.38 inches
• Weight: 14 lb
• Applications: Commercial / Institutional Buildings / Structures - Power Distribution and Controls
