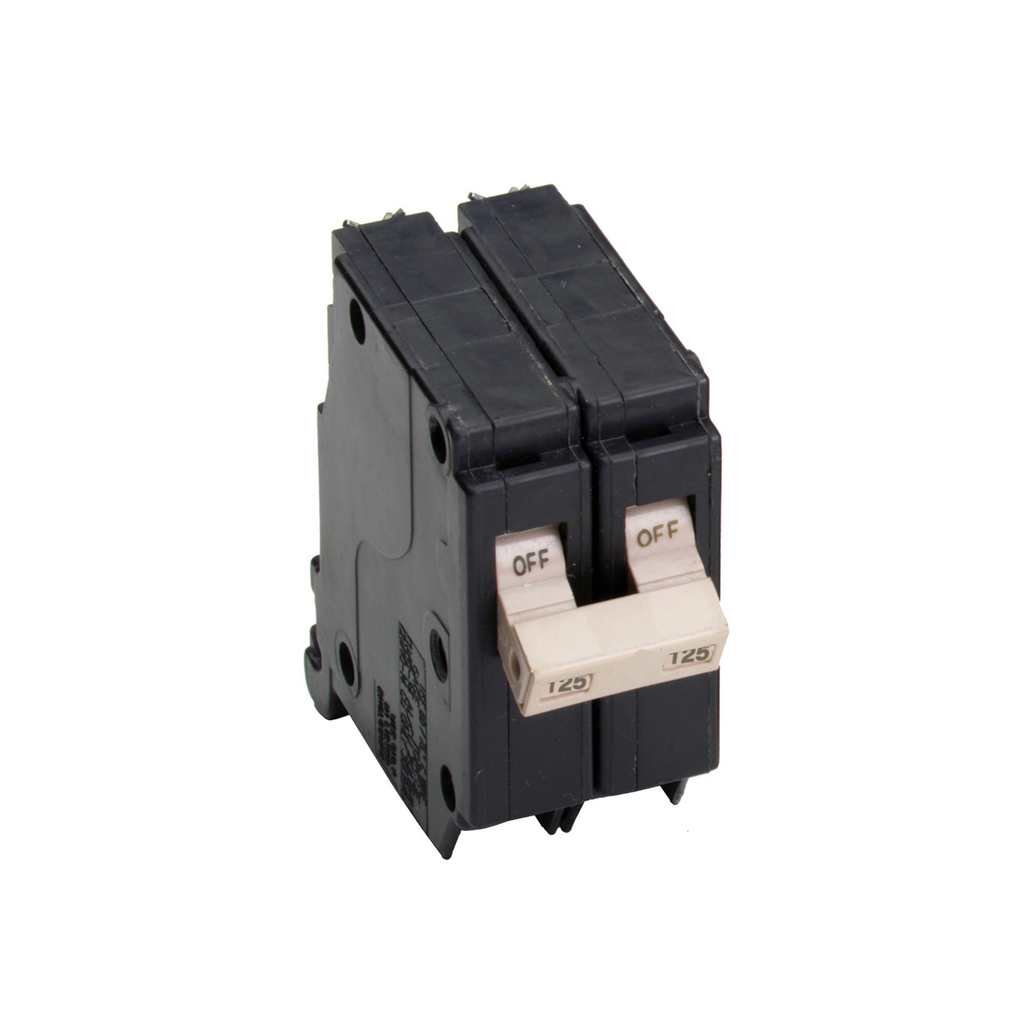

Cutler-Hammer Manufacturing Co. CH2125 Eaton Electrical CH2125 3/4 Inch Type CH Standard Circuit Breaker

Product Description

The Cutler-Hammer Manufacturing Co. CH2125 is a Type CH standard circuit breaker rated for 125 Amps and designed for use in 120/240 Volt applications. This two-pole breaker offers a 10 kA interrupt capacity and features a common breaker trip, accommodating wire sizes from ten to one-aught AWG copper or aluminum. Ideal for loadcenters, it meets UL 489 standards, ensuring safety and reliability in electrical systems.

• Rated for 125 Amps
• Supports 120/240 Volt applications
• Complies with UL 489 standards

Product Highlights

This circuit breaker is perfect for both residential and commercial installations. It provides reliable protection for circuits against overloads and faults, making it essential for any electrical system.

Product Information

Standard Information

• Brand: Cutler-Hammer Manufacturing Co.
• Manufacturer: Eaton

Technical Specifications

• Type: 3/4 in
• Height: 2-3/4 Inch
• Length: 3-3/4 Inch
• Weight: 0.58 lb
• Voltage: 120/240 Volt
• Amperage: 125 Amp
• Trip Type: Common Breaker Trip
• Wire Size: 10-1/0 AWG
• Number of Poles: 2 Pole
• Interrupt Rating: 10 kAIC
