Cutler-Hammer Manufacturing Co. BW2200 Eaton Electrical BW2200 Type BW Circuit Breaker 200 A (Size) Replacement MPN

Product Description

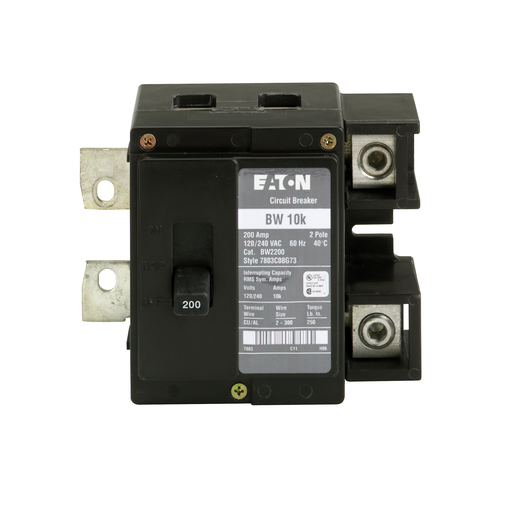

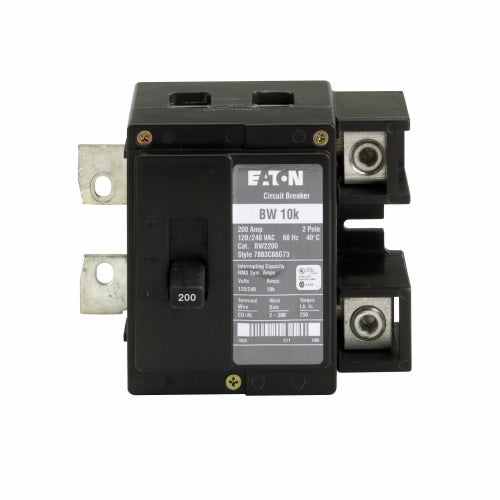

The Cutler-Hammer Manufacturing Co. BW2200 is a plug-on circuit breaker. This circuit breaker is rated for two hundred Amperes and features a ten kAIC interrupt rating. It operates at a voltage of one hundred twenty to two hundred forty volts. This model is compatible with two AWG to three hundred kcmil wire sizes. The BW2200 is designed for use in Type ECB unit enclosures.

• Rated for two hundred amperes
• Ten kAIC interrupt rating
• Compatible with multiple wire sizes

Product Highlights

This circuit breaker is suitable for residential applications. It is easy to install and maintain. The plug-on design allows for straightforward connections.

Product Information

Standard Information

• Brand: Cutler-Hammer Manufacturing Co.
• Manufacturer: Cutler-Hammer / Eaton

Technical Specifications

• Voltage: 120/240 Volt
• Amperage: 200 Amp
• Wire Size: 300 kcmil
• Connection Type: Plug-on
• Number of Poles: 2 Pole
• Interrupt Rating: 10 kAIC
• Width: 5.25 in
• Height: 5 Inch
• Length: 6-1/4 Inch
• Weight: 2.65 lb
