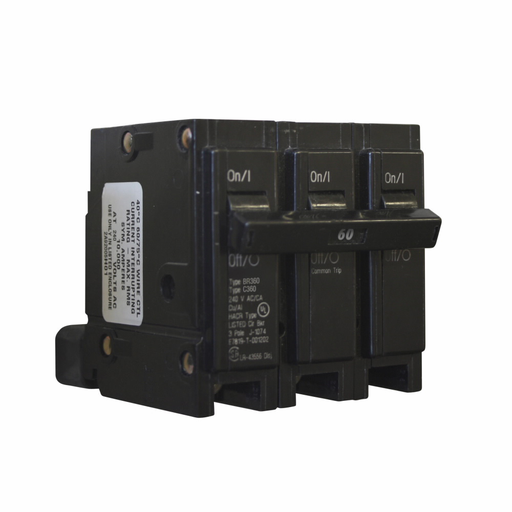

Cutler-Hammer Manufacturing Co. BR360 Eaton Electrical 1 Inch Plug-On Circuit Breaker

Product Description

The Cutler-Hammer Manufacturing Co. BR360 is a plug-on circuit breaker designed for residential and light commercial applications. This device is rated at sixty amps and operates at two hundred forty volts. It features thermal magnetic technology and is suitable for use with Type BR load centers. This circuit breaker includes a three-pole configuration and an interrupt rating of ten kAIC.

• Type BR thermal magnetic circuit breaker
• Rated for 60 Amps and 240 Volts
• Three-pole configuration

Product Highlights

This circuit breaker is ideal for residential and light commercial use, ensuring reliable circuit protection.

Product Information

Standard Information

• Brand: Cutler-Hammer Manufacturing Co.
• Catalog Number: BR360

Technical Specifications

• Amperage: 60 Amp
• Voltage: 240 Volt
• Number of Poles: 3 Pole
• Trip Type: Common Breaker, Thermal Magnetic
• Interrupt Rating: 10 kAIC
• Temperature Rating: 40 degrees C
• Wire Size: 4-0 AWG
• Mounting Type: Plug-On
