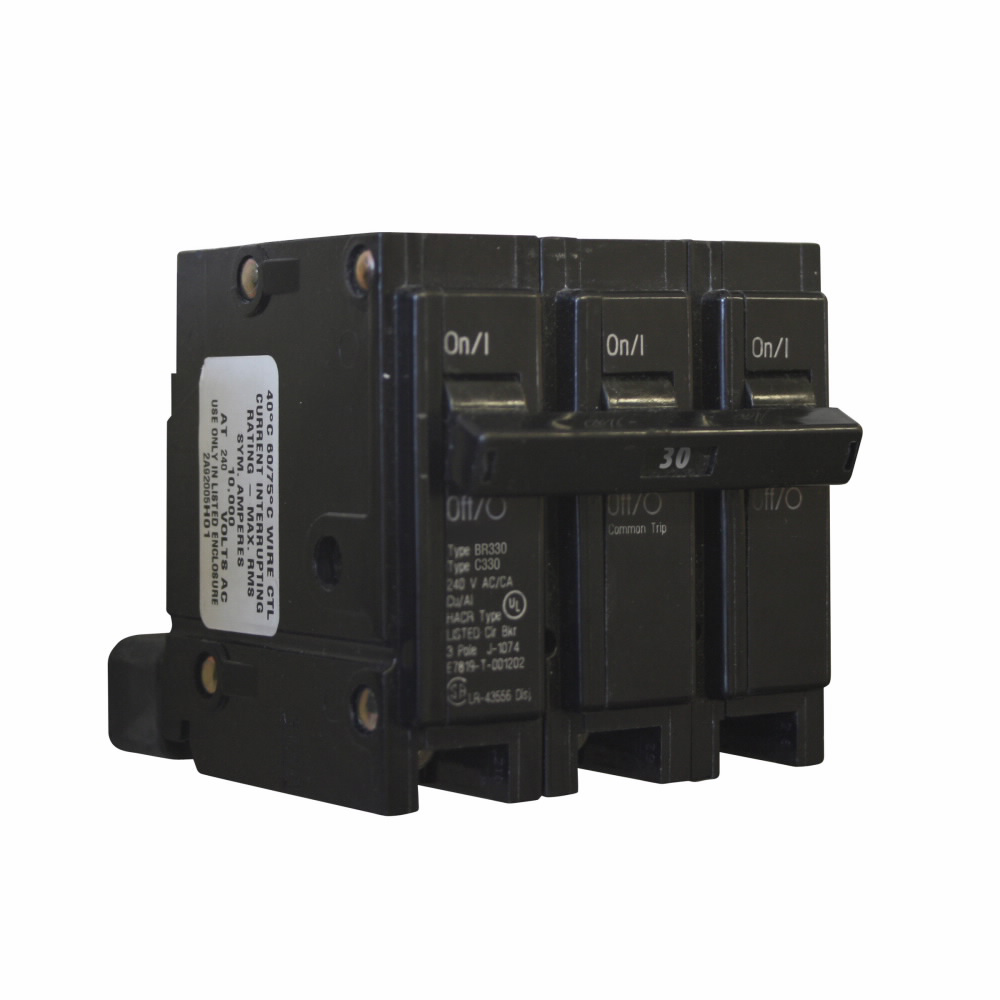

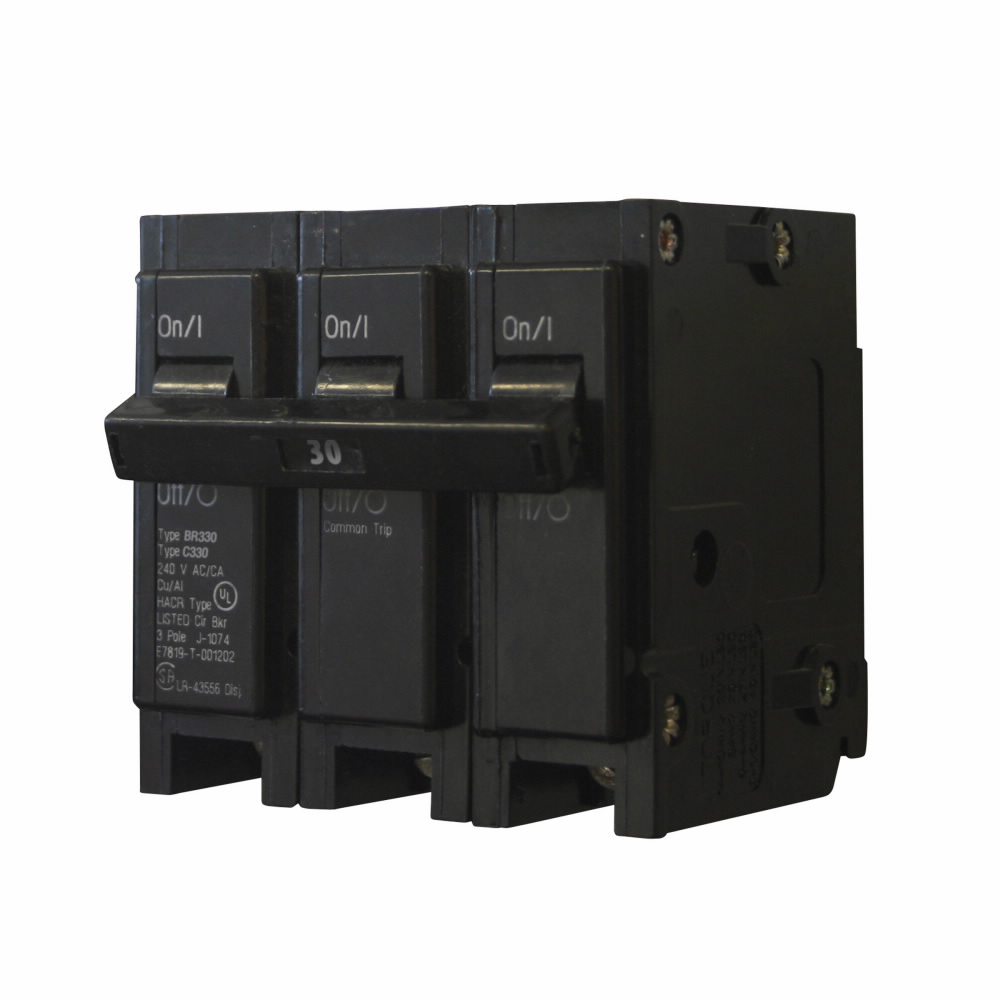

Cutler-Hammer Manufacturing Co. BR330 Eaton Electrical 1 Inch Plug-On Circuit Breaker

Product Description

The Cutler-Hammer Manufacturing Co. BR330 is a thermal magnetic circuit breaker designed for plug-on installation. This one-inch circuit breaker operates at thirty amperes and has a voltage rating of two hundred forty volts. It features a common breaker trip and is suitable for use with type BR load centers.

• Type BR three-pole circuit breaker with a current rating of thirty amperes
• Voltage rating of two hundred forty volts and an interrupt rating of ten kAIC
• Compatible with wire sizes of fourteen to four AWG copper or aluminum

Product Highlights

This circuit breaker is ideal for residential and light commercial applications.

Product Information

Standard Information

• Brand: Cutler-Hammer Manufacturing Co.
• Model: BR330

Technical Specifications

• Weight: .95 lb
• Dimensions: 2.9 in width, 2.6 in height, 2.8 in length
• Voltage: 240 Volt
• Amperage: 30 Amp
• Trip Type: Common Breaker, Thermal Magnetic, Long Time and Instantaneous
• Used With: Type BR Loadcenters
• Wire Size: 14-4 AWG
• Number of Poles: 3 Pole
• Interrupt Rating: 10 kAIC
• Temperature Rating: 40 degrees C
