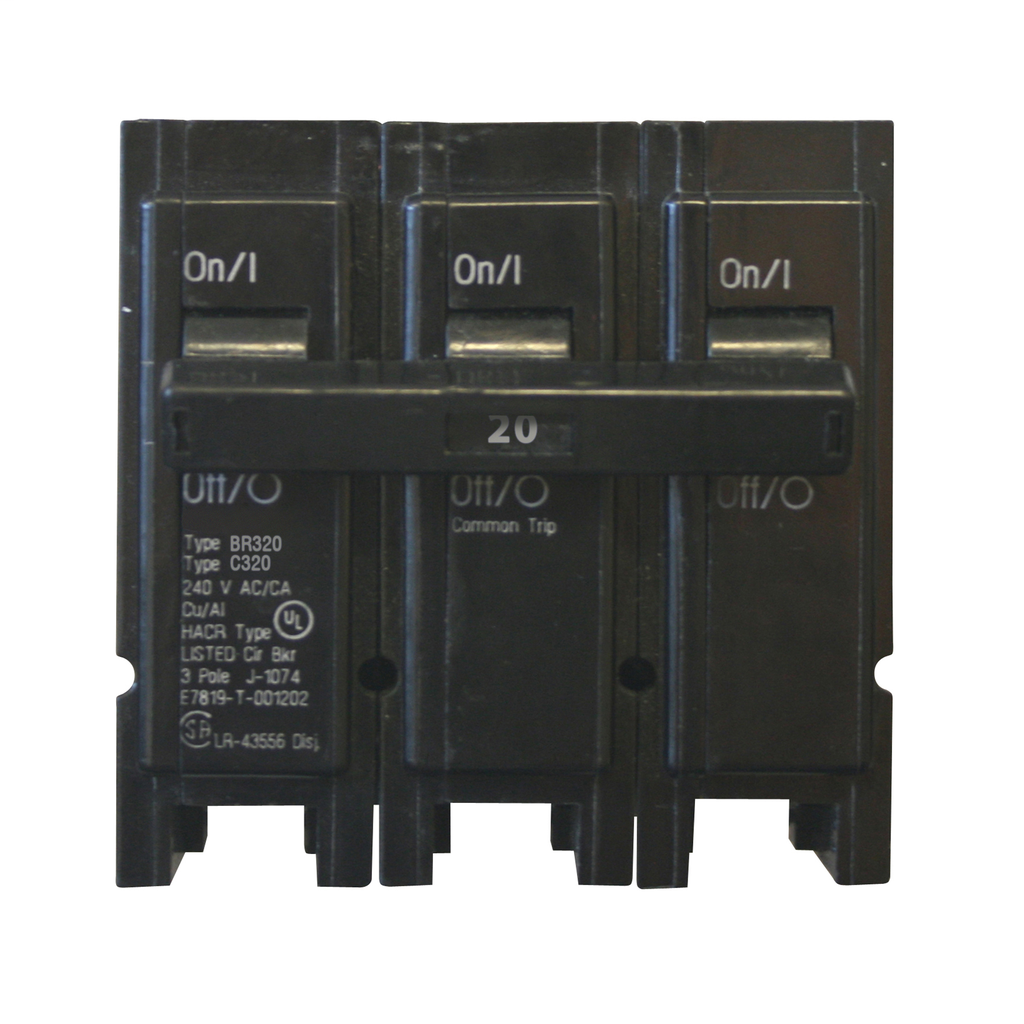

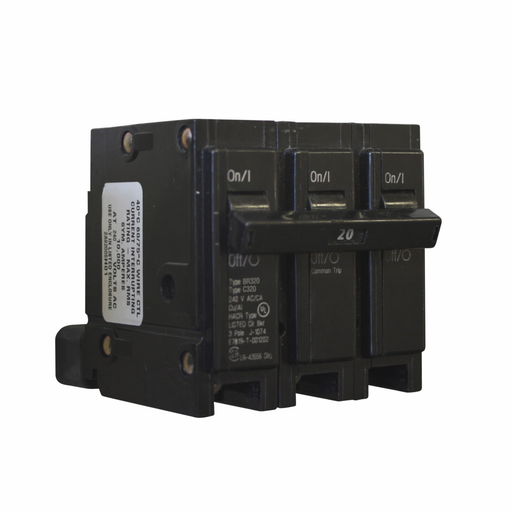

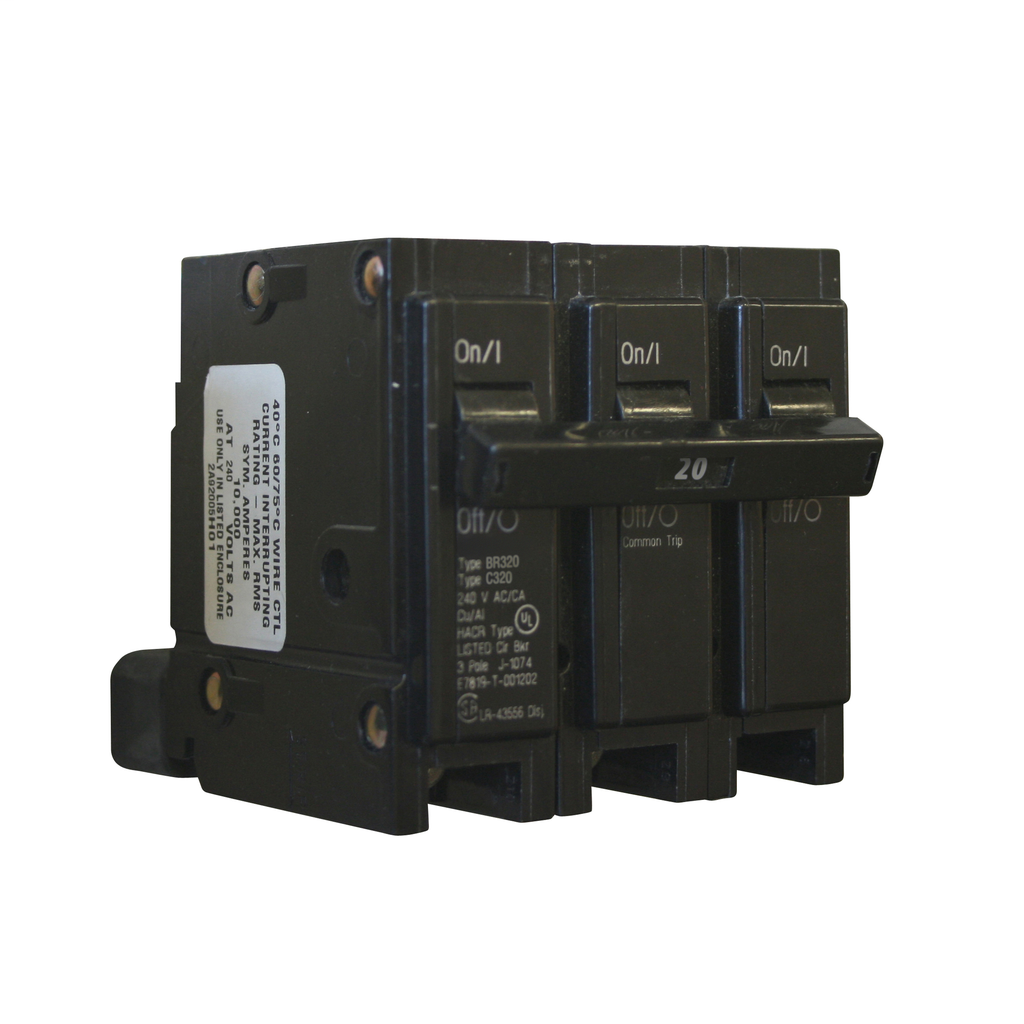

Cutler-Hammer Manufacturing Co. BR320 Eaton Electrical 1 Inch Plug-On Circuit Breaker 20 Amp 240 Volt

Product Description

The Cutler-Hammer Manufacturing Co. BR320 is a thermal magnetic circuit breaker designed for reliable performance. This type BR, one inch plug-on circuit breaker is rated for twenty amps and operates at two hundred forty volts. It features a three-pole configuration and a ten kAIC interrupt rating, ensuring safety and efficiency in power distribution systems.

• Type BR design for compatibility with various load centers
• Rated for residential and light commercial applications
• Accepts wire sizes from fourteen to four AWG

Product Highlights

This circuit breaker is suitable for use with type BR load centers. It offers common breaker trip functionality with thermal magnetic operation, providing both long-time and instantaneous trip features.

Product Information

Standard Information

• Brand: Cutler-Hammer Manufacturing Co.
• MPN: BR320

Technical Specifications

• Voltage: 240 Volt
• Amperage: 20 Amp
• Number of Poles: 3 Pole
• Weight: .95 lb
• Width: 2.9 in
• Height: 2.7 in
• Length: 2.9 in
• Wire Size: 14-4 AWG
• Interrupt Rating: 10 kAIC
• Temperature Rating: 40 degrees C
• Applications: For Residential and Light Commercial
• Mounting Type: Plug-On
• Trip Type: Common Breaker, Thermal Magnetic, Long Time and Instantaneous
• Standard: Federal Specifications Classification W-C375, UL 489
