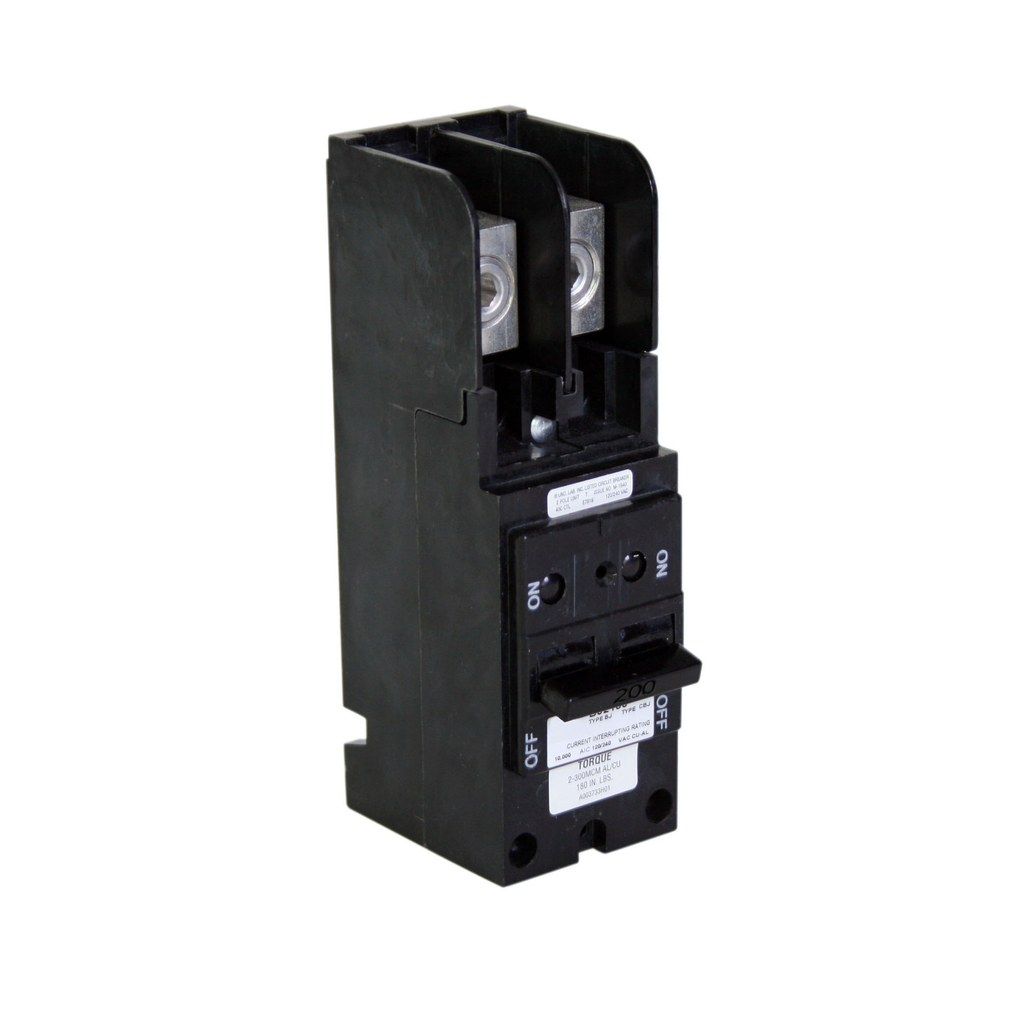

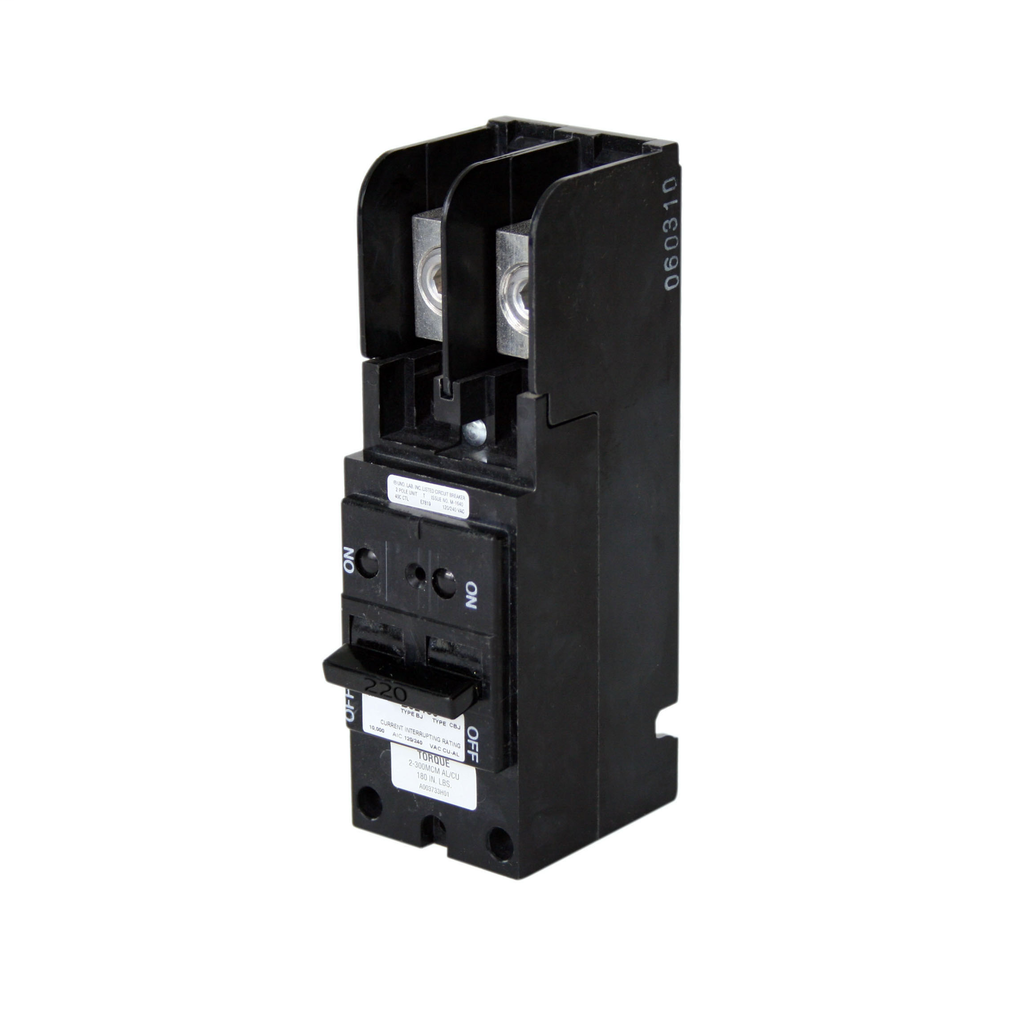

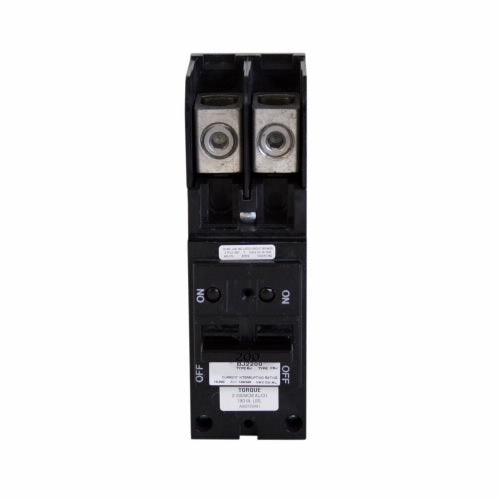

Cutler-Hammer Manufacturing Co. BJ2200 Eaton Electrical 1 Inch Type BJ Plug-On Main Circuit Breaker

Product Description

The Cutler-Hammer Manufacturing Co. BJ2200 is a 1-inch plug-on main circuit breaker designed for residential power distribution. This breaker is rated for 200 amps and operates at a voltage of 120/240 volts. It features a two-pole design and is UL listed, ensuring compliance with safety standards.

• 200 amp rating for reliable circuit protection
• Plug-on mounting type simplifies installation
• 10 kAIC interrupt rating for reliable performance

Product Highlights

This circuit breaker is suitable for common applications in residential settings and is easy to handle with its plug-on connection.

Product Information

Standard Information

• Brand: Cutler-Hammer Manufacturing Co.
• Type: 1-inch Plug-on Main Breaker

Technical Specifications

• Voltage: 120/240 Volt
• Amperage: 200 Amp
• Trip Type: Common
• Number of Poles: 2 Pole
• Length: 6.5 inches
• Width: 3.5 inches
• Height: 2.5 inches
• Weight: 1.8 lb
• Wire Size: 2 AWG - 300 kcmil
• Interrupt Rating: 10 kAIC
• Mounting Type: Plug-On
• Applications: Circuit Protection
