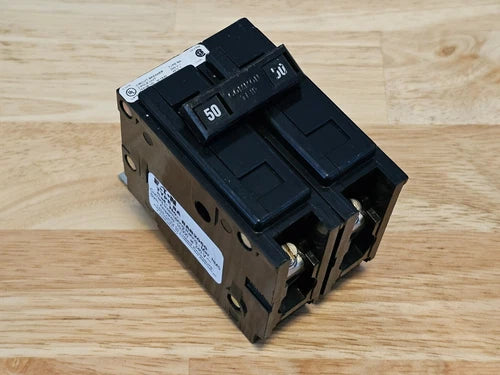

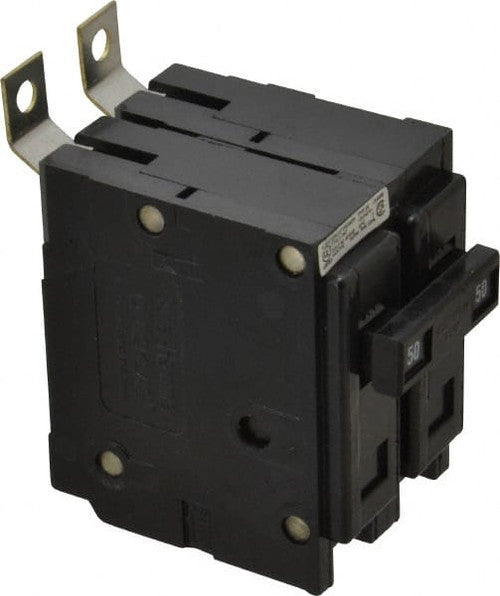

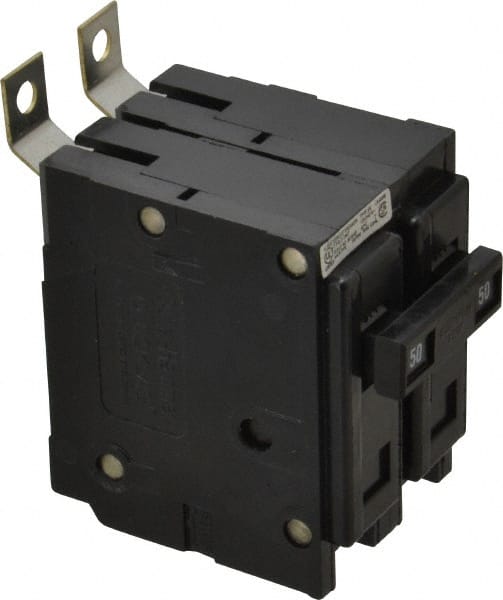

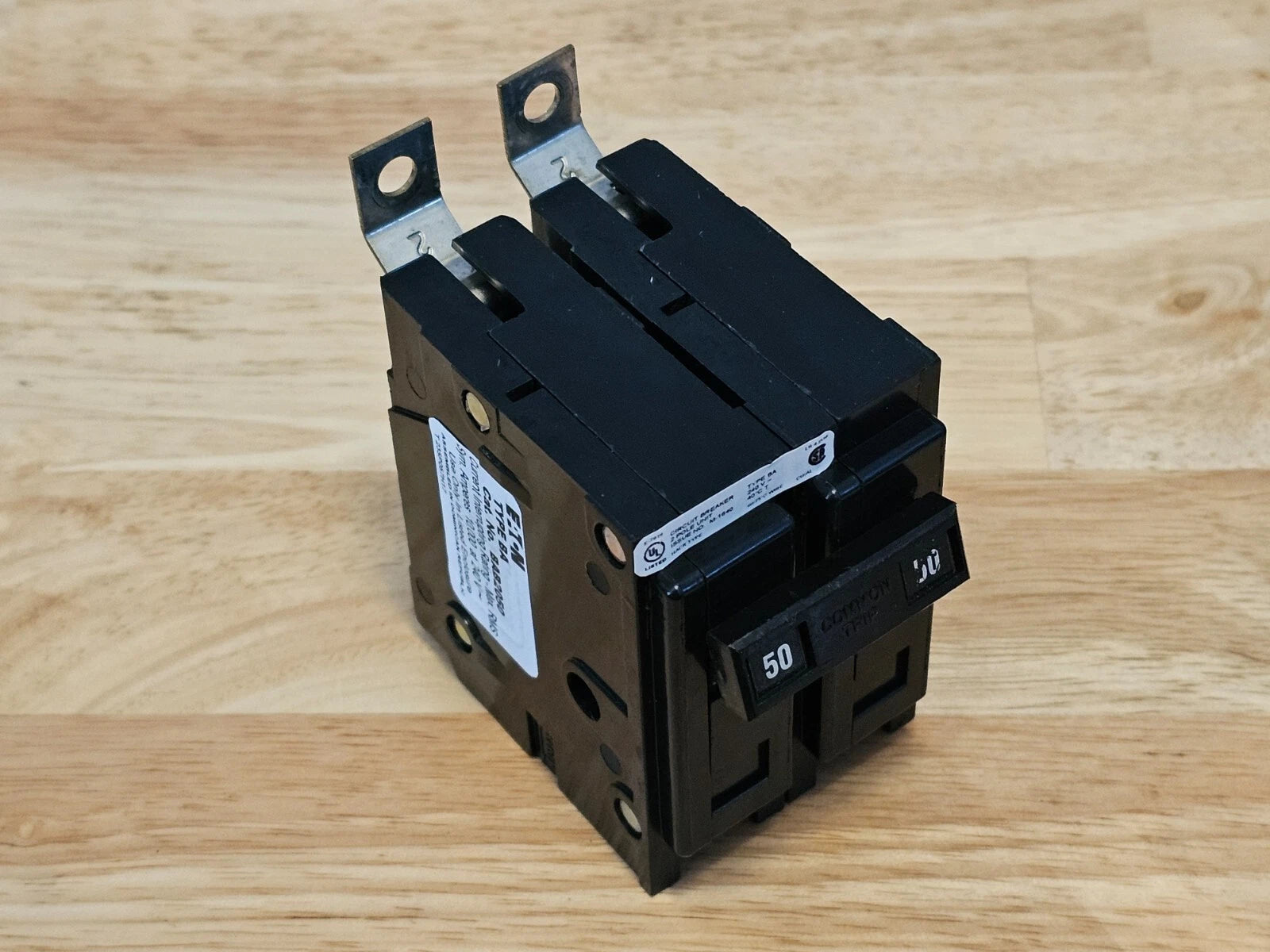

Cutler-Hammer Manufacturing Co BAB2050 Circuit Breaker 50 A

Product Description

The Cutler-Hammer Manufacturing Co BAB2050 is a reliable circuit breaker with a voltage rating of one hundred twenty to two hundred forty volts AC. This two-pole miniature circuit breaker has an amperage rating of fifty amperes and is designed for bolt-on mounting.

• UL Listed and CSA Certified for safety.
• Suitable for wire sizes ranging from fourteen to four AWG.
• Features a thermal-magnetic trip type with a ten kA interrupt rating.

Product Highlights

This circuit breaker allows for convenient installation and is optimized for use in various electrical applications, including fluorescent lighting.

Product Information

Standard Information

• Brand: Cutler-Hammer Manufacturing Co
• Model: BAB2050

Technical Specifications

• Voltage Rating: 120/240 VAC
• Amperage Rating: 50 A
• Interrupt Rating: 10 kA
• Trip Type: Non-Interchangeable Thermal Magnetic
• Number of Poles: 2
• Connection Type: Extended Tang Line/Aluminum Box Lug Load
• Wire Size: 14 to 4 AWG
• Mounting Type: Bolted-On
• Temperature Rating: 40 degrees Celsius
• Dimensions: 3 inches L x 2.5 inches W x 2.5 inches H
• Circuit Breaker Type: Miniature Circuit Breaker
• Tripping Mechanism: Thermal-Magnetic
• HACR Rated: Yes
• Standards: UL Listed and CSA Certified
• Country/Region of Manufacture: United States
