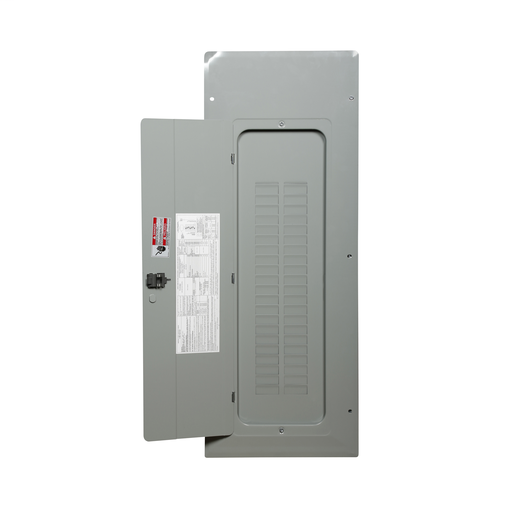

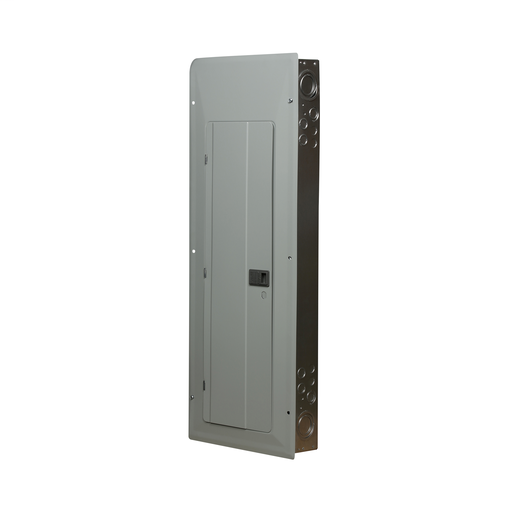

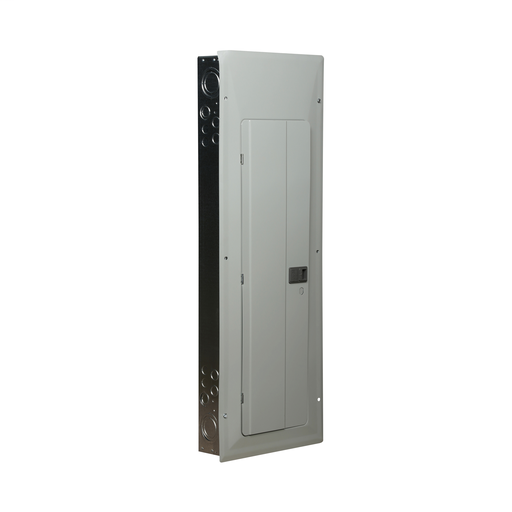

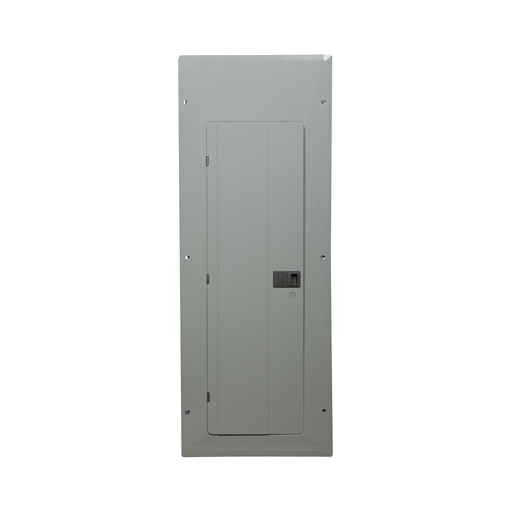

Cutler-Hammer Manufacturing Co. 3BR4242L225 Eaton Electrical 208 Star/120/240 VAC 225 Amp 3-Phase 4-Wire Main Lug Load Center

Product Description

The Cutler-Hammer Manufacturing Co. 3BR4242L225 is a 225 Amp three-phase main lug load center designed for reliable electrical distribution. This unit operates at 208Y/120 or 240 Volts and features 42 circuits and spaces, making it apt for large-scale electrical applications.

• Rated for 225 Amps
• Suitable for 3-phase applications
• Includes a cover

Product Highlights

This main lug load center is built for commercial use, providing efficient and safe electrical management for a variety of circuits.

Product Information

Standard Information

• Brand: Cutler-Hammer Manufacturing Co.
• Manufacturer: Eaton

Technical Specifications

• Voltage: 240 Volt
• Amperage: 225 Amp
• Enclosure: NEMA 1
• Wire Size: 1 AWG
• Number of Circuits: 42
• Number of Phases: 3 Phase
• Number of Wires: 4 Wire
• Interrupt Rating: 25 kAIC
• Mounting Type: Combination
• Cover Type: Cover included
• Bus Material: Aluminum
• Height: 45 Inch
• Width: 14.31 Inch
• Length: 3.88 Inch
• Weight: 36.8 lb
