Cutler & Hammer KD3350V Kd 3P 350A Term L / L 50D

Product Description

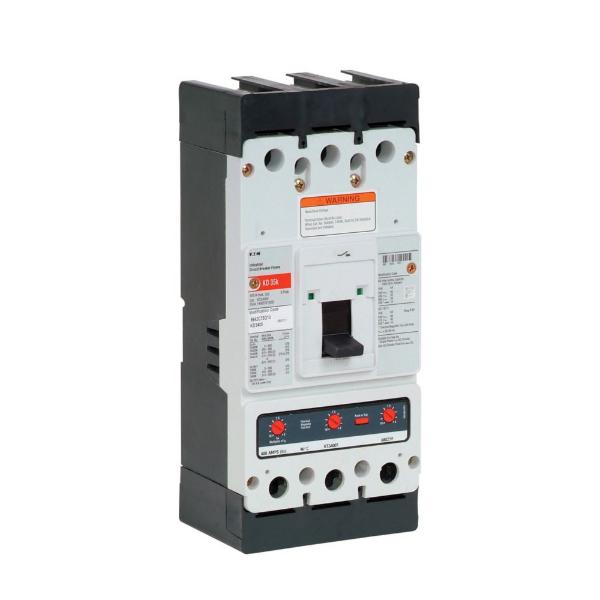

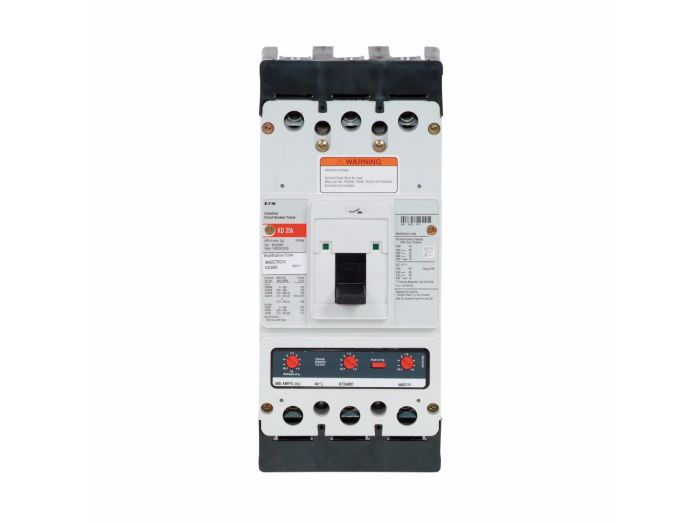

The Cutler & Hammer KD3350V is a Series C complete molded case circuit breaker with a K-frame. This three-pole breaker features a fixed thermal and magnetic trip, operating at 600 Vac and 250 Vdc, with a frequency of 50/60 Hz. It has a 350A amperage and is designed for line and load applications at 50DEGC.

• Complete molded case circuit breaker
• Fixed thermal trip
• Fixed magnetic trip

Product Highlights

The Cutler & Hammer KD3350V circuit breaker is ideal for electrical and machinery OEMs, offering reliable circuit protection.

Product Information

Standard Information

• Brand: CUTLER & HAMMER
• Manufacturer Part Number: KD3350V
• Country of Origin: US

Technical Specifications

• Frame: K-frame
• Poles: Three-pole
• Amperage: 350A
• Voltage AC: 600 Vac
• Voltage DC: 250 Vdc
• kAIC at 240 Vac: 65 kAIC
• kAIC at 480 Vac: 35 kAIC
• Line and Load: Line and load
• Frequency: 50/60 Hz
• BRAND: Cutler Hammer
• SKU: KD3350V
• Type: KD
• Mounting Style: Feed-Thru
• Protection: Thermal Magnetic
• Trip Functions: LI - Long-Time and Instantaneous
• Interrupting Rating (AIC): 35kA@480V
• Manufacturer Part Number: EATON-KD3350V
• Manufacturer: Cutler Hammer, Div of Eaton
• Product Series: C
• Description: CIRCUIT BREAKER
• Current Rating: 350 A
• Max Voltage: 600 VAC
• Neutral Pole: No
• Neutral Protection: No
• 100% Rated: No
• Shunt Trip: Optional
• Undervoltage Release: Optional
• Alarm Switch: Optional
• UL Standard: 489
• Approvals: CSA, UL
• Item: Circuit Breaker
• Height: 5.5"
• Length: 4.1"
• Width: 5.5"
