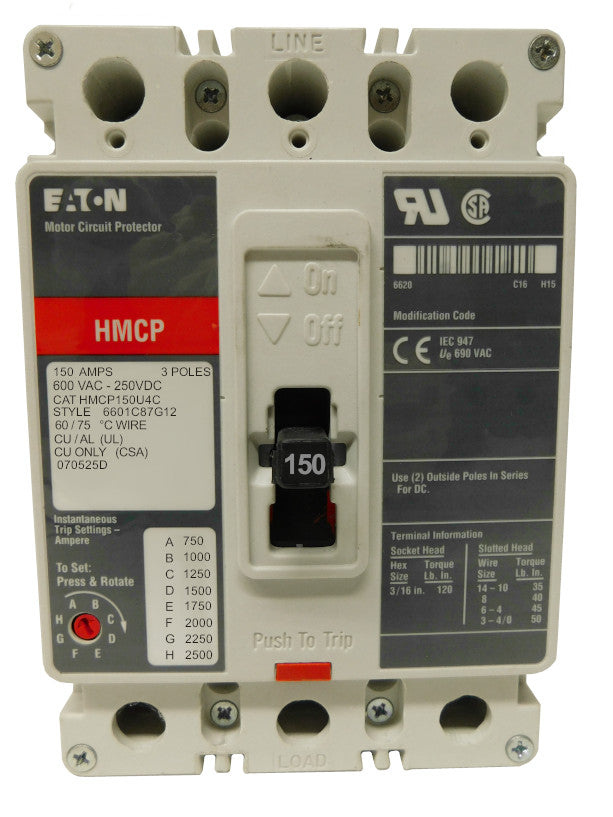

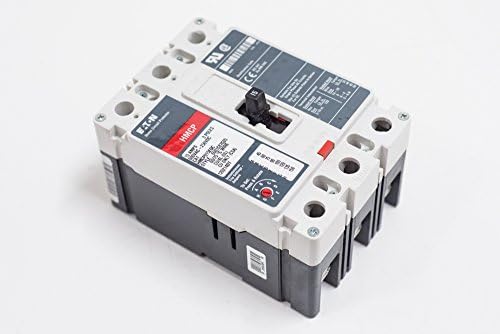

Cutler & Hammer HMCP150U4C Mtr Circ Protr 150 A

Product Description

The CUTLER & HAMMER HMCP150U4C is a motor circuit protector with a three-pole configuration and a current rating of 150 A. It is a molded case circuit breaker accessory designed for motor protection, eliminating the need for a motor overload relay when used with a contactor. The series C breaker is constructed with non-aluminum components.

• Molded case circuit breaker accessory
• Motor circuit protector
• Three-pole configuration
• Series C

Product Highlights

This motor circuit protector provides reliable branch circuit and motor protection, with application-specific protection.

Product Information

Standard Information

• Brand: CUTLER & HAMMER
• Manufacturer Part Number: HMCP150U4C

Technical Specifications

• Amperage: 150 A
• Poles: Three-pole
• Series: Series C
• Application: Motor protection
• Type: Motor circuit protector
• Product Length/Depth: 8 in
• Product Height: 5 in
• Product Width: 5 in
• Certifications: UL Listed CSA Certified
• Global Catalog: HMCP150U4C
• Product Type: Molded case circuit breaker accessory
• Amperage Rating: 150 A
• Magnetic trip range: 750-2500 A
• Terminal material: Non-aluminum
• Number of poles: 3
• Brand: Eaton/Cutler-Hammer
• Voltage: 600
• Phase: 3
• Mounting Type: Feed-Thru
• Approval: UL Listed and CSA Certified
• Mpn: HMCP150U4C
• Upc: 786679150870
• Gtin: 786679150870
• Trip Type: Magnetic
• Current Rating: 150 Amp
• Voltage Rating: 600 VAC, 250 VDC

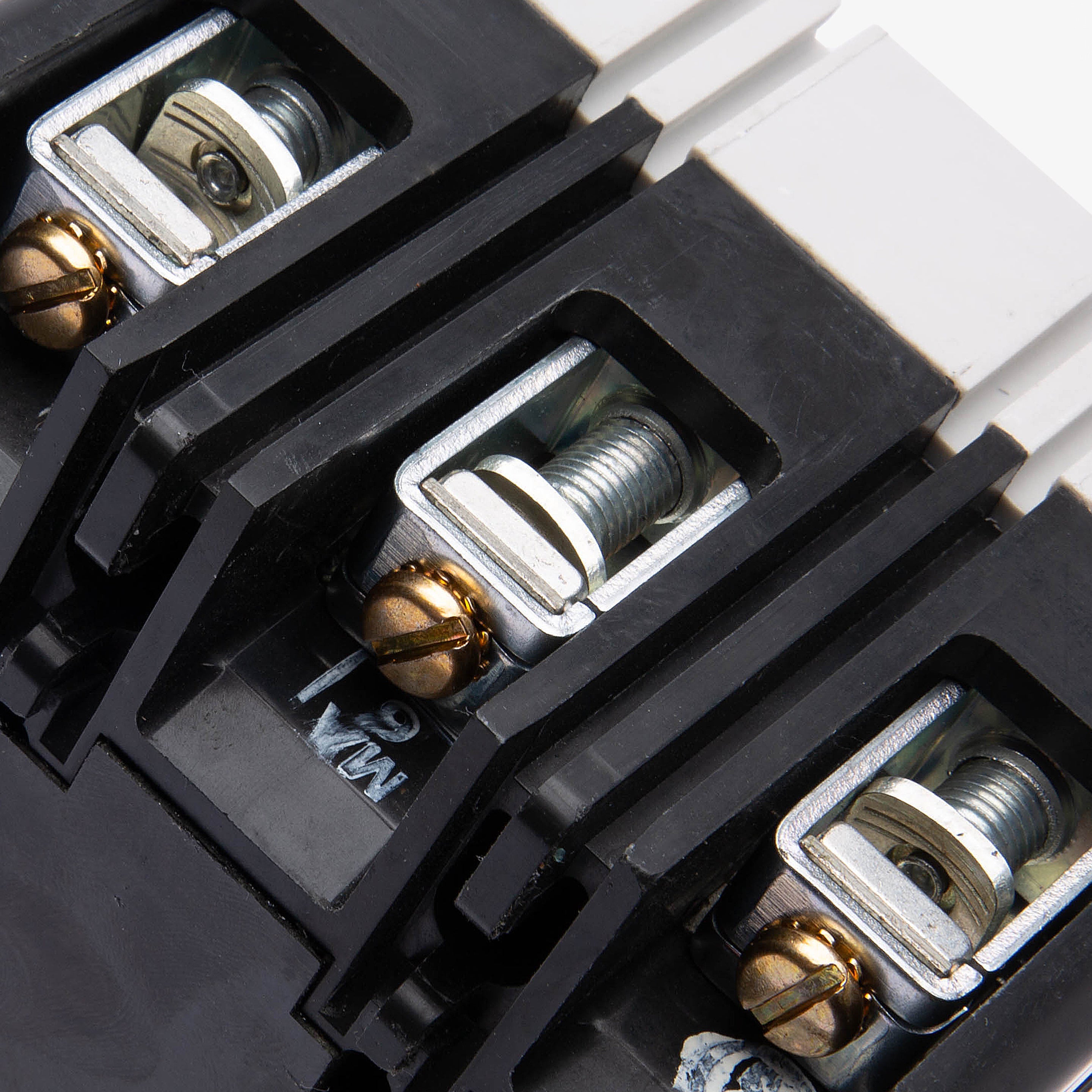

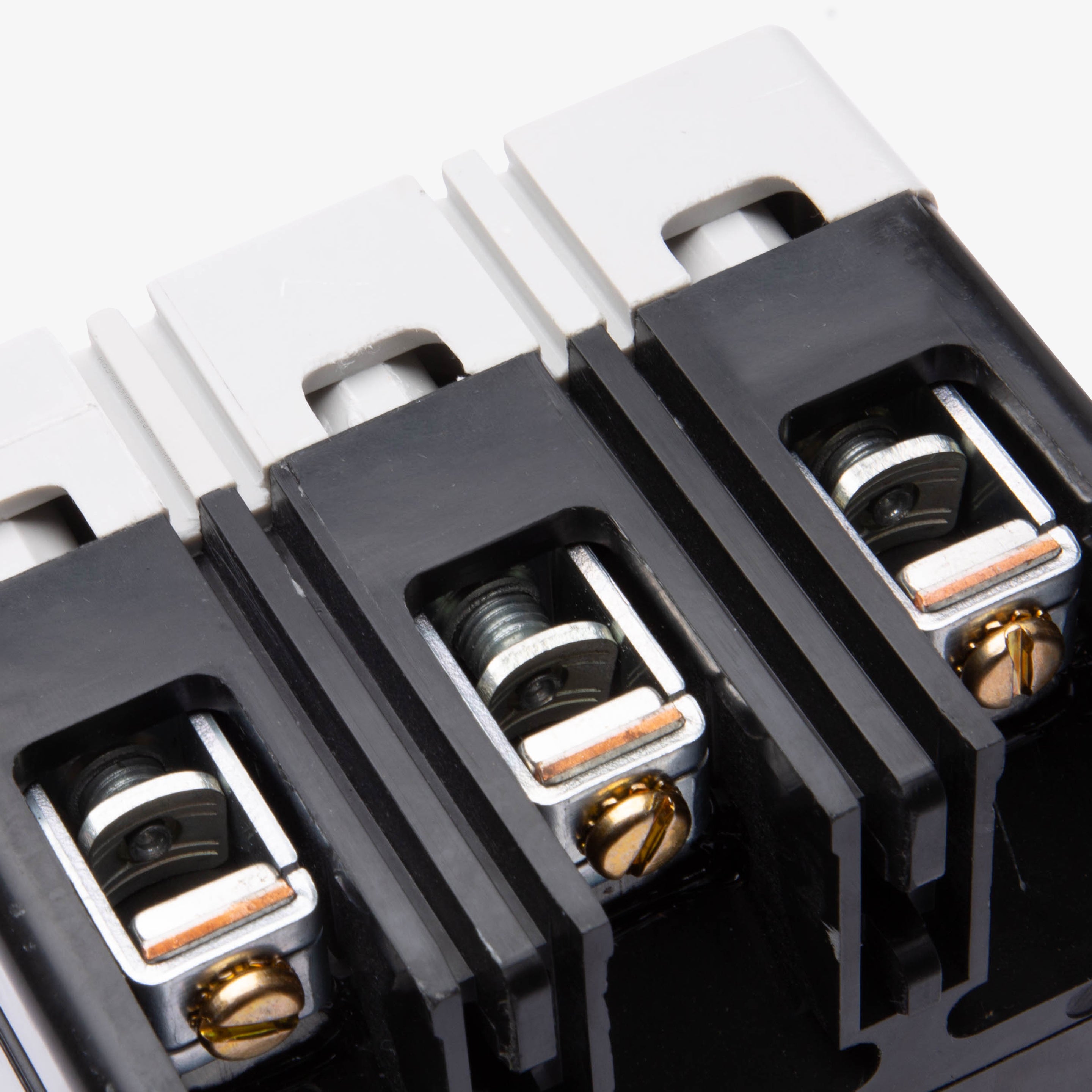

• Connection Type: Line/Load Terminal
• Maximum AC Voltage Rating: 600 Volt
• Maximum DC Voltage Rating: 250 Volt
• Frame Type: F
• Trip Range: 750 to 2500
• Manufacturer: Eaton / Cutler Hammer
• Connection: Bolt On
• Voltage Max: 600
• Trip Setting: 750-2500
