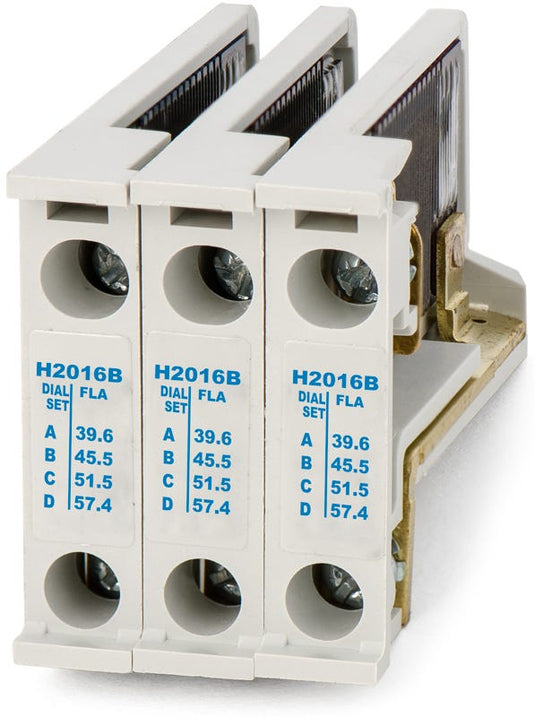

Cutler & Hammer H2016B-3 Heater Pack 39.6 to 57.4 A

Product Description

The Cutler & Hammer H2016B-3 heater pack is a Freedom/Definite Purpose Heater Pack. It features a standard trip, and is a class 20 device. This heater pack is designed for use on overload relays and application motor and power control equipment, with a motor FLA range of 39.6 to 57.4 Ampere and a relay current of 75 Ampere.

• Eaton Freedom NEMA heater coil
• Standard Trip
• Relay current ampere of 75 ampere

Product Highlights

The Cutler-Hammer H2016B-3 heater pack is for overload relay applications. It has a standard trip and a motor FLA range of 39.6 to 57.4 Ampere.

Product Information

Standard Information

• Brand: CUTLER & HAMMER
• Manufacturer Part Number: H2016B-3

Technical Specifications

• Brand: CUTLER & HAMMER
• MPN: H2016B-3
• full load range: 39.6A 45.5A 51.5A 57.4A Dial positions A B C D respectively
• overload relay: 75A
• NEMA: IEC
• Class: 20
• Series: H
• Breaker Feature: Standard Trip
• Nema Size: 2
• Product Name: Eaton Freedom NEMA heater coil
• Catalog Number: H2016B-3
• Product Length/Depth: 1.8 in
• Product Height: 3.2 in
• Product Width: 1.8 in
• Product Type: Heater coil
• Design: NEMA, IEC
• Full load current range: 39.6A 45.5A 51.5A 57.4A Dial positions A B C D respectively
• Special features: Used with starter size 2, IEC Sizes G-K (Series B)
• Trip Type: Standard
• Type: Freedom/Definite Purpose Heater Pack
• Used with: Used with starter size 2, IEC Sizes G-K (Series B)
• Commodity Level Descrip: Thermal Overload Heater Elements
• Brand Name: Series Freedom
• Manufacturer: Eaton
• Relay Current Rating: 75 Ampere
• Motor FLA: 39.6 to 57.4 Ampere
• Used On: Overload Relay
• Approval: UL, CSA
• IEC Size: G to K
• Amperage Rating: 39.6 to 57.4 A
• Number of Poles: 3
