Cutler & Hammer H2004B-3 Heater Pck .814-1.32A Set of 3

Product Description

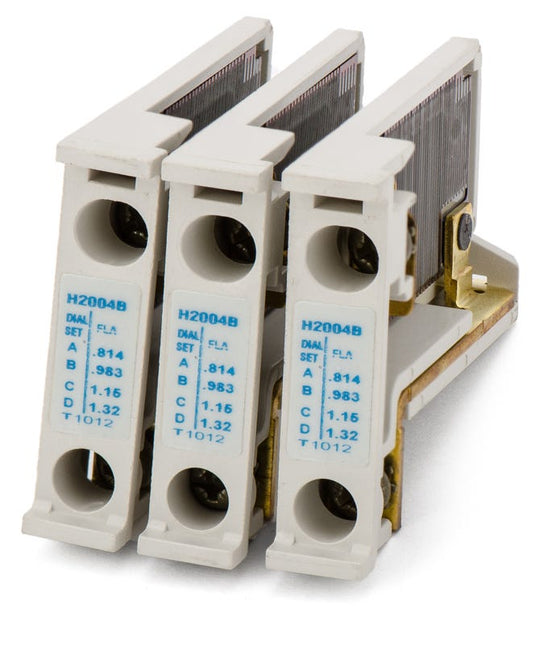

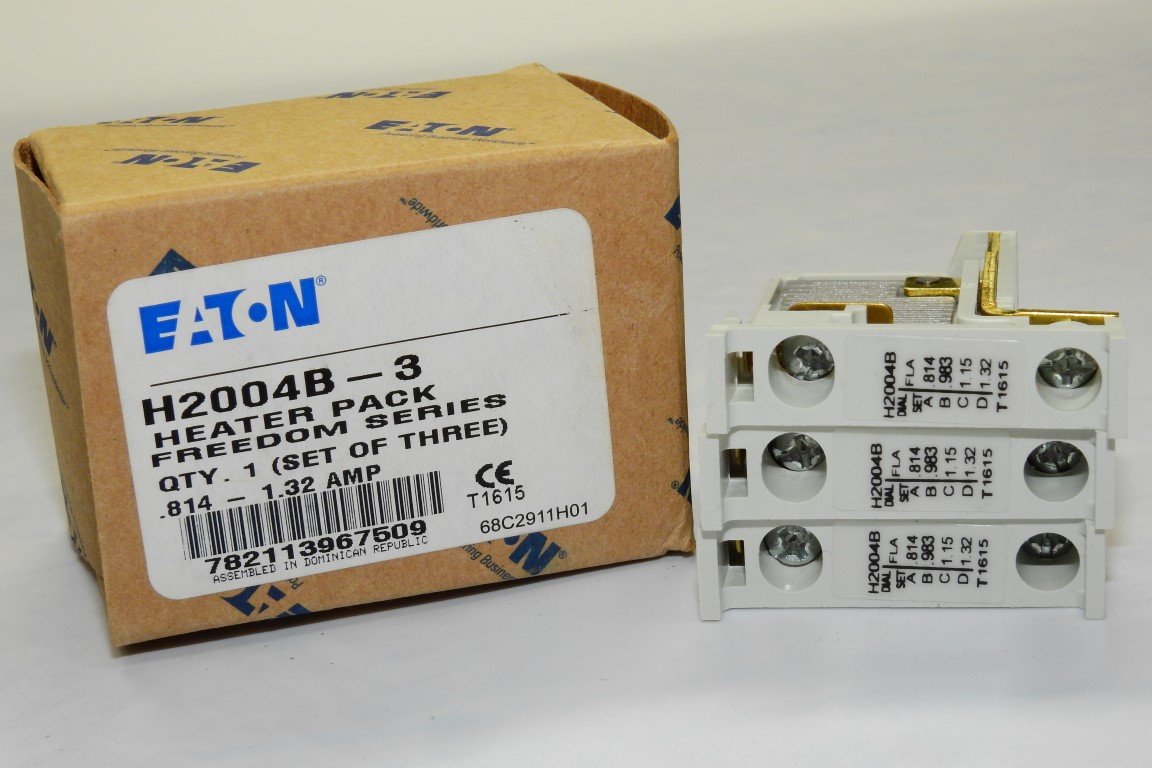

The CUTLER & HAMMER H2004B-3 is a heater pack with a full load range of 0.814-1.32A, and is provided as a set of 3. This heater pack is designed for use with Freedom Series Starters and overload relays of 32 or 75 A. It adheres to Class 20, NEMA, and IEC standards.

• Eaton Freedom NEMA heater coil
• Standard Trip
• Class 20

Product Highlights

This heater pack is suitable for NEMA Sizes 00-0 Series C, NEMA Sizes 1-2 Series B, IEC Sizes A-F Series C and IEC Sizes G-K Series B Overload Relay.

Product Information

Standard Information

• Brand: CUTLER & HAMMER
• Manufacturer Part Number: H2004B-3

Technical Specifications

• full load range: 0.814A/0.983A/1.15A/1.32A
• overload relay: 32 or 75 A
• Class: 20
• Standard Trip: Standard Trip
• NEMA: NEMA
• IEC: IEC
• Brand: CUTLER & HAMMER
• MPN: H2004B-3
• Manufacturer: Cutler Hammer
• Catalog Number: H2004B-3
• Heater coil Type: Heater coil
• Design: NEMA, IEC
• Full load current range: 0.814A 0.983A 1.15A 1.32A Dial positions A B C D respectively
• Special features: Used with starter sizes 00-0 (Series C), Sizes 1-2, 5, 7-8 (Series B), IEC Sizes A-F (Series C), IEC Sizes G-K (Series B), IEC Sizes P, R-S, W-X, Z
• Trip Type: Standard Trip, Class 20
• Type: Freedom/Definite Purpose Heater Pack
• Used with: Used with starter sizes 00-0 (Series C), Sizes 1-2, 5, 7-8 (Series B), IEC Sizes A-F (Series C), IEC Sizes G-K (Series B), IEC Sizes P, R-S, W-X, Z
• Series: Freedom Series
• Amperage: 0.81-1.32
• Approval: UL, CSA, IEC
• Protection: Thermal
• For Use With: Starter Sizes 00-0 (Series C), Sizes 1-2, 5, 7-8 (Series B), IEC Sizes A-F (Series C), IEC Sizes G-K (Series B), IEC Sizes P, R-S, W-X, Z, Thermal Overload Relays, Magnetic Motor Starters and Motor Controls
• Standards: NEMA
• Accessory Type: Heater Pack
• Motor, Amp, Full Load: 0.814-1.32 FLA
• NEMA Size: 00 – 0
• Suitable For Use With: NEMA Sizes 00-0 Series C, NEMA Sizes 1-2 Series B, IEC Sizes A-F Series C and IEC Sizes G-K Series B Overload Relay
• Overload Relay Current: 32/75 A Overload
• Full Load Current: 0.814 - 1.32 A
