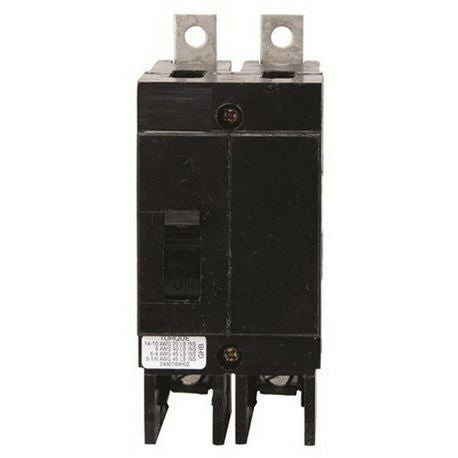

Cutler-Hammer GHB2100 100A 2P CB

Product Description

The Cutler-Hammer GHB2100 is a molded case circuit breaker with a current rating of one hundred amperes. This two-pole breaker is designed for use with voltages of 480Y/277 VAC and 125/250 VDC. The G-frame ensures reliable protection in electrical assemblies and panels.

• Two-pole design for effective circuit protection.
• Fixed thermal and magnetic trip types for enhanced safety.
• UL Listed and certified for use in various applications.

Product Highlights

This circuit breaker is suitable for panelboards, switchboards, and motor control centers, ensuring dependable branch circuit protection.

Product Information

Standard Information

• Manufacturer: Cutler-Hammer
• Family Group: Distribution Equipment

Technical Specifications

• Current Rating: 100 A
• Voltage Rating: 480Y/277 VAC, 125/250 VDC
• Number of Poles: Two
• Trip Type: Fixed thermal, fixed magnetic
• Frame: G
• Interrupt Rating: 14 kA
• Dimensions: 6.1 inches L x 3.7 inches W x 2.9 inches H
• Frequency Rating: 50/60 Hz
• Enclosure Type: NEMA 4
• Mounting Type: Bolt-On
