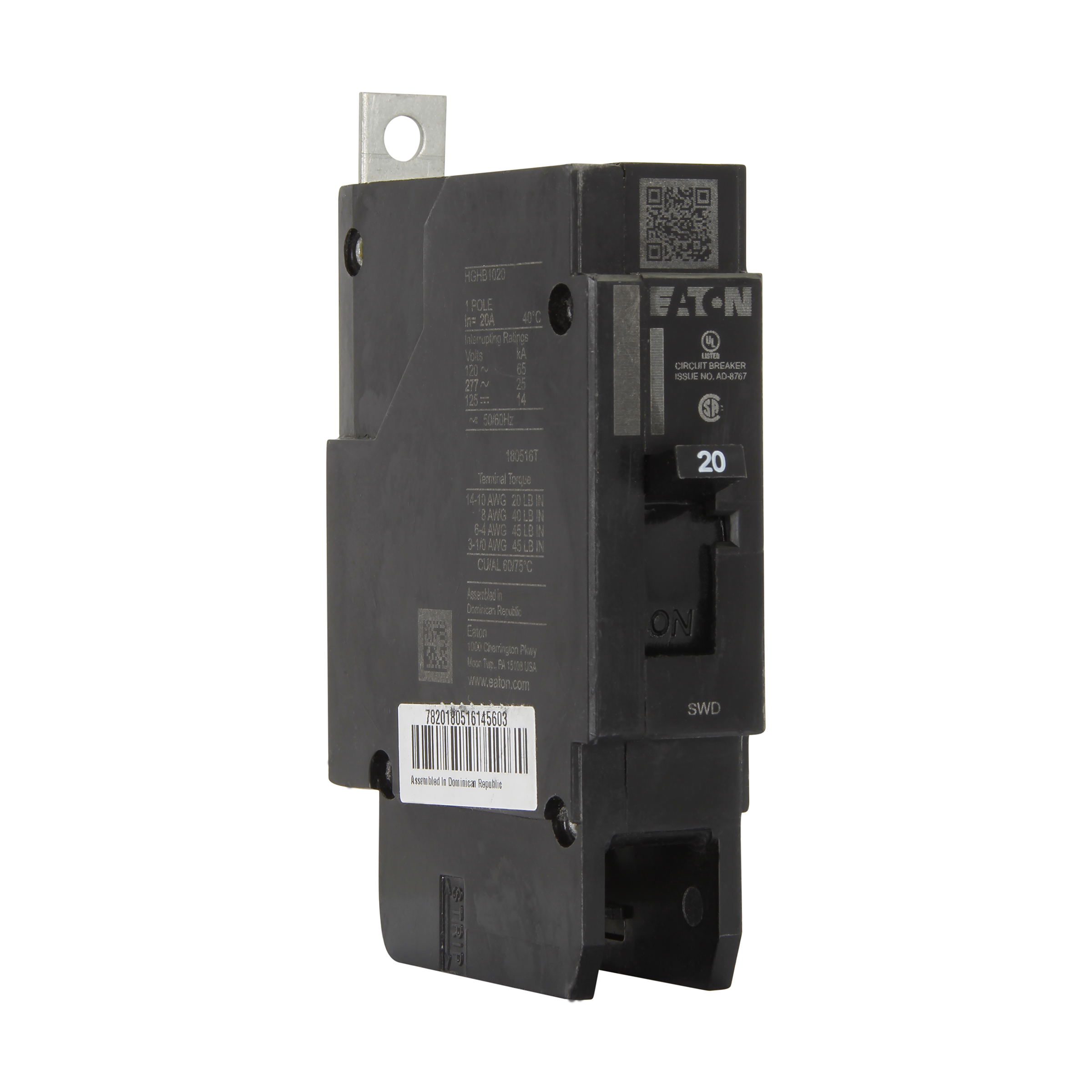

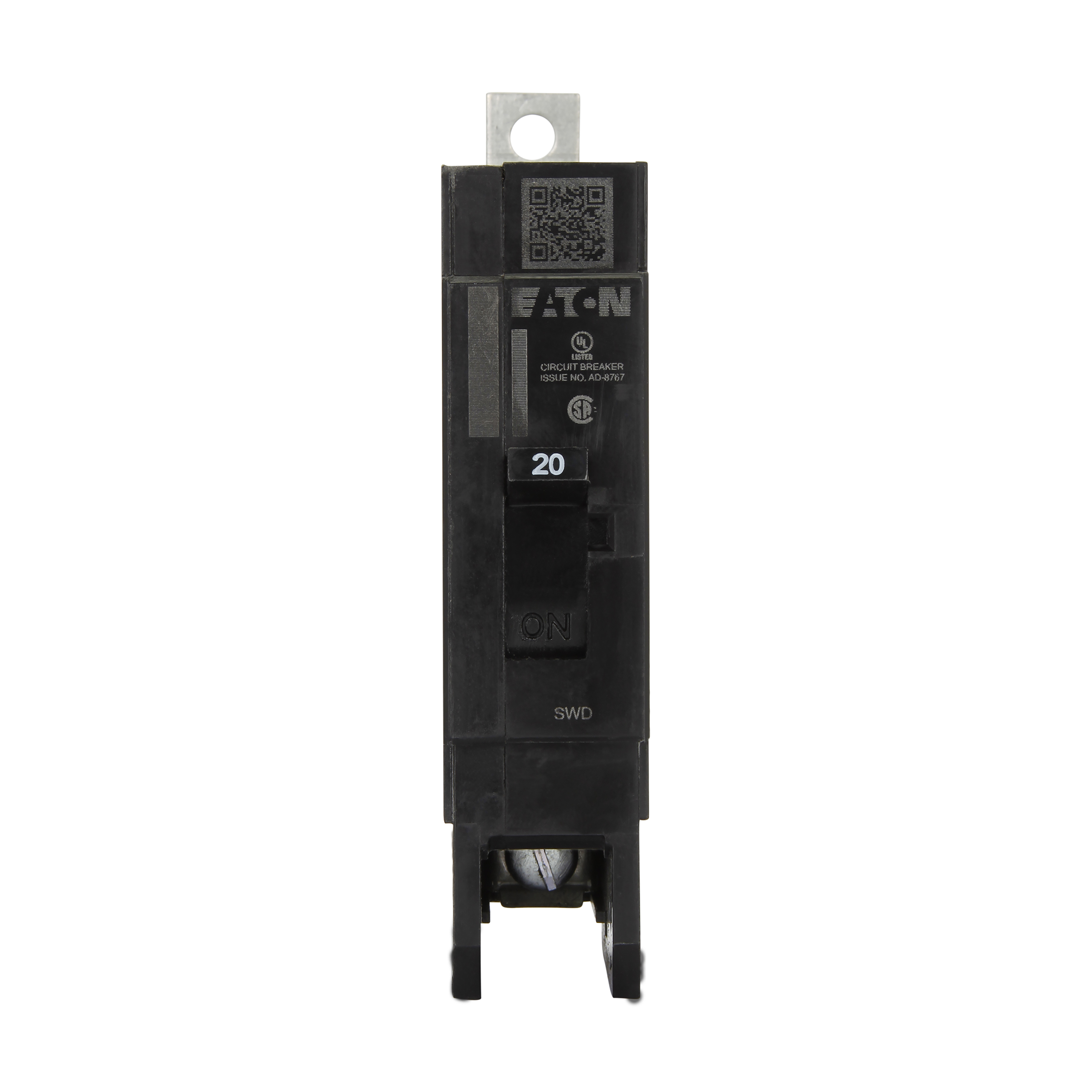

Cutler-Hammer GHB1020 Circuit Breaker 20A 1P GHB

Product Description

The Cutler-Hammer GHB1020 is a thermal magnetic circuit breaker with a current rating of twenty amps and a voltage rating of two hundred seventy-seven volts AC and one hundred twenty-five volts DC. It is designed for effective circuit protection and is suitable for various applications in electrical distribution systems. This single-pole breaker has a fixed thermal and magnetic trip type.

• Molded case circuit breaker type
• Single-pole configuration
• Interruption rating of fourteen kiloamperes at two hundred seventy-seven volts AC

Product Highlights

Perfect for use in residential and commercial electrical systems, ensuring safety and reliability.

Product Information

Standard Information

• Brand: Cutler-Hammer
• MPN: GHB1020

Technical Specifications

• Amperage Rating: 20A
• Voltage Rating: 277 Vac, 125 Vdc
• Trip Type: Fixed thermal, fixed magnetic
• Number of Poles: Single-pole
• Frame Size: G-frame
• Interrupt Rating: 14 kAIC at 277 Vac
• Frequency Rating: 50/60 Hz
• Height: 4 inches
• Length: 2.63 inches
• Width: 1 inch
• Weight: .65 lb
