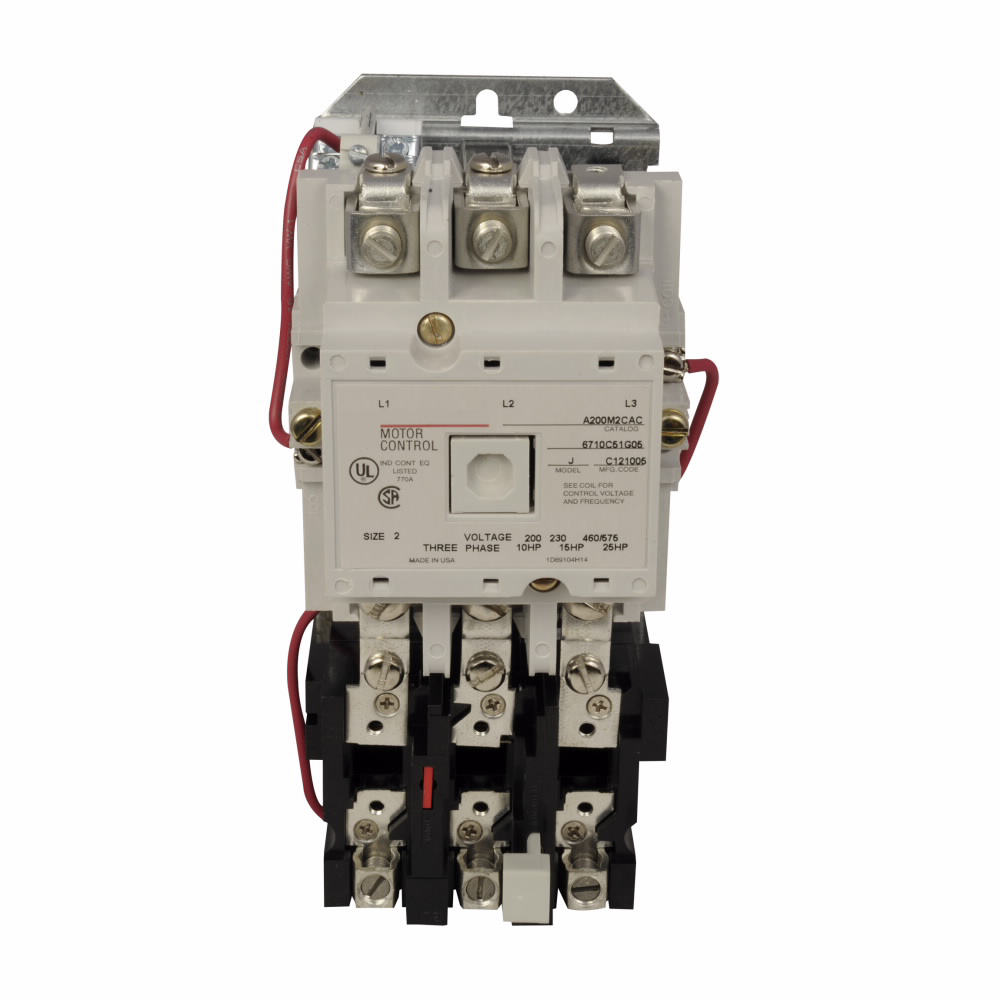

Eaton A200M2CAC Motor Control Starter 45 Amp 3-Pole 25 Hp 480/600 Volt Non-Reversing NEMA Size 2

Product Description

The Eaton A200M2CAC motor control starter is designed for industrial use with a 45 Amp rating, three poles, and a non-reversing feature. It supports motors up to 25 horsepower at 480 to 600 volts. Ideal for electrical assemblies, panels, and EOEMs, this starter is built to handle demanding environments.

• Non-reversing starter with a 45 Amp rating
• Supports motors up to 25 Hp at 480/600 Volts
• 120 VAC coil voltage for reliable performance

Product Highlights

This starter is equipped with a 120 VAC coil, three poles, and is designed for both single and three-phase motors. It features a built-in bimetal overload relay and snap-in accessories for flexible applications.

Product Information

Standard Information

• Brand: Eaton
• Manufacturer: Cutler-Hammer

Technical Specifications

• Amperage: 45 Amps
• Coil Voltage: 120 VAC
• Number of Poles: 3
• Motor Power: 25 horsepower
• Voltage Rating: 600 Volts
• Frequency Rating: 50/60 Hz
• Overload Relay: Bimetal
• Enclosure: NEMA 2
• Dimensions: 8.2 inches length, 6.1 inches width, 5 inches height
• Standards/Approvals: CSA Certified, UL Listed
