Product Description

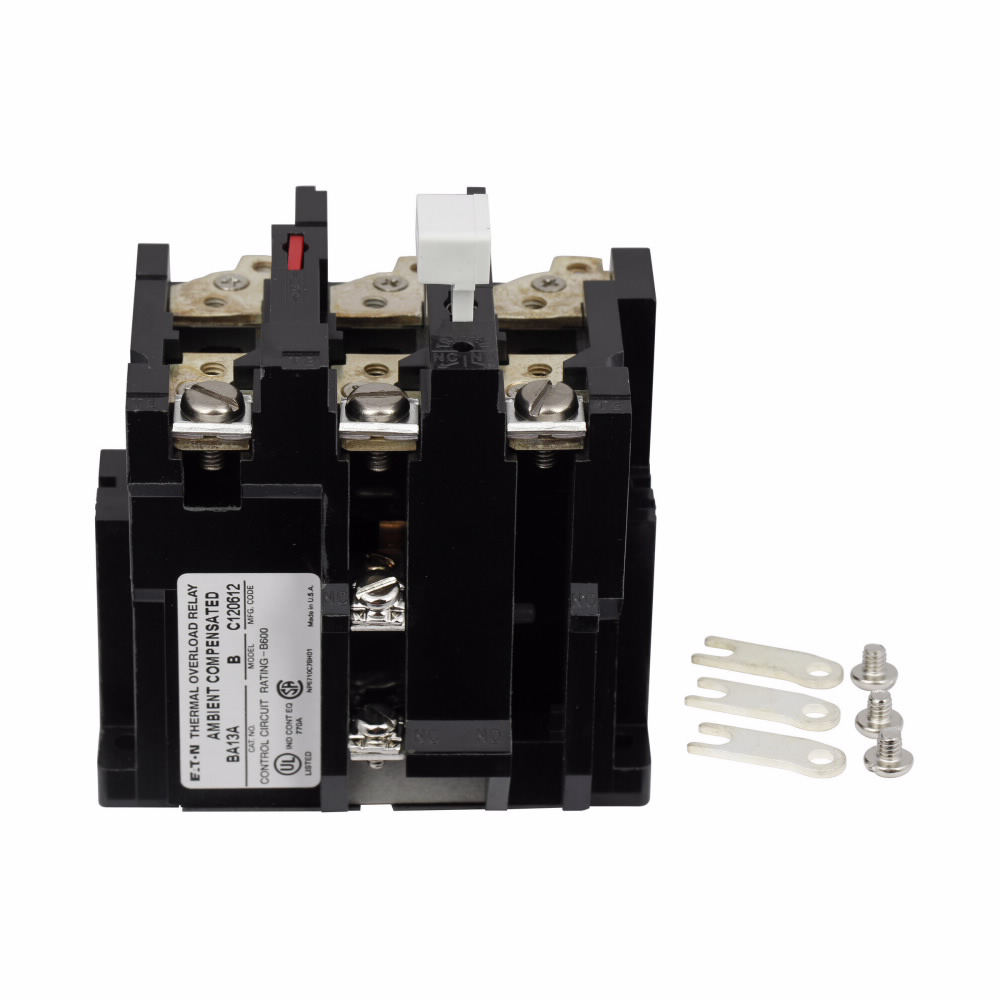

The Eaton BA13A is a thermal overload relay designed for applications requiring protection against overloads. It operates at 600 VAC and handles a full load range from zero point twenty-five to twenty-six point two amps. This model includes three poles and features one normally closed auxiliary contact. The device is mounted on a starter and is suitable for various industrial applications.
- Compatible with NEMA standards
- Class 20 thermal trip rating
- Adjustable for custom overload protection
Product Highlights
This relay provides reliable protection for motors in industrial facilities, ensuring safety against overload conditions. Its design features include ambient compensation to adjust to varying temperatures.
Product Information
Standard Information
-
Brand: Eaton
-
Model Number: BA13A
Technical Specifications
-
Voltage Rating: 600 VAC
-
Full Load Amps: 0.25 - 26.2 A
-
Number of Poles: 3
-
Auxiliary Contact: 1NC
-
Type: Thermal Type B, Class 20
-
Mounting Type: Starter
-
Trip Type: Inverse time delay
-
Temperature Rating: 40 to 75 degrees Celsius
-
Physical Dimensions: 3.4 inches height, 4.8 inches length, 3.6 inches width
