Product Description

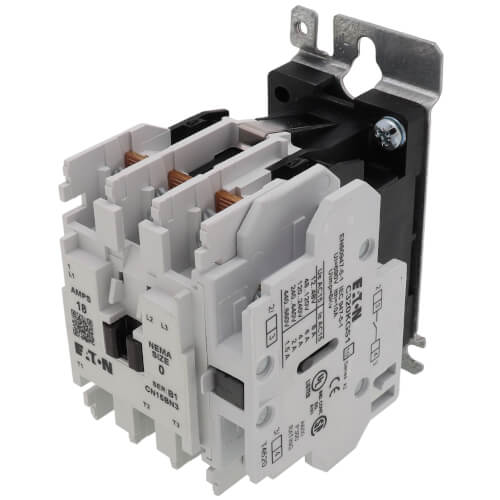

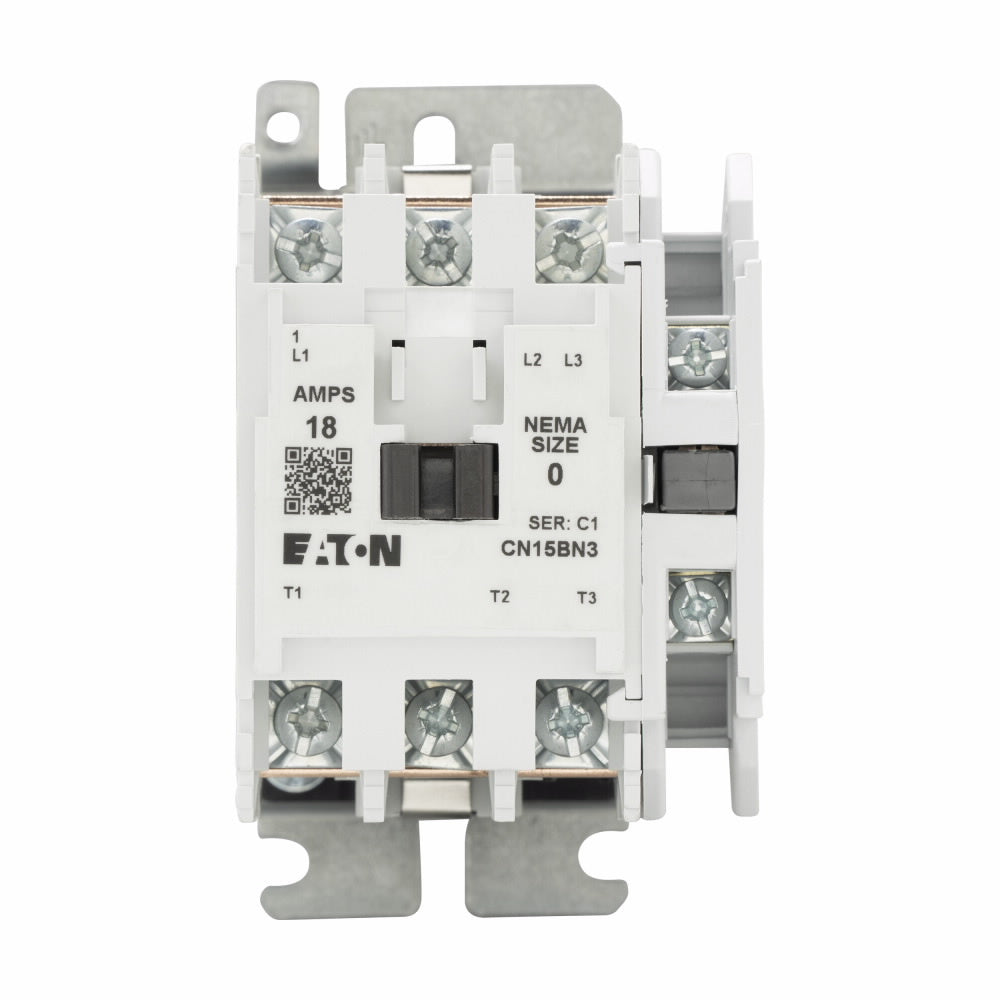

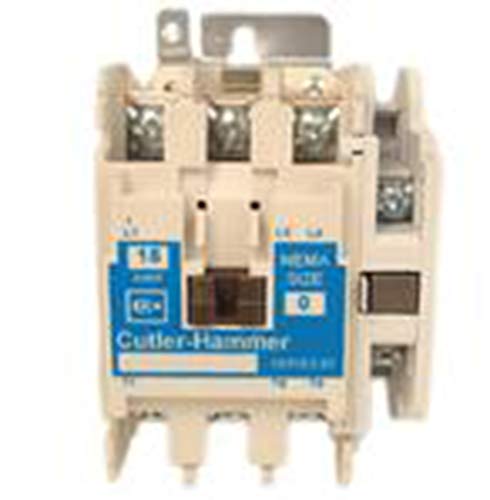

The Eaton CN15BN3AB Freedom Series NEMA Non-Reversing Contactor ensures superior performance for controlling motors in various industrial settings. Designed for reliability and efficiency, this three-pole contactor supports up to five horsepower motors across multiple voltages.
- Enhanced electrical endurance suitable for high-demand applications.
- Compact form factor aiding in easier installation and space management.
- Engineered with high-grade insulating materials for improved durability and safety.
Product Highlights
Incorporating state-of-the-art technology, Eaton's Freedom Series contactors provide a robust solution for motor control. Their exceptional construction from impact and temperature resistant materials ensures a long operational life, even in harsh environments.
Product Information
Standard Information
-
Application: Specifically for commercial and institutional building settings.
-
Phase: Single-phase connection support.
Technical Specifications
-
Size: NEMA Size 0.
-
Rating: 18A, alluding to its capacity.
-
Control Voltage: 120V/60 Hz or 110V/50 Hz.
-
Number of Poles: 3, ensuring versatile connectivity.
-
Operating Cycles: 30,000,000 cycles, confirming robustness.
-
Operating Temperature: Ranges from -5 to 65 degrees Celsius.
-
Standards: CSA Certified and UL Listed, marking compliance with safety standards.
