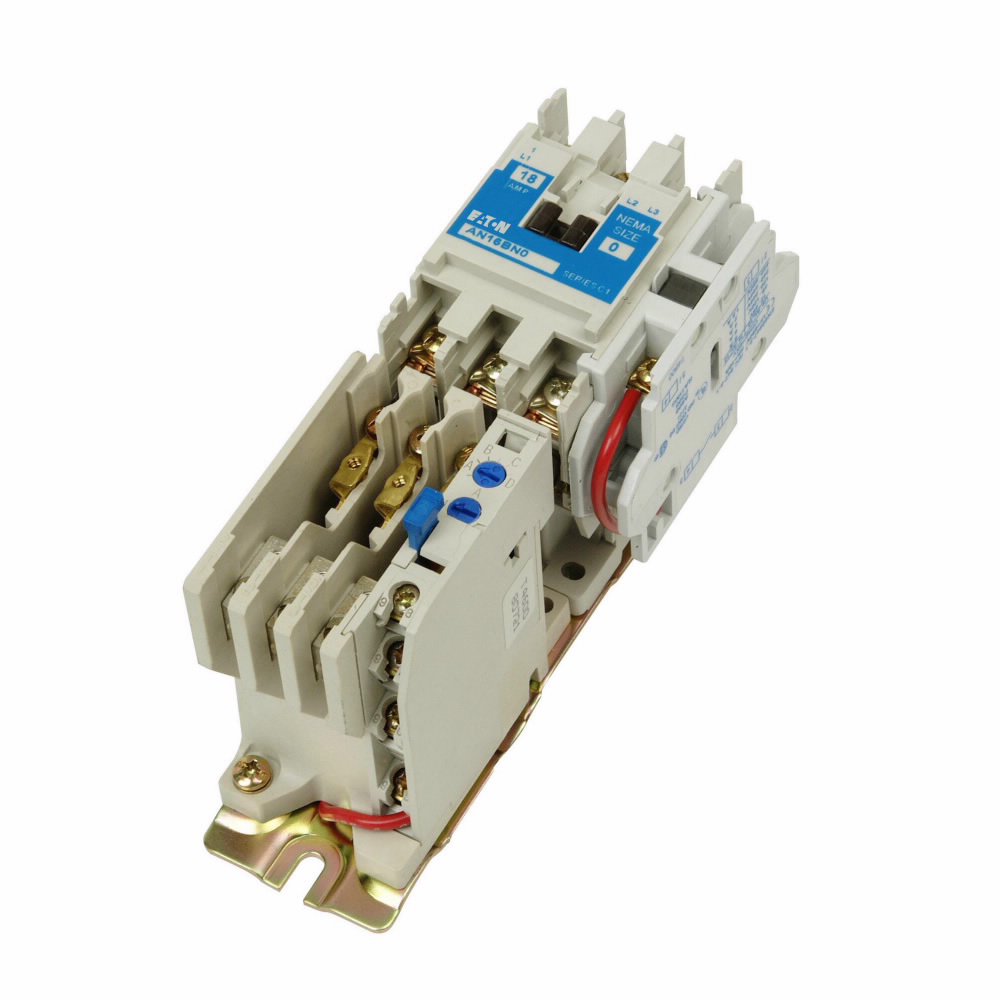

Eaton AN16BN0TC NEMA Open 3P STR Size 0 24V Coil

Product Description

Explore the Eaton AN16BN0TC, a durable, non-reversing motor control starter designed for consistent performance in controlling motor operations. Optimally crafted for easy integration with stationary machinery and equipment outside the factory, this starter proves essential in diverse industrial settings.

• Efficiently handles 1 hp at 115V up to 5 hp at 480,600V.
• Incorporates a 24V coil in both 50 Hz and 60 Hz setups.
• Featuring three poles and a size 0 classification for broad compatibility.

Product Highlights

This motor starter is equipped with a C306 bi-metal overload relay ensuring protection and reliability. Its compact design allows for horizontal mounting, making it suitable for environments with spatial constraints.

Technical Specifications

• Brand: Eaton
• MPN: AN16BN0TC
• Type: Motor control starter
• Number of Poles: 3 Pole
• Amperage: 18 Amp
• Coil Voltage: 24 VDC
• Power Capacity: 1 hp at 115V, 2 hp at 230V, 3 hp at 208,240V, 5 hp at 480,600V
• Certifications: UL Listed, CSA Certified
