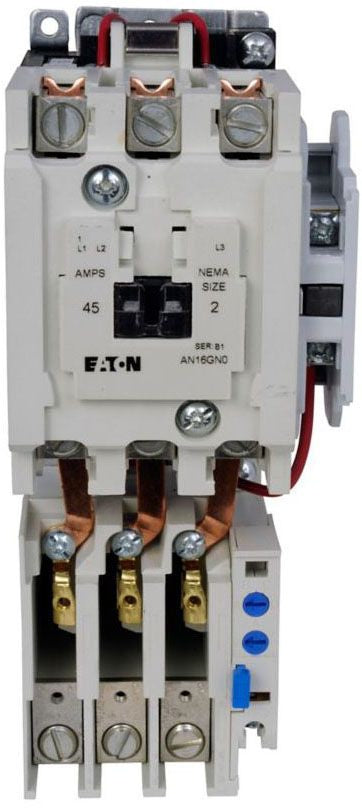

Eaton AN16GN0BB NEMA Freedom Series Non-Reversing Reset Overload Relay Starter

Brand: EATON
SKU: AN16GN0BB
Availability: Out Of Stock
$1,164.60
$1,164.60
Manuals:
HAVE A QUESTION?

Our team is ready to help!

  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Product Description

The Eaton AN16GN0BB NEMA Freedom Series Non-Reversing Reset Overload Relay Starter is designed for industrial applications. It supports motors up to 3 hp at 115V, 7-1/2 hp at 230V, 10 hp at 208V, and 15 hp at 240V. The unit operates with a coil voltage of 240V/60 Hz or 220V/50 Hz, rated for 45 amps and 3 poles.

  • Supports multiple motor horsepower ratings
  • Operates with 240V/60 Hz or 220V/50 Hz coil voltage
  • Rated for 45A and 3 poles, size 2

Product Highlights

Ideal for electrical assemblies and OEM control panels, this non-reversing motor starter relay offers reliable performance. It features thermal overload protection and meets UL and CSA standards.

Product Information

Standard Information

  • Brand: Eaton
  • Manufacturer: Cutler-Hammer / Eaton

Technical Specifications

  • Catalog Number: AN16GN0BB
  • Size: 2
  • Type: Motor control starter
  • Width: 4.38 inches
  • Height: 6 inches
  • Length: 11 inches
  • Weight: 4 pounds
  • Amperage: 45A
  • Standard: CSA, UL
  • UPC: 782113971858
  • Applications: Electrical assemblies, panels, and OEMs
  • Mounting Type: Horizontal
  • Number of Poles: 3
  • Number of Phases: 1 or 3
  • Voltage Rating: 220/240V
  • Frequency Rating: 50/60 Hz
  • Motor Power: 3 hp at 115V, 7-1/2 hp at 230V, 10 hp at 208V, 15 hp at 240V, 25 hp at 480/600V
  • Reset Type: Automatic/Manual
  • Enclosure: NEMA 2
  • Country of Origin: Dominican Republic
