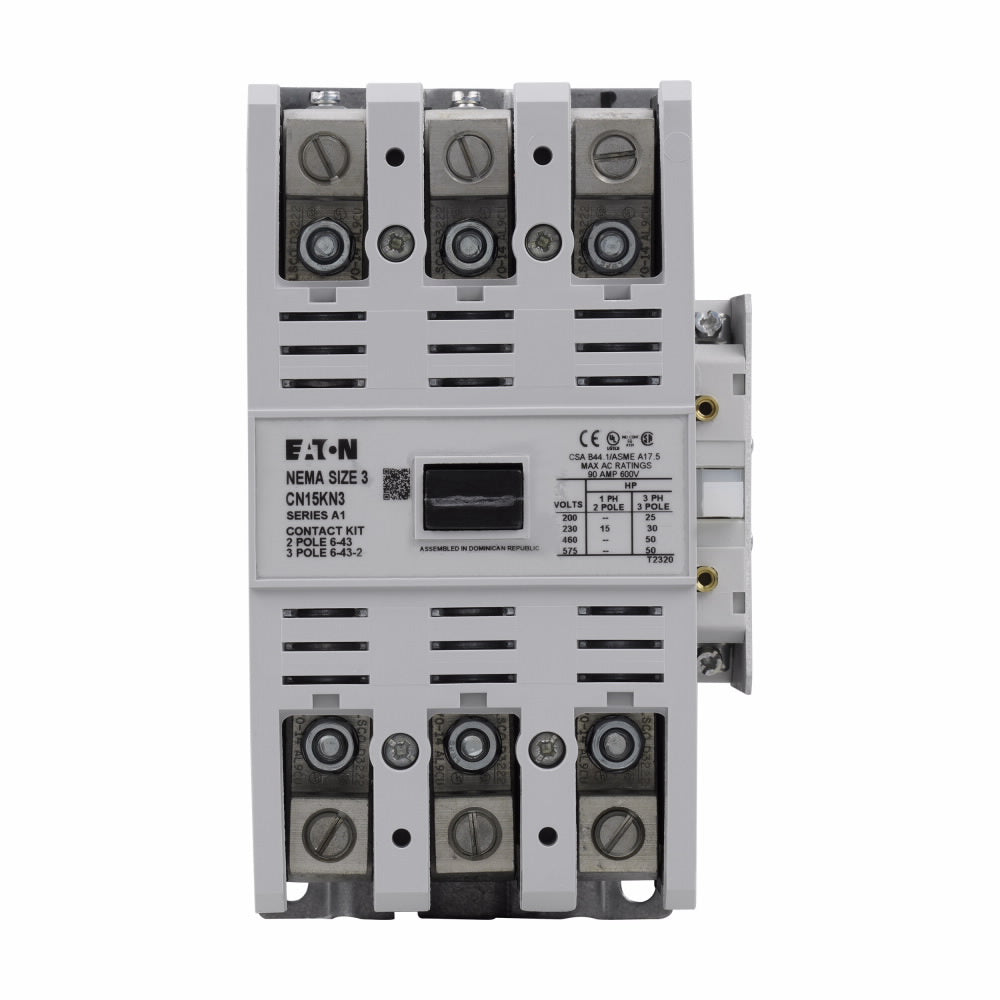

Eaton CN15KN3A Freedom NEMA Contactor 120V 90A Size 3

Product Description

Eaton's model CN15KN3A represents a robust, non-reversing contactor designed for motor and power control. This three-pole contactor operates with a 120V coil voltage and can manage applications requiring up to 90A.

• Compact, efficient design suitable for various industrial settings
• Incorporates high-quality, temperature-resistant materials
• Equipped with an auxiliary contact for broader control options

Product Highlights

Maximized for performance, this Eaton Freedom Series Contactors provides reliable operation in commercial and industrial environments. It supports motor loads with 25 hp at 208V up to 50 hp at 600V.

Product Information

Standard Information

• Brand: Eaton
• Size: NEMA Size 3

Technical Specifications

• Coil Voltage: 120/60 or 110/50 V
• Amperage: 90 Amp
• Number of Poles: 3 Pole
• Operating Cycles: 3000000 Cycles
• Operating Temperature: -5 to 65 degrees C
• Dimensions: 5.94 in L x 4.08 in W x 7.17 in H
• Standards/Approvals: CSA Certified, UL Listed
