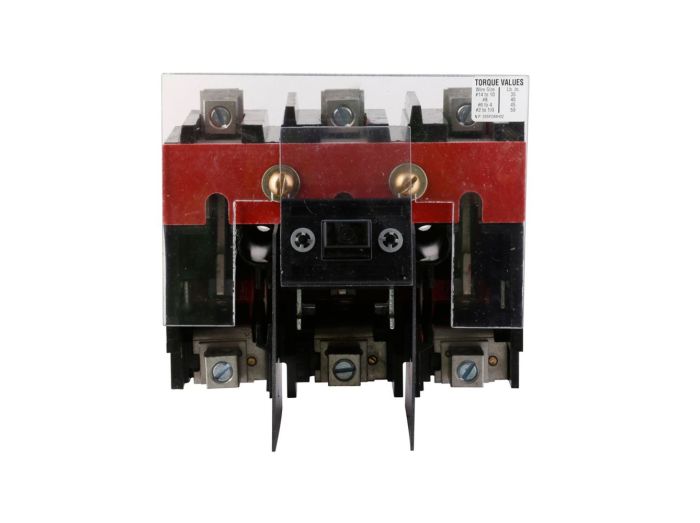

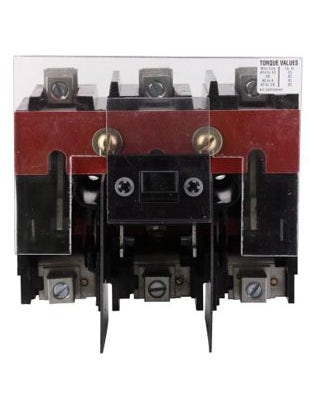

Cutler & Hammer DS26U Disconnect Switch 60A

Product Description

The CUTLER & HAMMER DS26U is a 60A disconnect switch designed for panel mounting. This three-pole, three-wire, non-fusible disconnect switch is a complete unit suitable for various applications. It is rated for up to 600 VAC and 250 VDC. The DS26U provides a reliable solution for disconnecting power in industrial and commercial settings.

• Rated for 60A current.
• Maximum voltage rating of 600 VAC and 250 VDC.
• Non-fusible disconnect switch.

Product Highlights

Panel mounted disconnect switch with a 60A current rating and a maximum voltage of 600 VAC.

Product Information

Standard Information

• Brand: CUTLER & HAMMER
• Manufacturer Part Number: DS26U
• Country of Origin: United States

Technical Specifications

• Accessory Type: Disconnect Switch
• Current Rating: 60 A
• Max Voltage: 250 VDC, 600 VAC
• Brand Name: Series DS
• Manufacturer: Eaton
• UPC: 786679046814
• UNSPSC: 39122211
• Power Rating: 10 HP at 120 VAC, 20 HP at 240 VAC, 40 HP at 480 VAC, 60 HP at 600 VAC (Standard) and 15 HP at 250 VDC
• Voltage Rating: 120/240/480/600 VAC, 250 VDC
• Wire Size: 14 to 2 AWG (Copper)/12 to 2 AWG (Aluminum)
• Approval: CSA
• Fuse Provision: Non-Fusible
