Cutler & Hammer DS200EK1 Auxiliary Contact Kit

Product Description

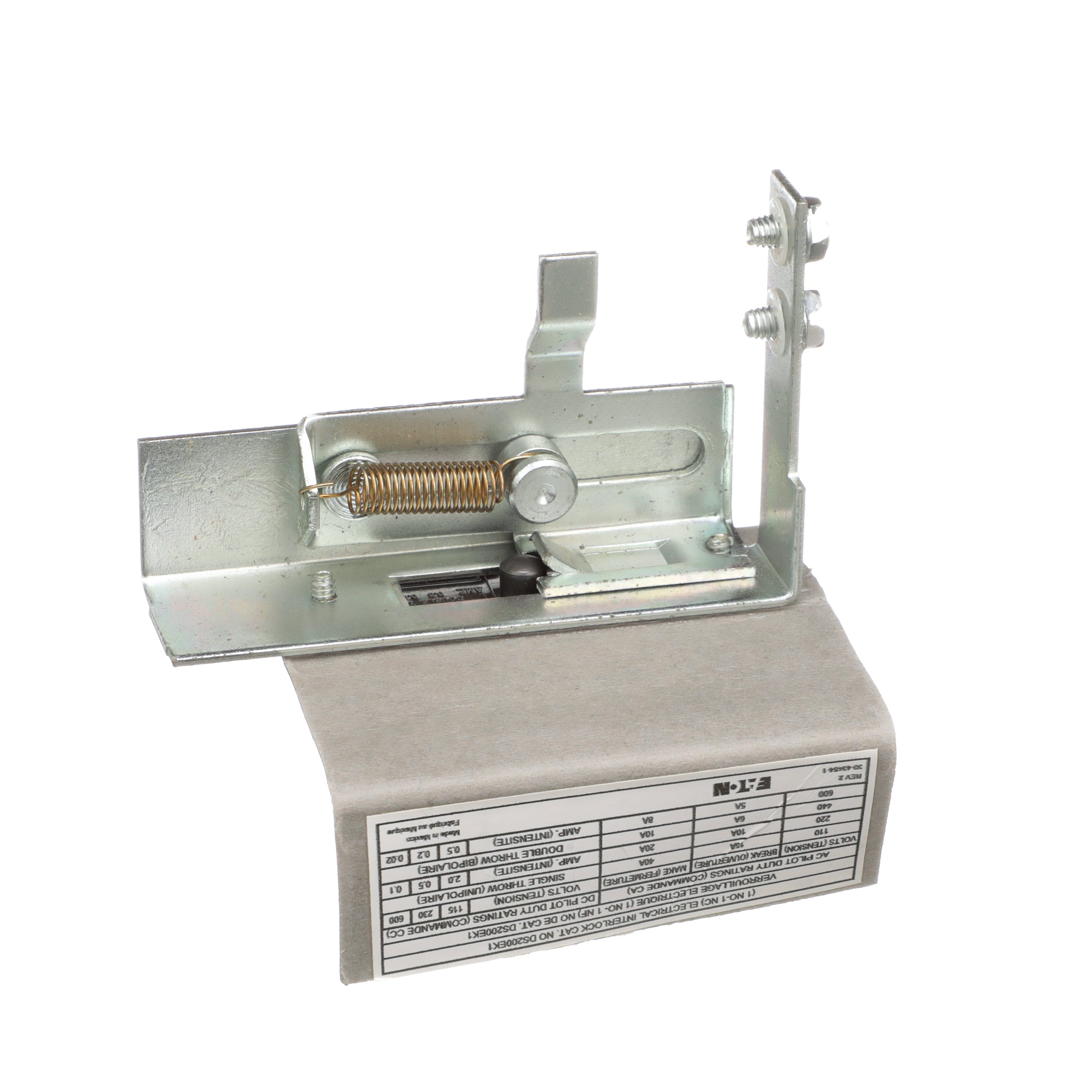

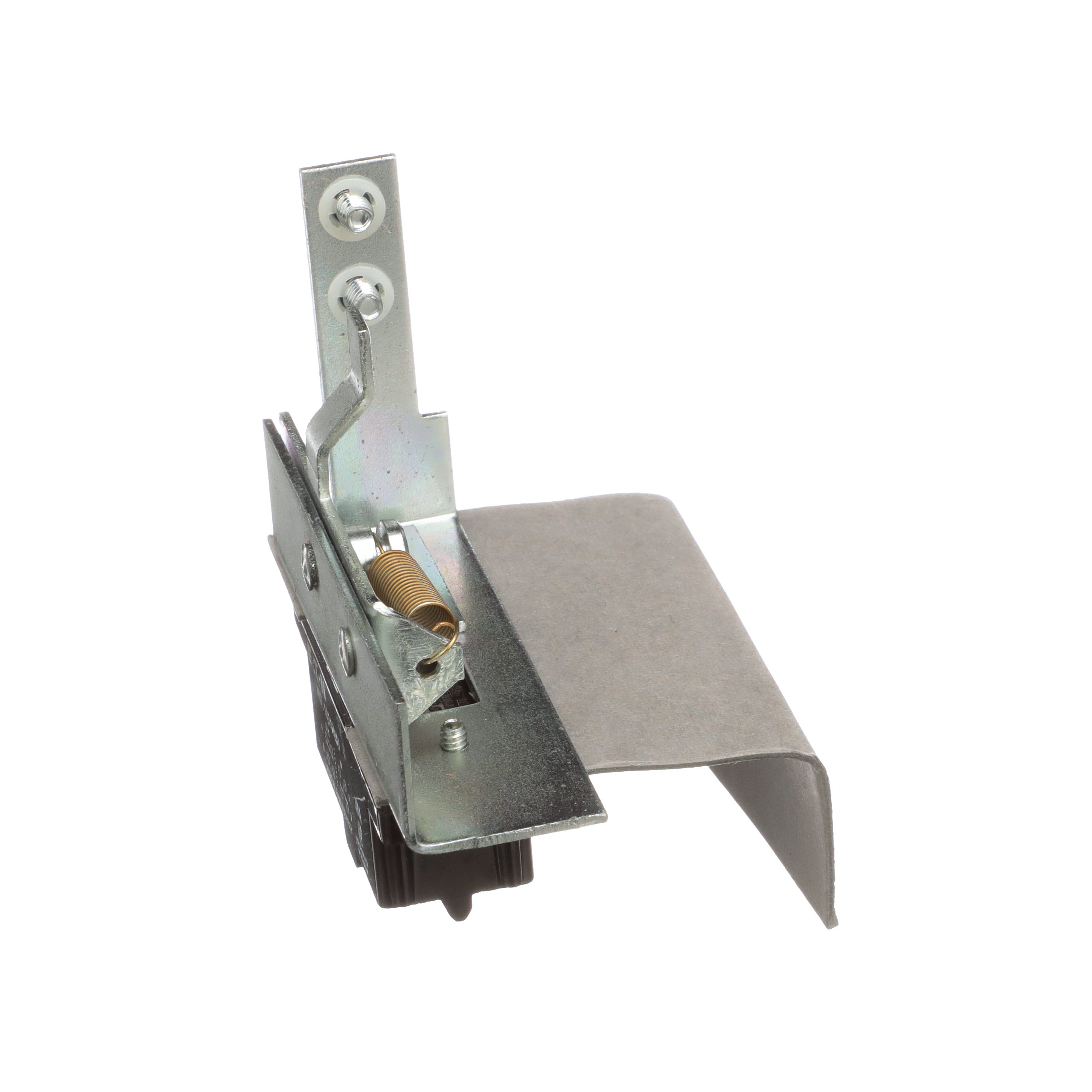

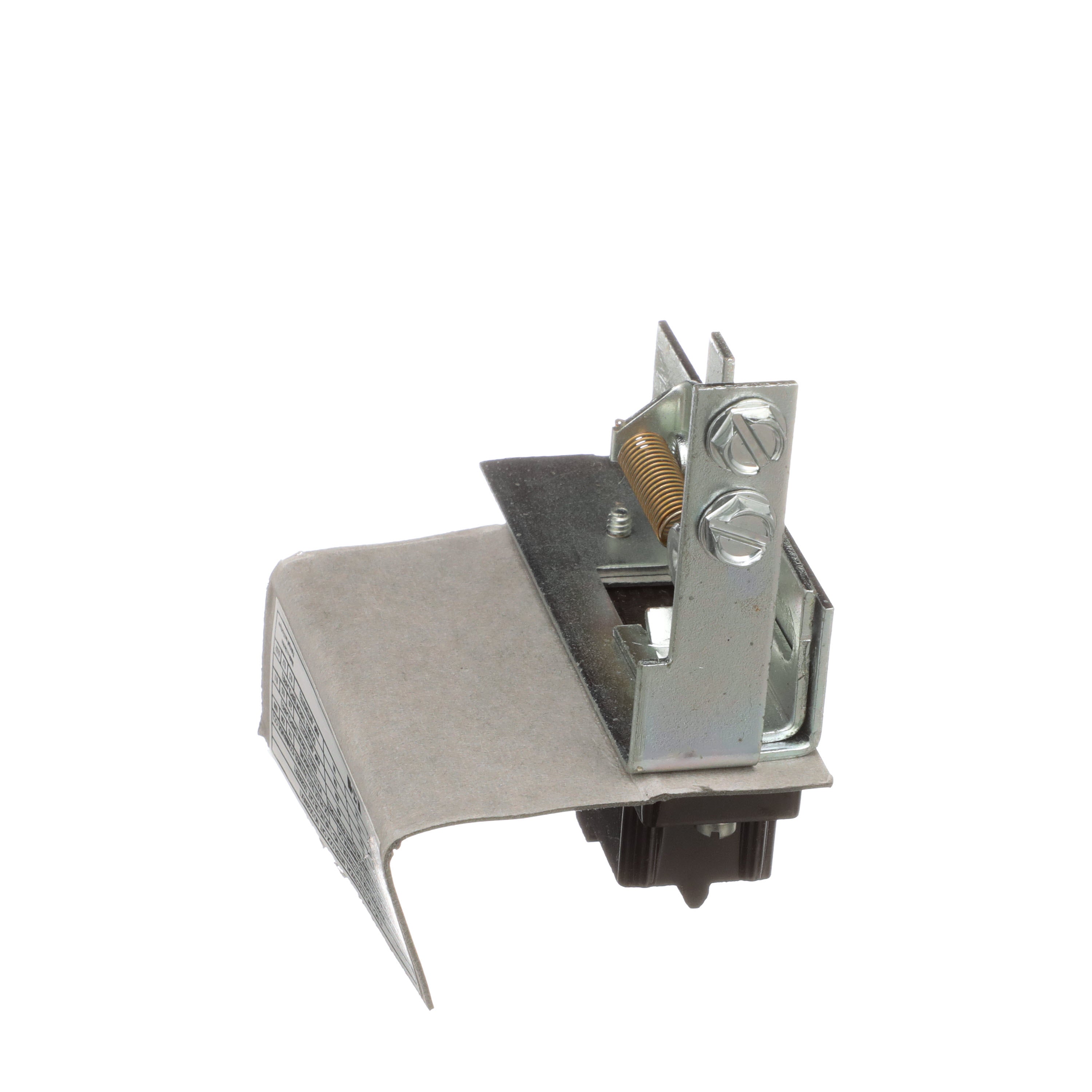

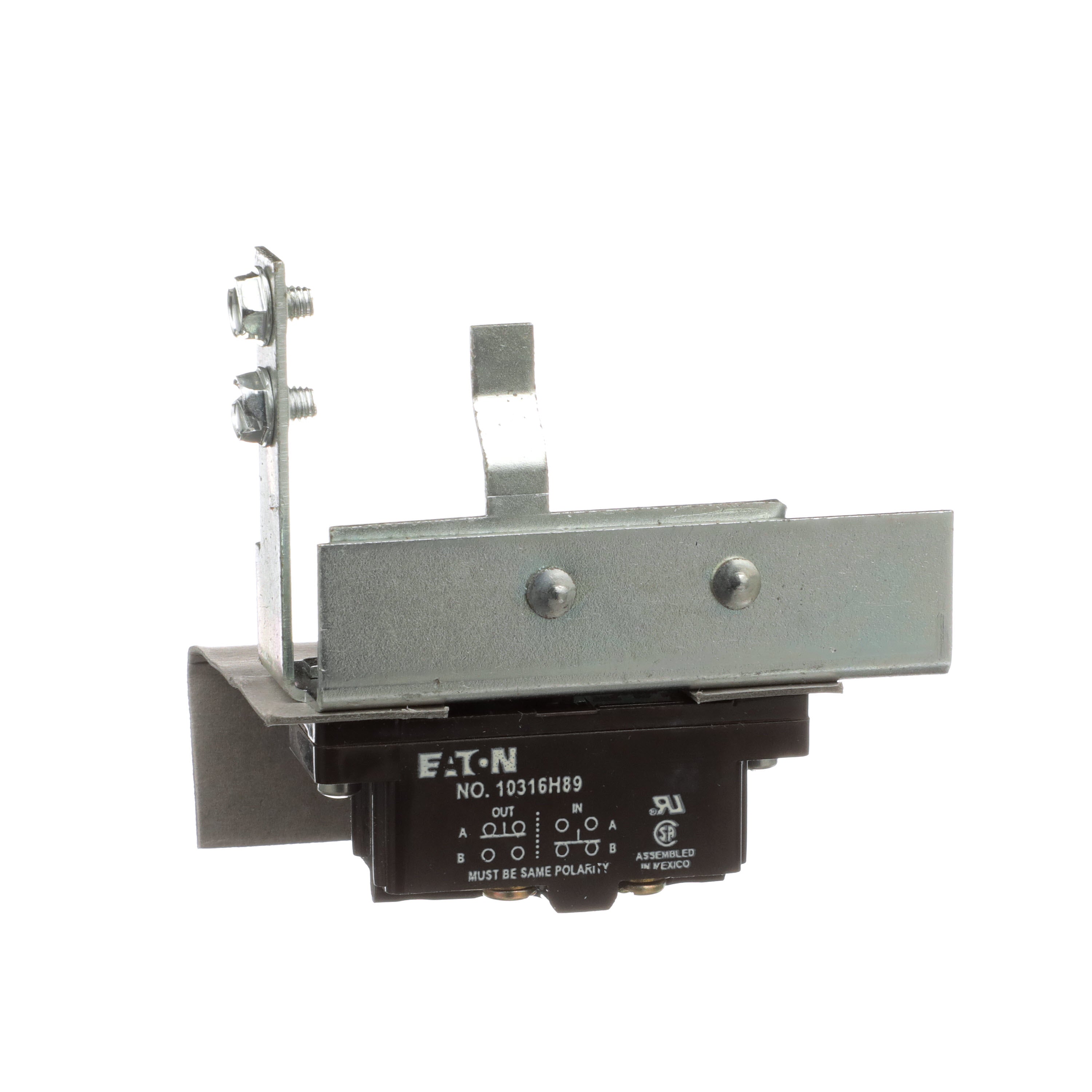

The CUTLER & HAMMER DS200EK1 is an Eaton safety switch auxiliary contact kit. It is designed for use with all switches except 30-100A general duty switches, fusible and non-fusible switches. This kit facilitates electrical interlocking in industrial applications.

• UL Listed
• Used with All Switches (except 30-100A, General Duty)
• Contact Configuration: 1NO-1NC

Product Highlights

The CUTLER & HAMMER DS200EK1 auxiliary contact kit is for use with fusible and non-fusible switches.

Product Information

Standard Information

• Brand: CUTLER & HAMMER
• Manufacturer Part Number: DS200EK1
• Country of Origin: Canada

Technical Specifications

• Product Name: Eaton safety switch auxiliary contact kit
• Catalog Number: DS200EK1
• Product Length/Depth: 5 in
• Product Height: 2 in
• Product Width: 4 in
• Certifications: UL Listed
• Special features: Used with All Switches (except 30-100A, General Duty)
• Type: Auxiliary contact kit
• Amperage Rating: 30-800A
• Product Category: Auxiliary contact Kit
• Used with: All Switches (except 30-100A, General duty)
• Voltage rating: 600 V
• Operating voltage: 600 V
• Switch type: All switches (except 30-100 A GD)
• Contact Configuration: 1NO-1NC
• Switch Current Rating: 30 TO 1200 AMPERE
• Switch Voltage Rating: 240/600 VAC
• Part #: DS200EK1
• Category: Safety Switch
• Product Range: DS Series
