Cutler-Hammer DPU222R 120/240 Volt 60 Amp 10 Hp 14 to 3 AWG Galvanized Steel Air Conditioner Disconnect Switch

Product Description

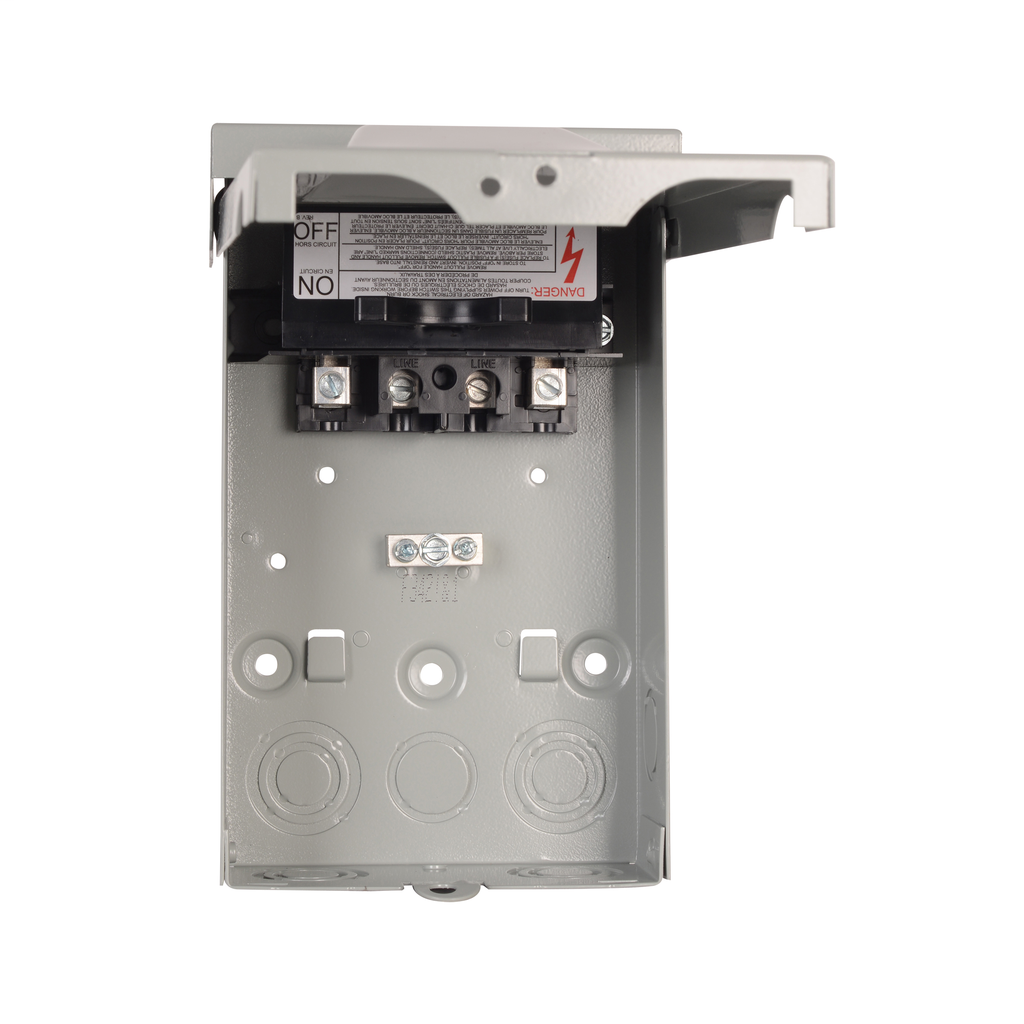

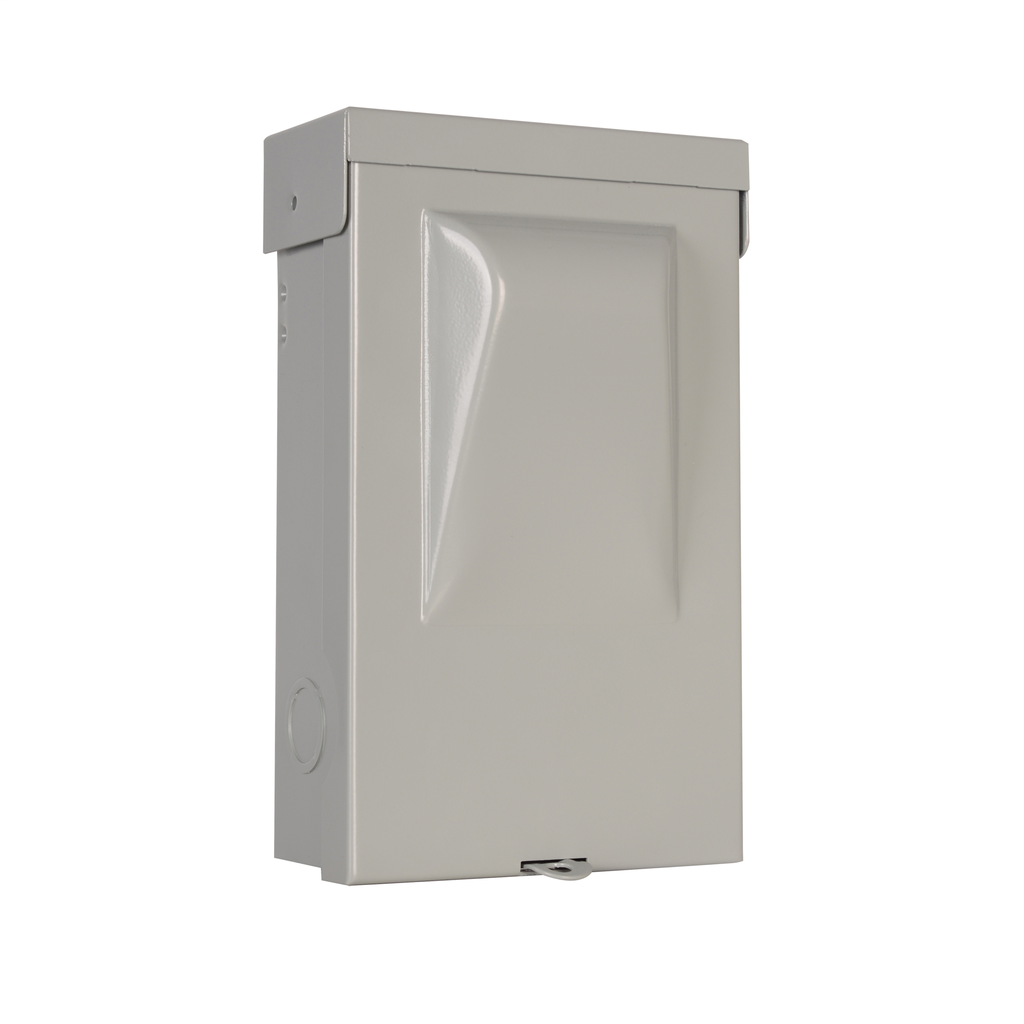

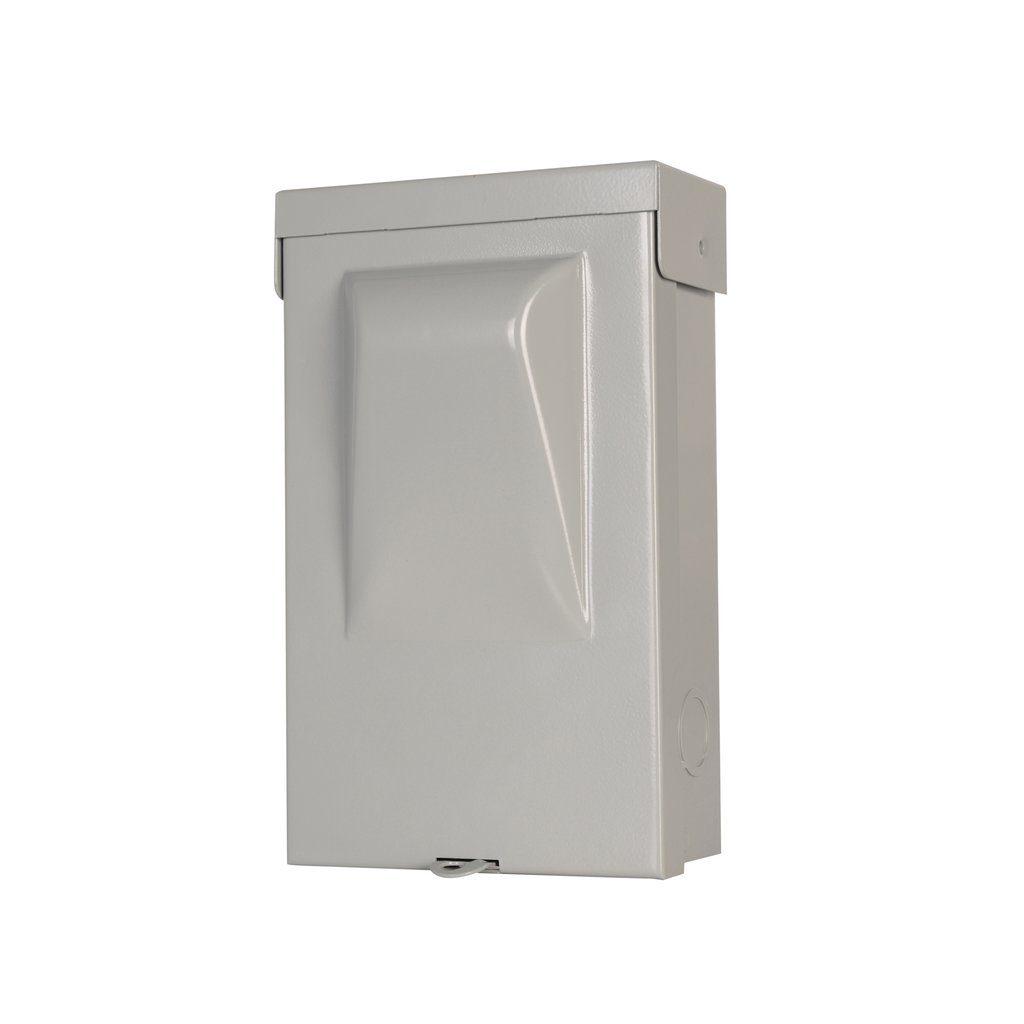

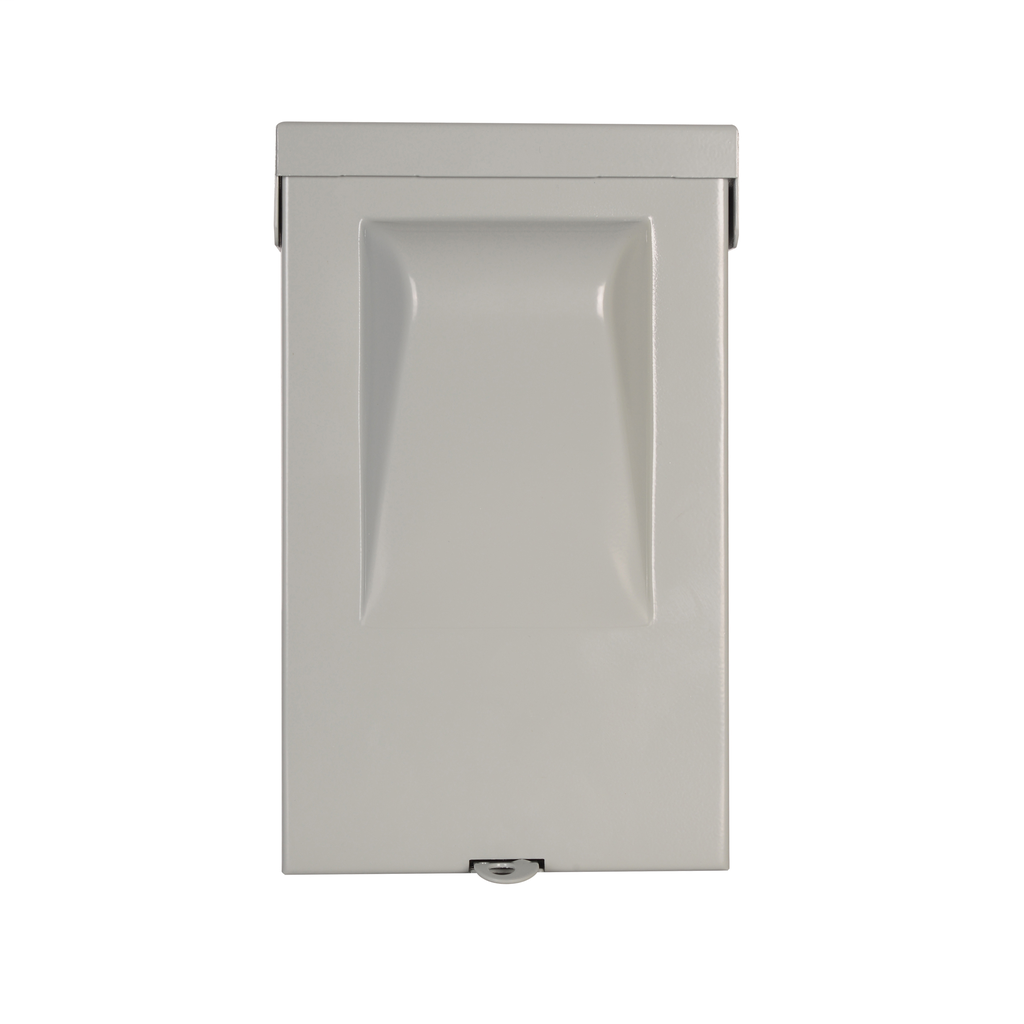

The Cutler-Hammer DPU222R is a non-fused air conditioning disconnect switch designed for reliable operation. This switch functions at 120/240 volts and handles up to 60 amps. It is suitable for 10 horsepower applications and supports wire sizes from fourteen to three AWG. Constructed with a galvanized steel enclosure, it features a NEMA 3R rating for outdoor use.

• UL Listed for safety and performance
• Applicable for electrical assemblies and panels
• Features a 10 kAIC interrupt rating

Product Highlights

Ideal for HVAC applications, this switch helps protect air conditioning units and contributes to the safe and efficient operation of electrical systems.

Product Information

Standard Information

• Brand: Cutler-Hammer Manufacturing Co.
• Manufacturer: Cutler-Hammer / Eaton

Technical Specifications

• Type: Non-fused Pullout
• Voltage: 120/240 Volt
• Amperage: 60 Amp
• Enclosure: NEMA 3R
• Material: Steel
• Horsepower: 10 hp
• Wire Size: 14-3 AWG
• Dimensions: 5.5 inches (Width) x 2 inches (Height) x 9 inches (Length)
• Weight: 3 lb
