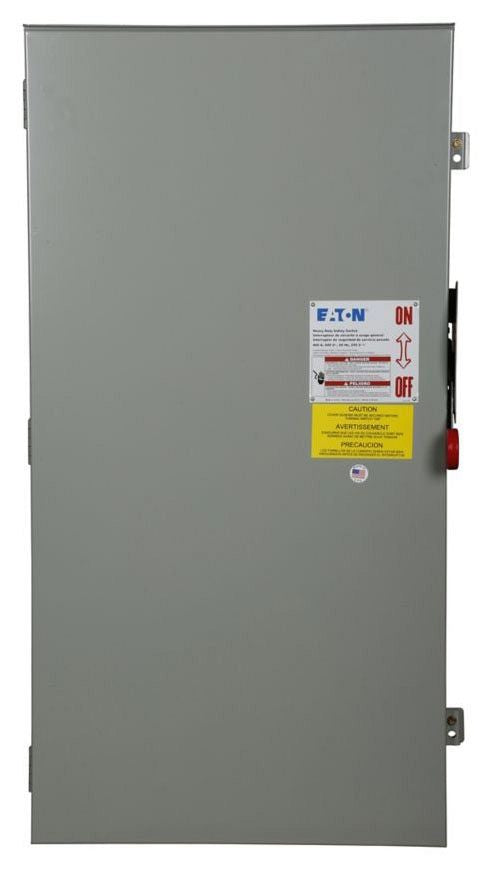

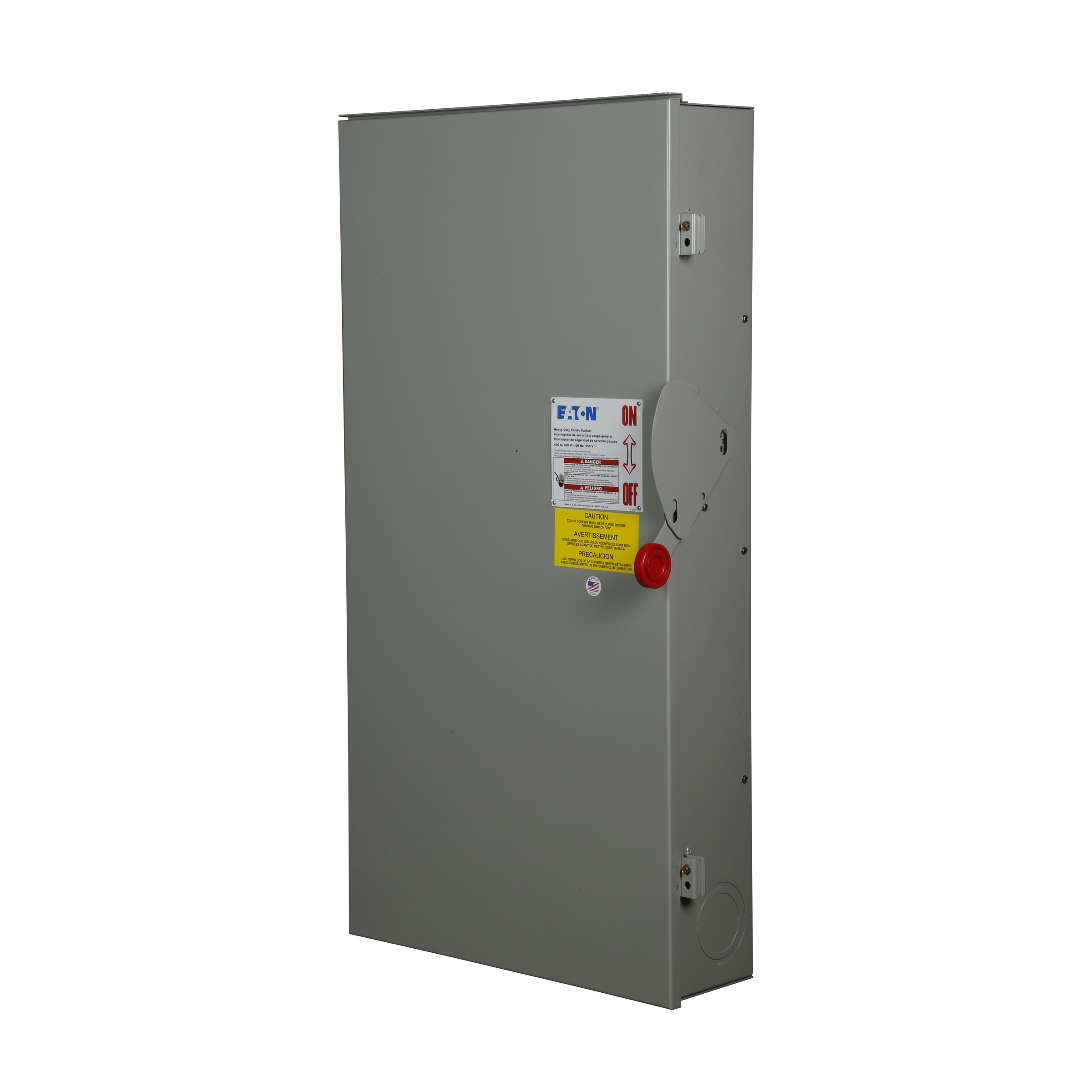

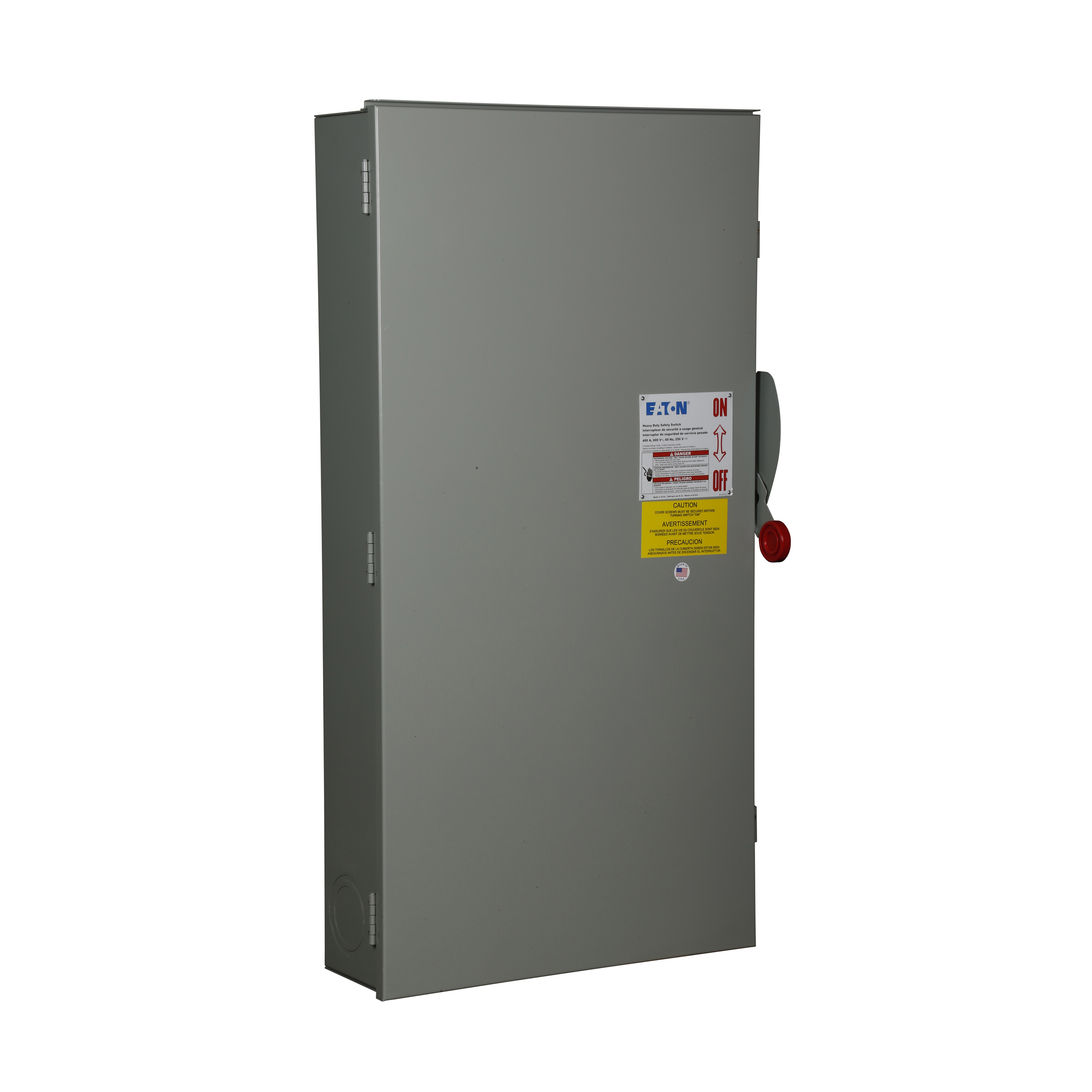

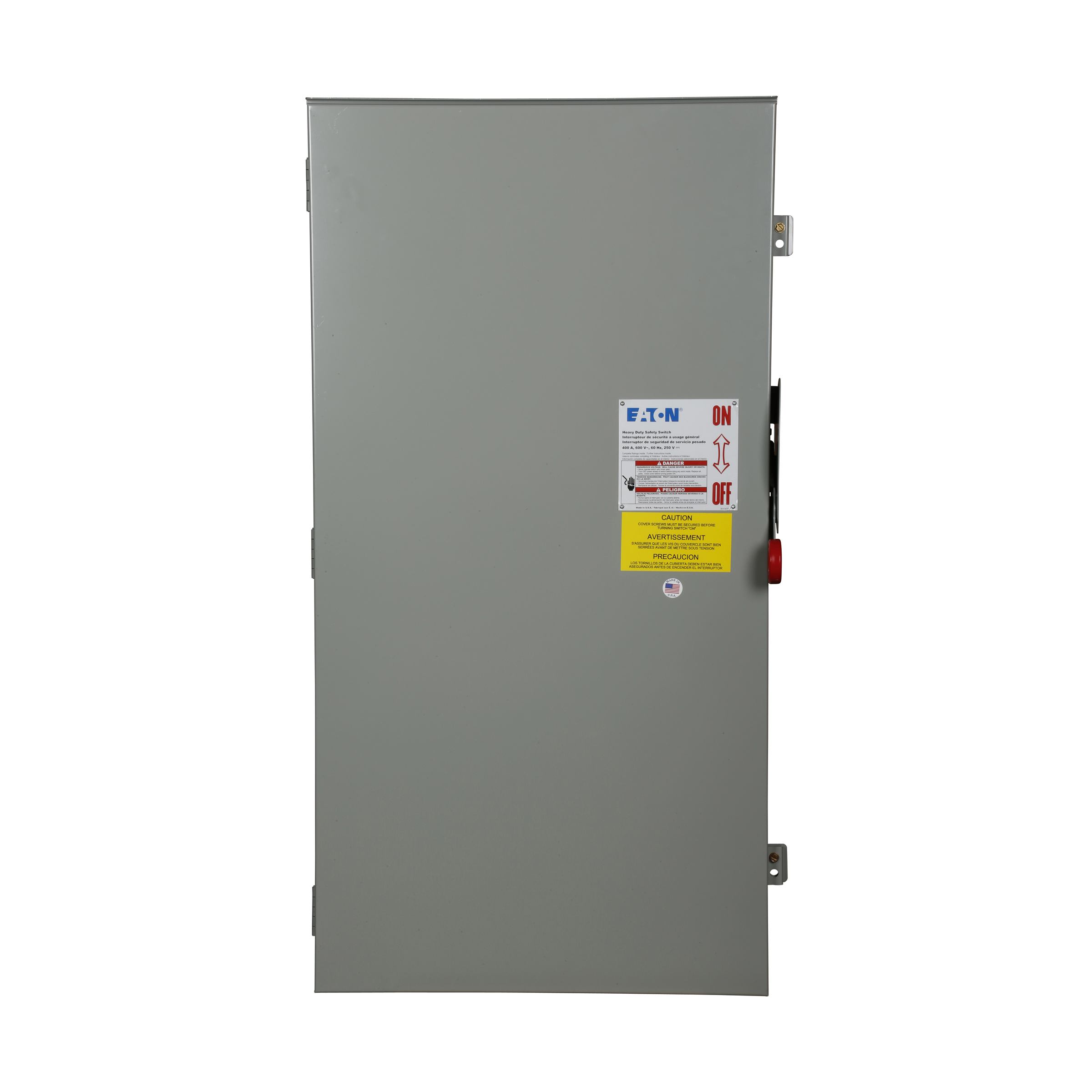

Cutler-Hammer DH365NRK CH3 DH365NRK 400A 600V SFTY SW

Product Description

The Cutler-Hammer DH365NRK is a heavy duty fusible safety switch designed for power distribution applications. This model features an amperage rating of four hundred amps and is rated for use at six hundred volts. Its enclosure is constructed from painted galvanized steel, making it durable and suitable for various commercial environments.

• Provides safety and control in electrical systems.
• Features a NEMA 3R enclosure for weather protection.
• Includes a fusible configuration with neutral for added safety.

Product Highlights

This safety switch is ideal for industrial and institutional structures that require dependable performance and safety standards.

Product Information

Standard Information

• Manufacturer: Cutler-Hammer
• UPC: 78211320726

Technical Specifications

• Type: Heavy duty fusible safety switch
• Voltage Rating: 600V
• Amperage Rating: 400A
• Enclosure: NEMA 3R
• Enclosure Material: Painted galvanized steel
• Fuse Class Provision: Class H
• Fuse Configuration: Fusible with neutral
• Number Of Poles: Three-pole
• Number Of Wires: Four-wire
• Max Hp Rating: 250, 350 hp (3PH @480/600 V)
• Weight: 151 LB
• Height: 10.25 IN
• Length: 45.5 IN
• Width: 24.38 IN
