Cutler-Hammer DH364URK CH3 DH364URK 200A 600V SFTY SW

Product Description

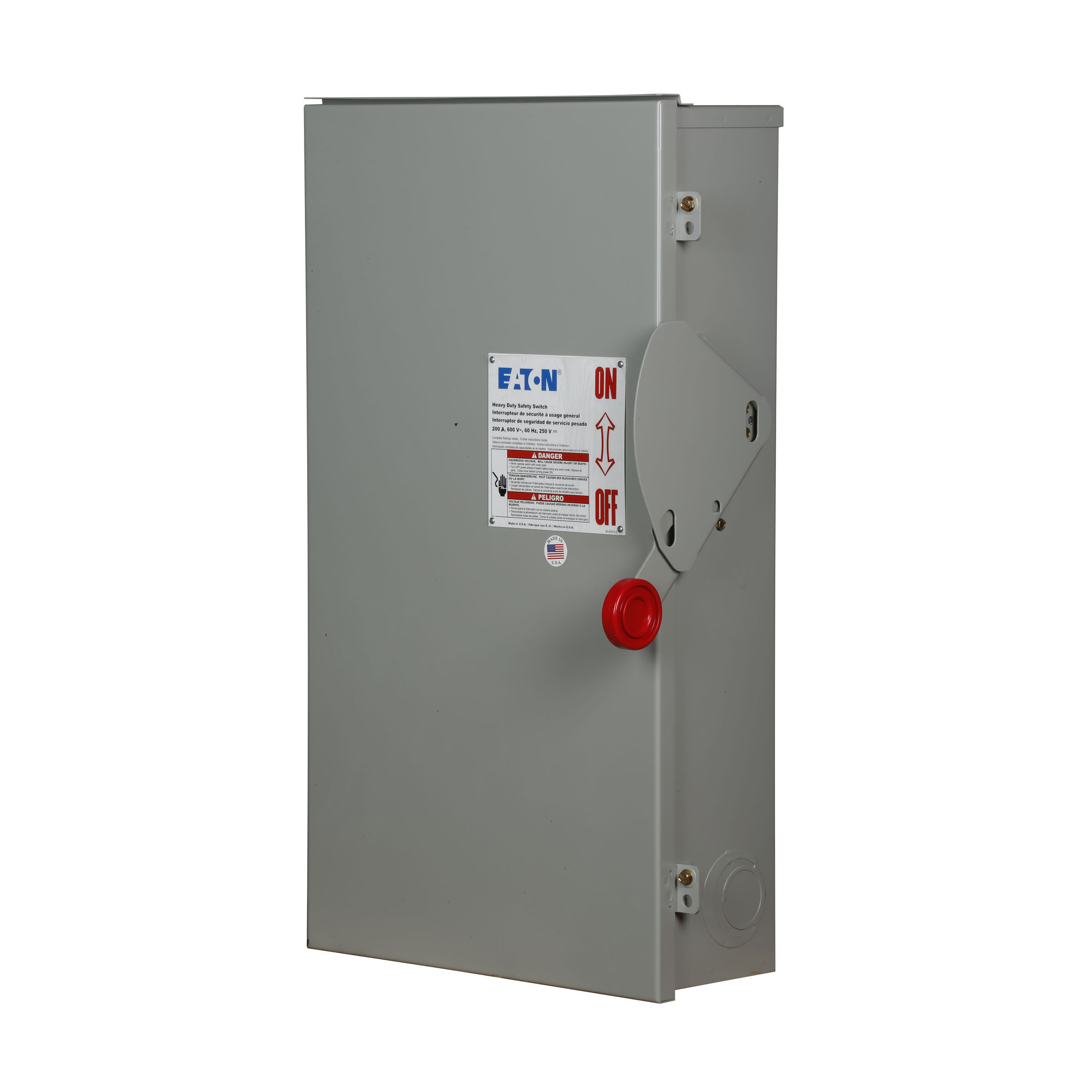

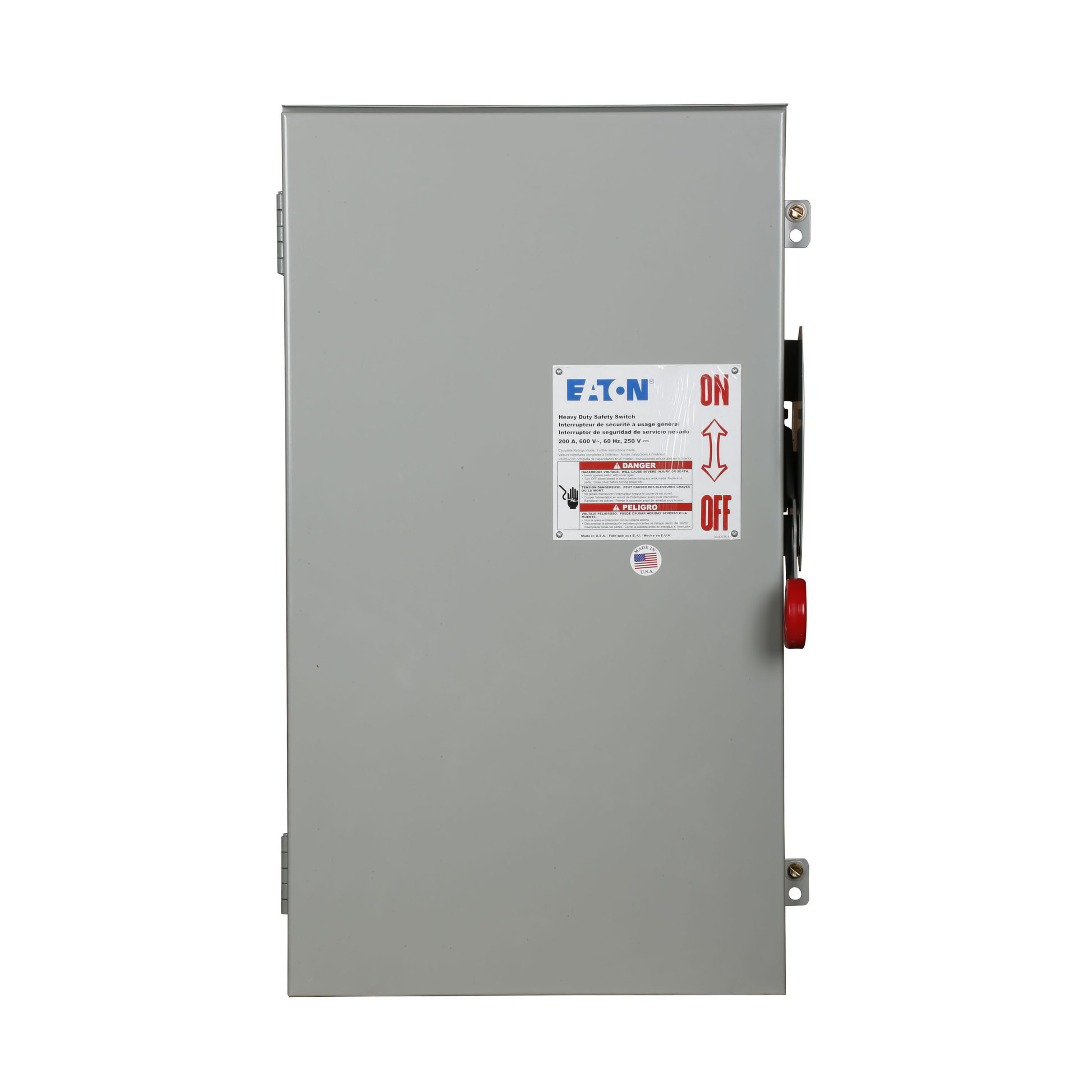

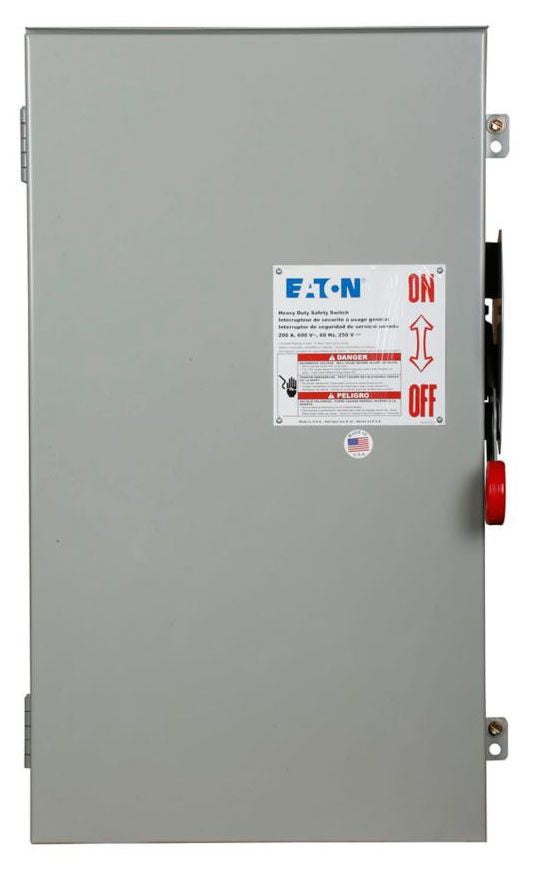

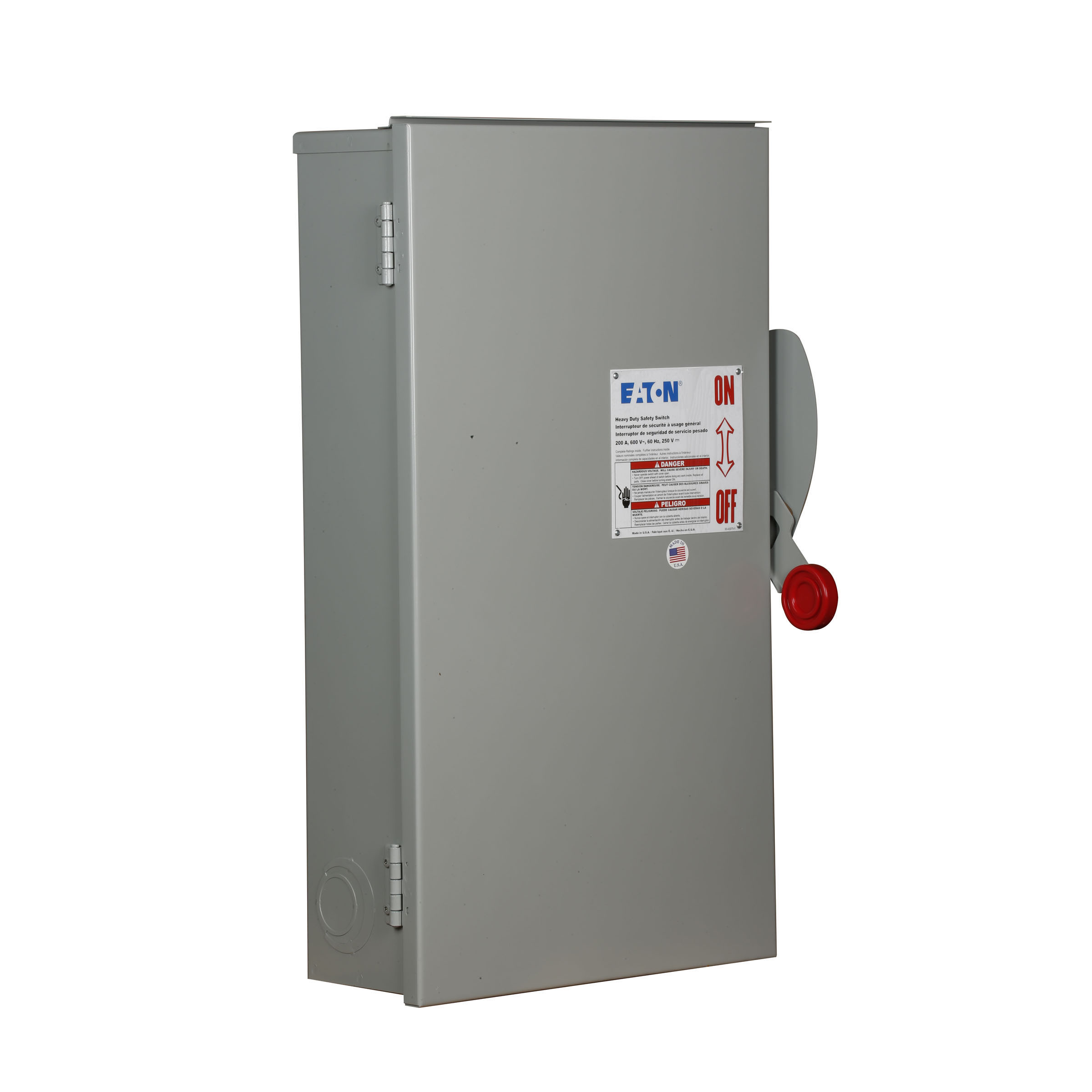

Cutler-Hammer DH364URK is a heavy-duty safety switch designed for reliable electrical control. This non-fusible switch can handle an amperage rating of 200A and is rated for up to 600V. It is built with a NEMA 3R enclosure, suitable for outdoor use, made from painted galvanized steel.

• Single-throw design
• Three-pole and three-wire configuration
• Designed for service entrance use

Product Highlights

This product is ideal for various electrical applications in commercial settings. It ensures safety and reliability in power distribution.

Product Information

Standard Information

• Manufacturer: Cutler-Hammer
• Product Category: Heavy Duty, Non-Fusible

Technical Specifications

• Type: Single-throw
• Height: 9.5 inches
• Length: 30 inches
• Width: 18 inches
• Weight: 40 lb
• Amperage Rating: 200A
• Voltage Rating: 600V
• Number of Poles: Three-pole
• Number of Wires: Three-wire
• Enclosure: NEMA 3R
• Enclosure Material: Painted galvanized steel
• Fuse Configuration: Non-fusible
• Max HP Rating: 15 at 240 Vac TD 1 Ph, 50 at 480 Vac TD 1 Ph, 50 at 600 Vac TD 1 Ph, 60 at 240 Vac TD 3 Ph, 125 at 480 Vac TD 3 Ph, 150 at 600 Vac TD 3 Ph, 40 at 250 Vdc
• Notes: Suitable for service entrance use with a neutral or ground lug kit installed
