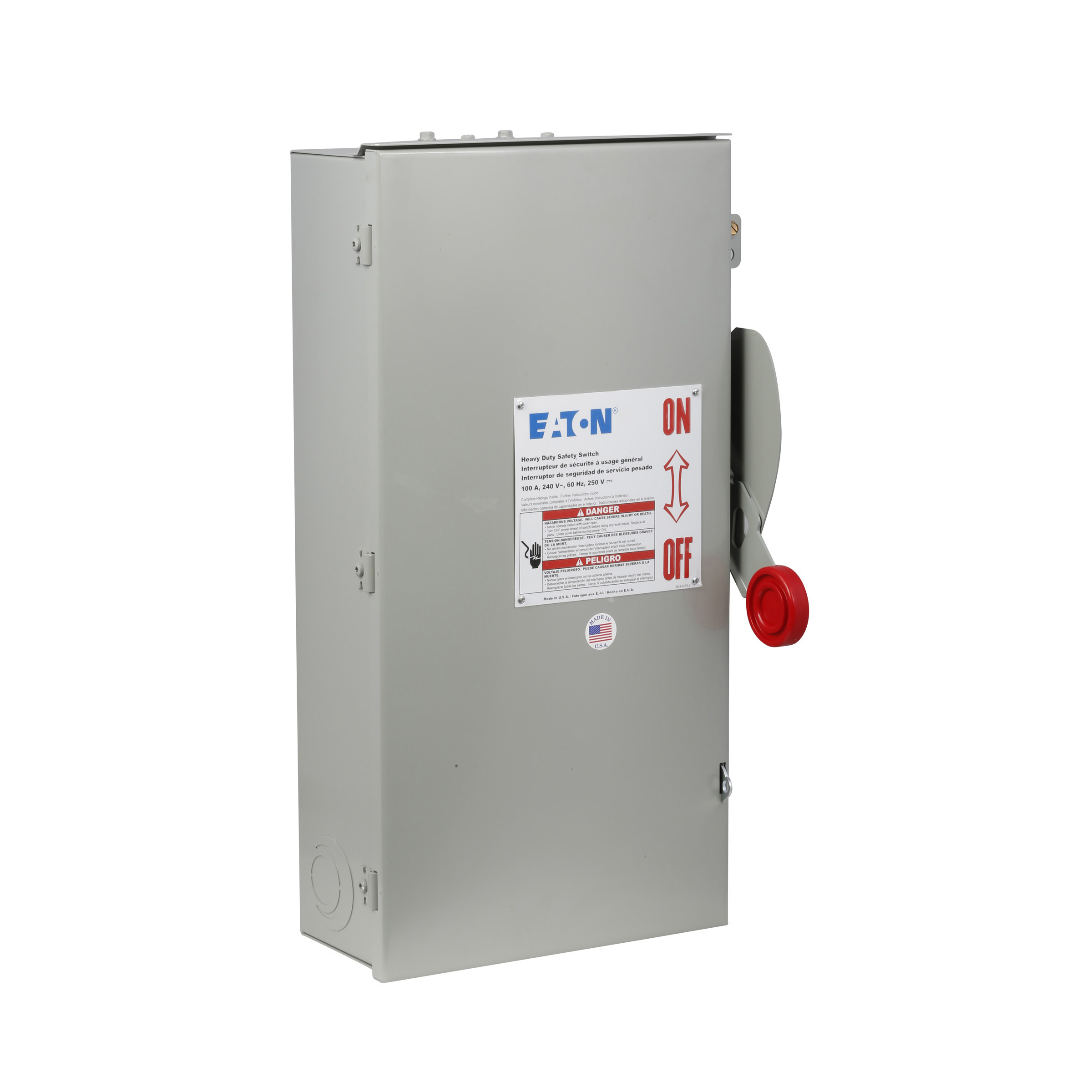

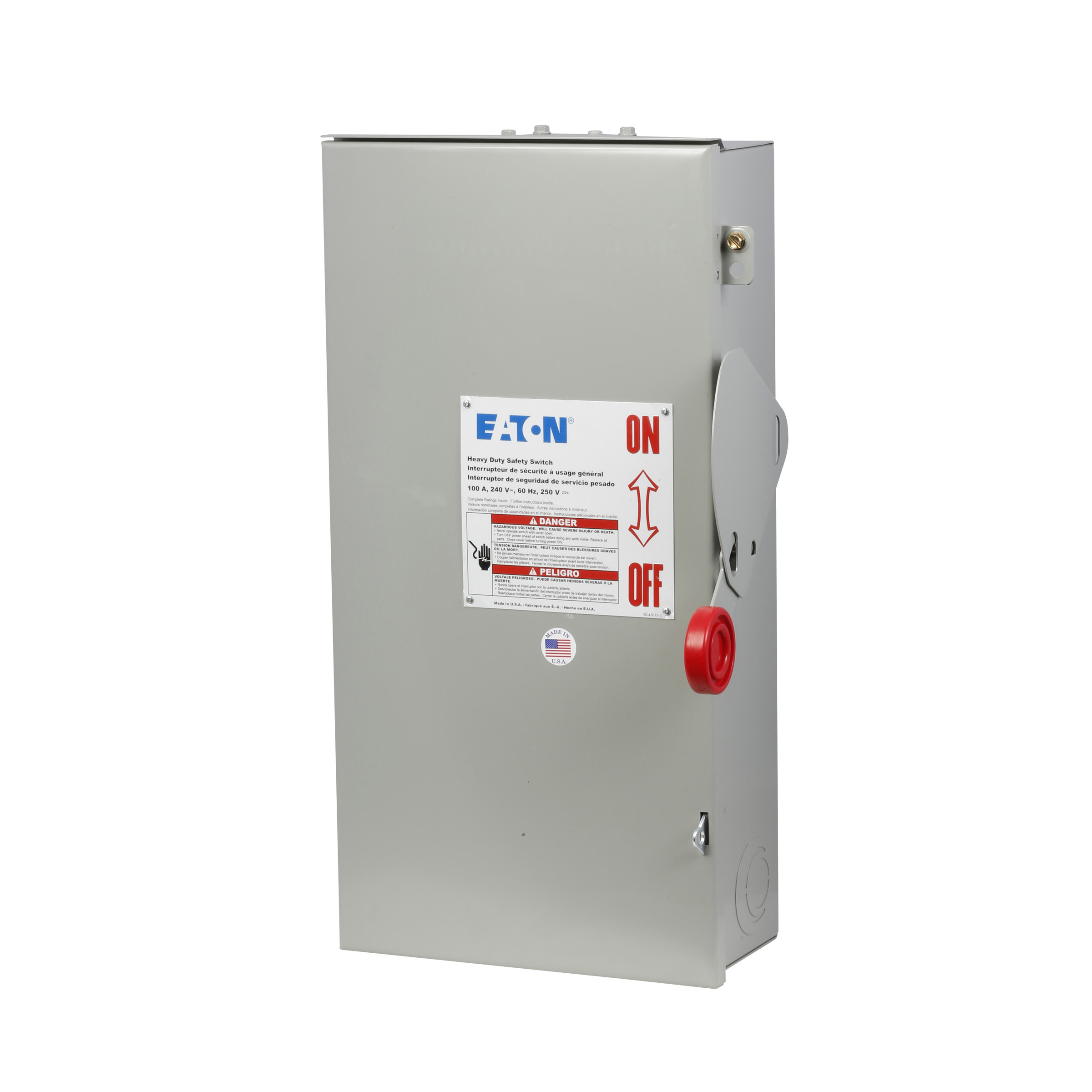

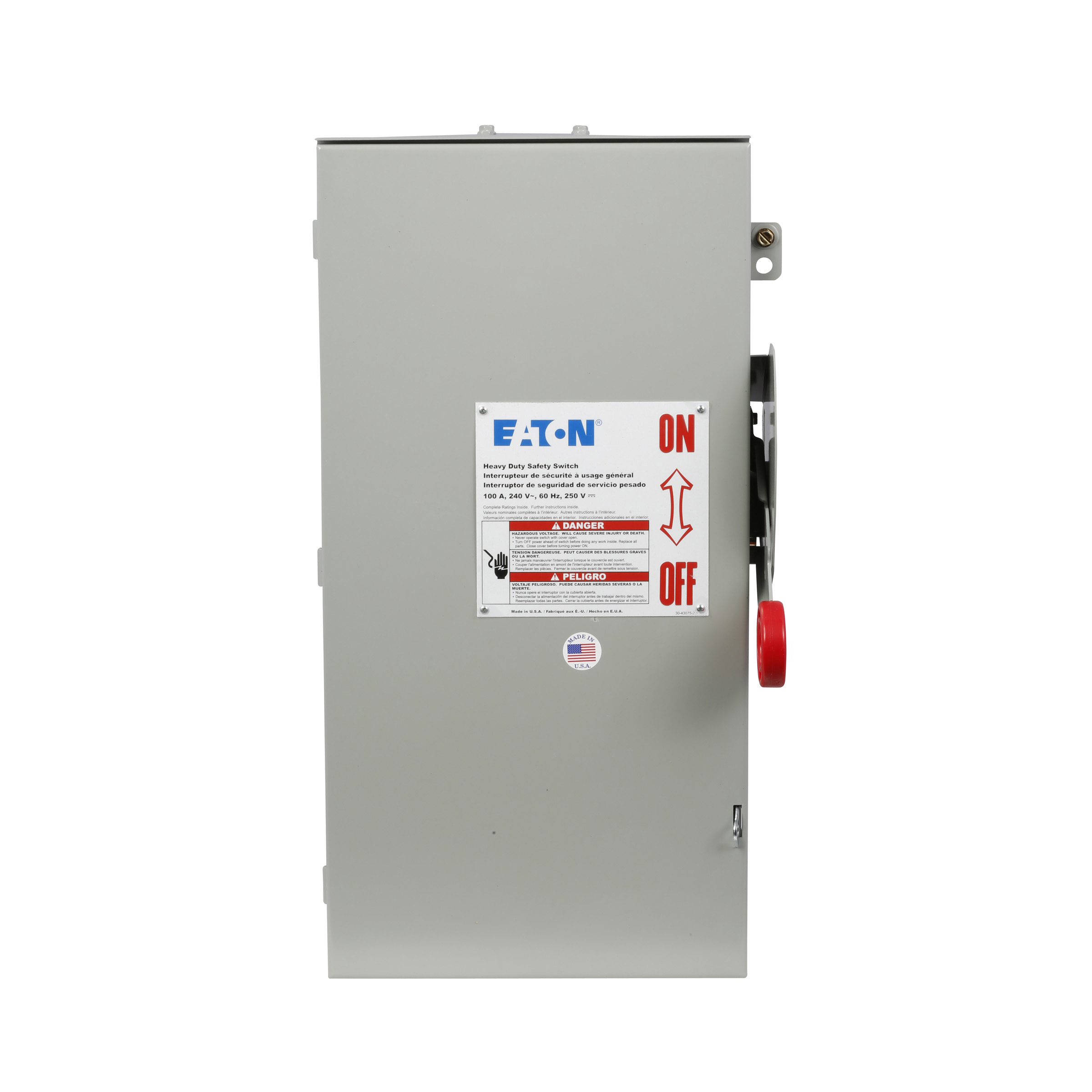

Cutler-Hammer DH363URK Safety Switch 100A 600V NEMA 3R

Product Description

Cutler-Hammer DH363URK is a safety switch with a single-throw design, rated for one hundred amperes and six hundred volts. This safety switch is ideal for commercial and institutional power distribution systems. The device is compatible with non-fusible applications, making it suitable for various installations.

• Single-throw design for easy operation.
• Rated for up to 100 amperes and 600 volts.
• Constructed with painted galvanized steel for durability.

Product Highlights

This safety switch is compliant with NEMA 3R enclosures and is designed for outdoor use with protection against water and dust. It is a three-pole, three-wire configuration, making it suitable for use in a wide range of electrical distribution scenarios.

Product Information

Standard Information

• Manufacturer: Cutler-Hammer
• Type: Non-fusible safety switch

Technical Specifications

• Amperage Rating: 100A
• Voltage Rating: 600V
• Max Hp Rating: 20 at 240 Vac TD 1 Ph, 40 at 480 Vac TD 1 Ph, 50 at 600 Vac TD 1 Ph, 40 at 240 Vac TD 3 Ph, 75 at 480 Vac TD 3 Ph, 100 at 600 Vac TD 3 Ph, 20 at 250 Vdc
• Enclosure: NEMA 3R
• Enclosure Material: Painted galvanized steel
• Number Of Poles: Three-pole
• Number Of Wires: Three-wire
• Weight: 22 LB
• Height: 8.5 IN
• Length: 22.5 IN
• Width: 12.5 IN
• Notes: Suitable for service entrance use with a neutral or ground lug kit installed
