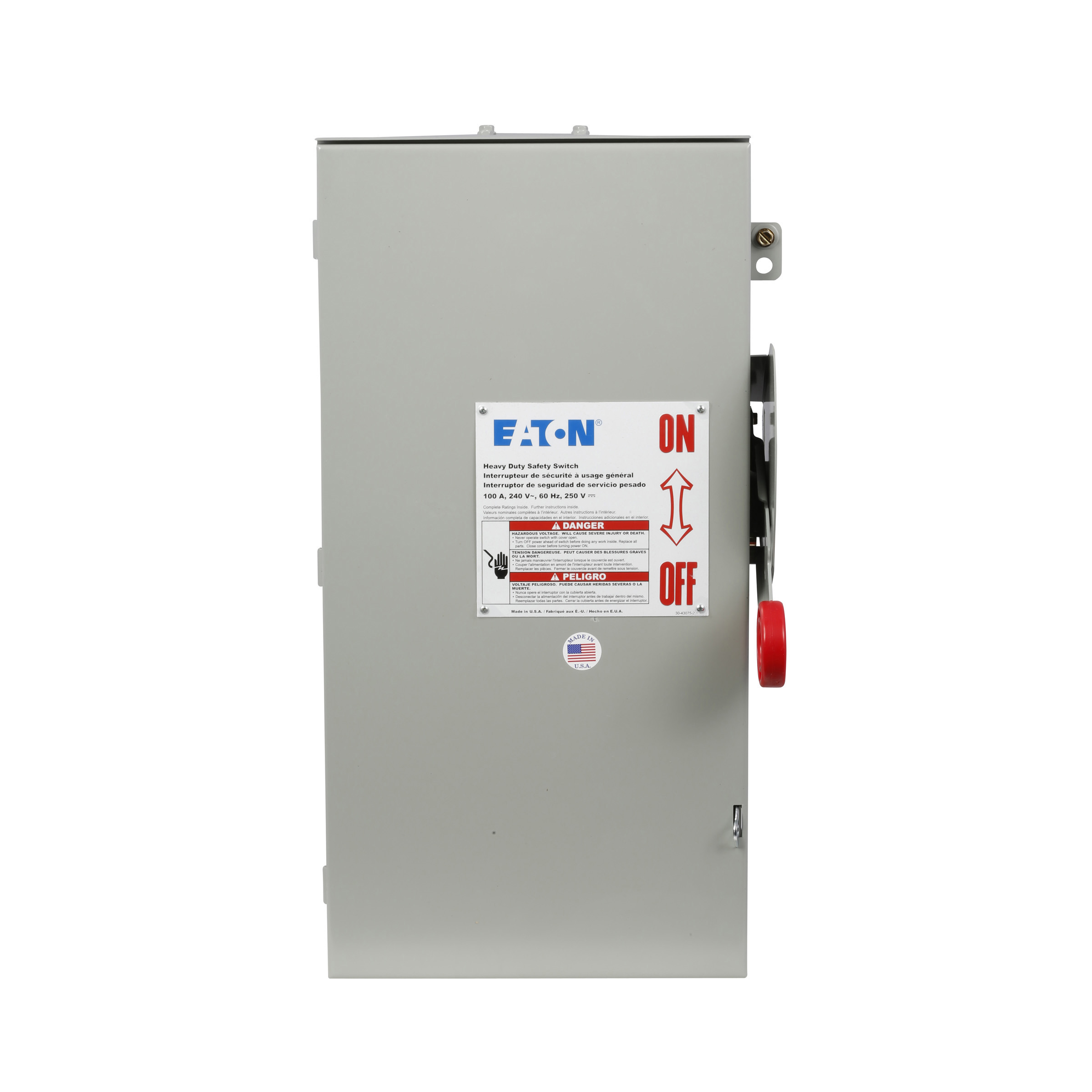

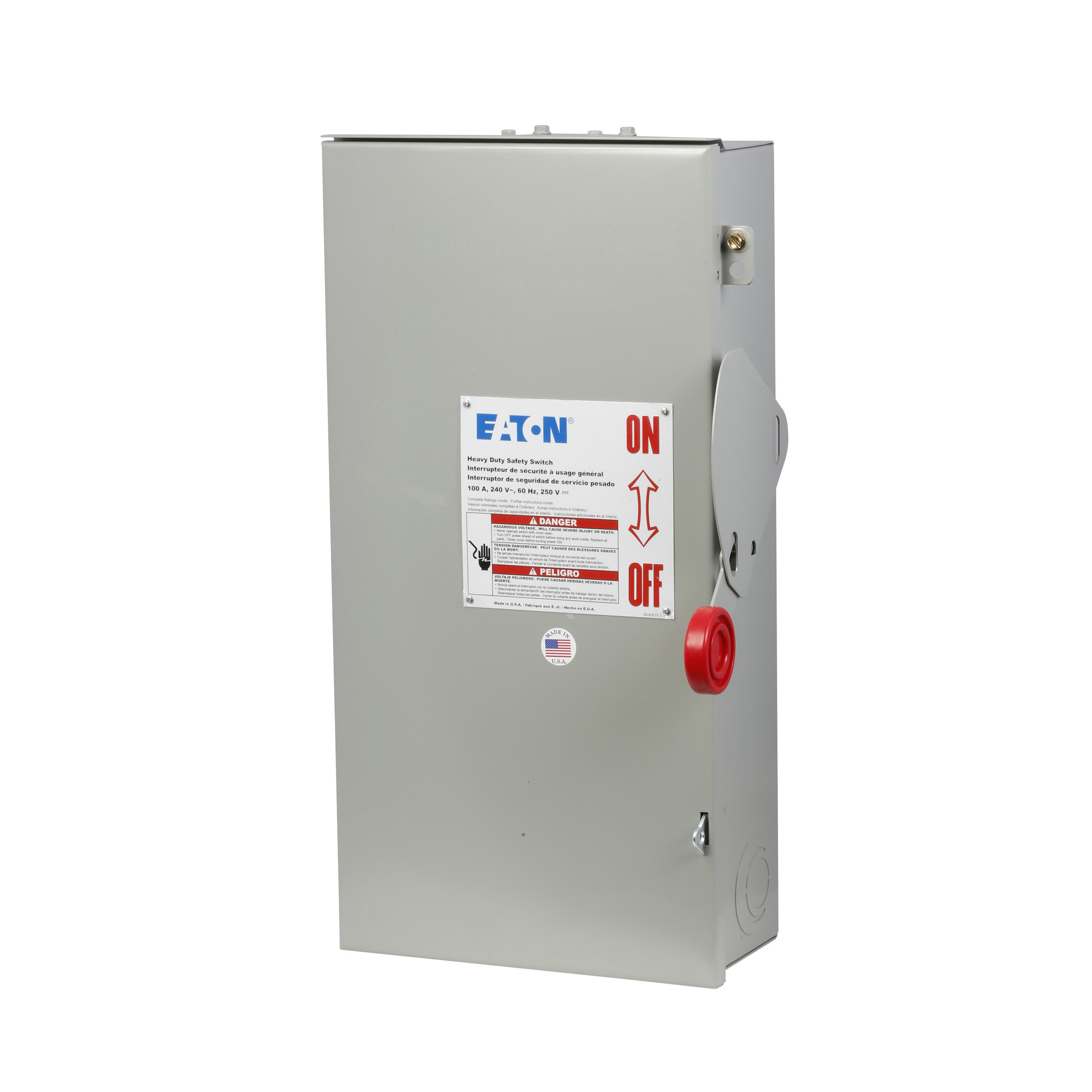

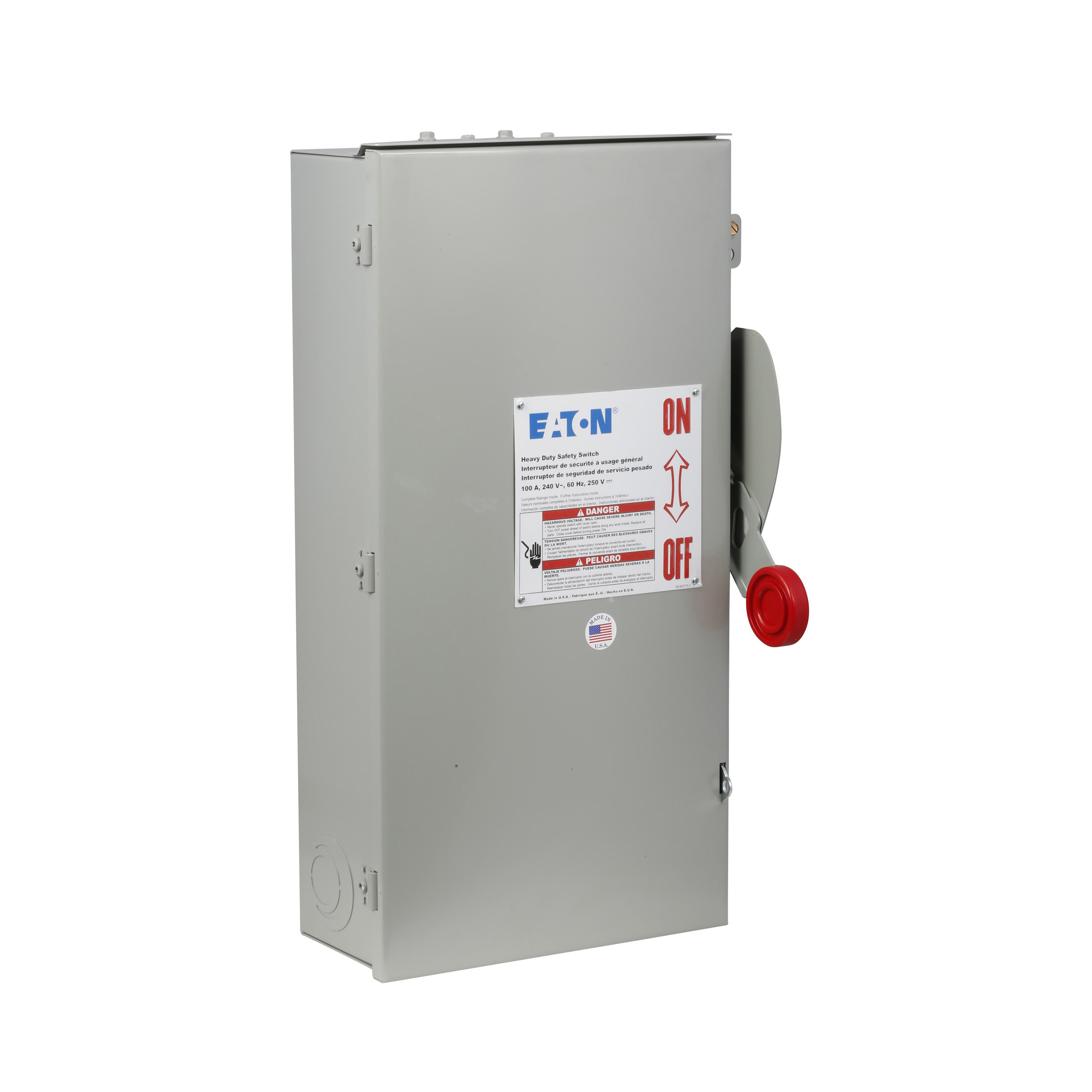

Cutler-Hammer DH363NRK Safety Switch 100A 600V NEMA 3R

Product Description

The Cutler-Hammer DH363NRK is a safety switch rated at 100A and 600V. It is designed for use as a heavy-duty fusible switch in various electrical applications. This switch is an essential component in ensuring safe electrical distribution within commercial and institutional buildings.

• Heavy-duty fusible safety switch
• NEMA 3R enclosure for outdoor and indoor use
• Fusible with neutral for added safety

Product Highlights

This switch features a durable painted galvanized steel enclosure and is suitable for three-pole and four-wire configurations.

Product Information

Standard Information

• Manufacturer: Cutler-Hammer
• UPC: 78211320649

Technical Specifications

• Type: Heavy duty fusible safety switch
• Height: 8.5 inches
• Length: 22.5 inches
• Width: 12.75 inches
• Weight: 22 pounds
• Amperage Rating: 100A
• Enclosure: NEMA 3R
• Enclosure Material: Painted galvanized steel
• Fuse Class Provision: Class H
• Fuse Configuration: Fusible with neutral
• Number Of Poles: Three-pole
• Number Of Wires: Four-wire
• Voltage Rating: 600V
• Max Hp Rating: 30, 40/60, 75 hp (1/3PH @ 480, 600 V)
