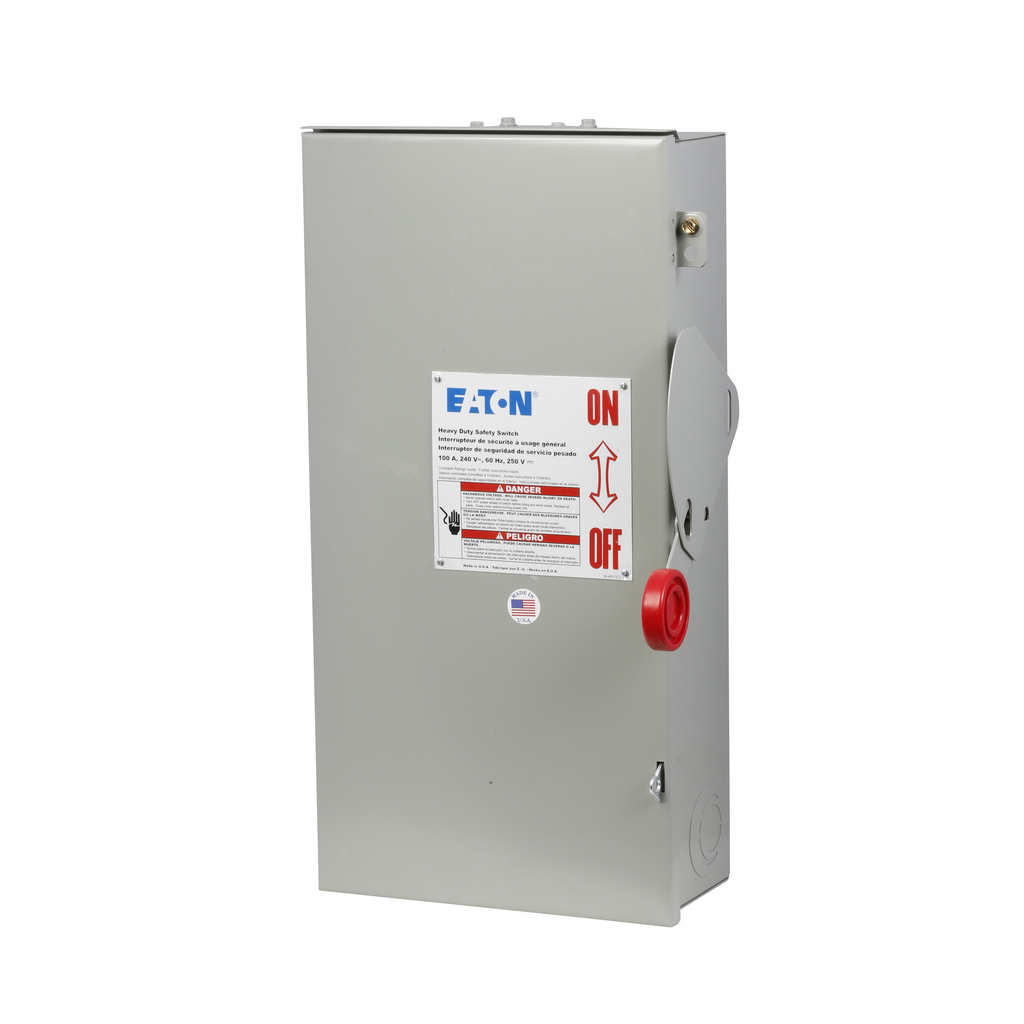

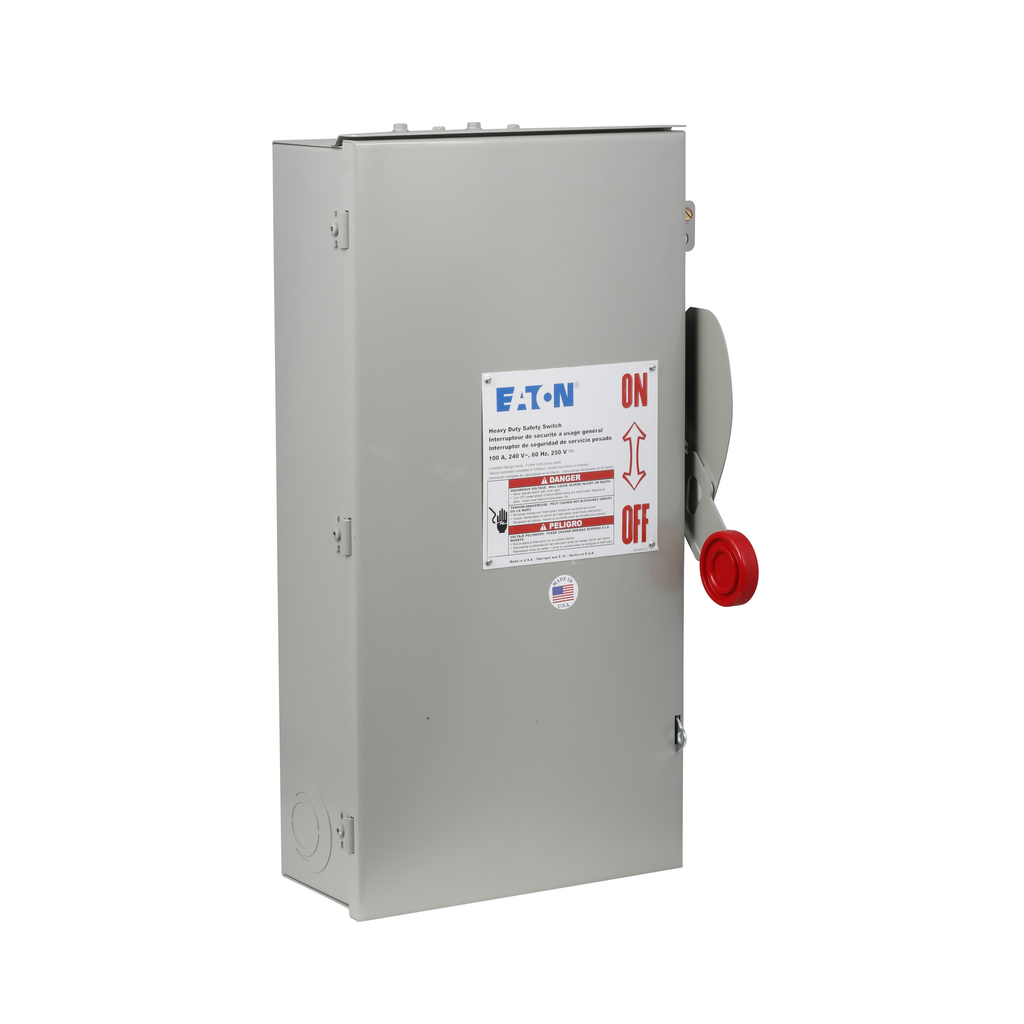

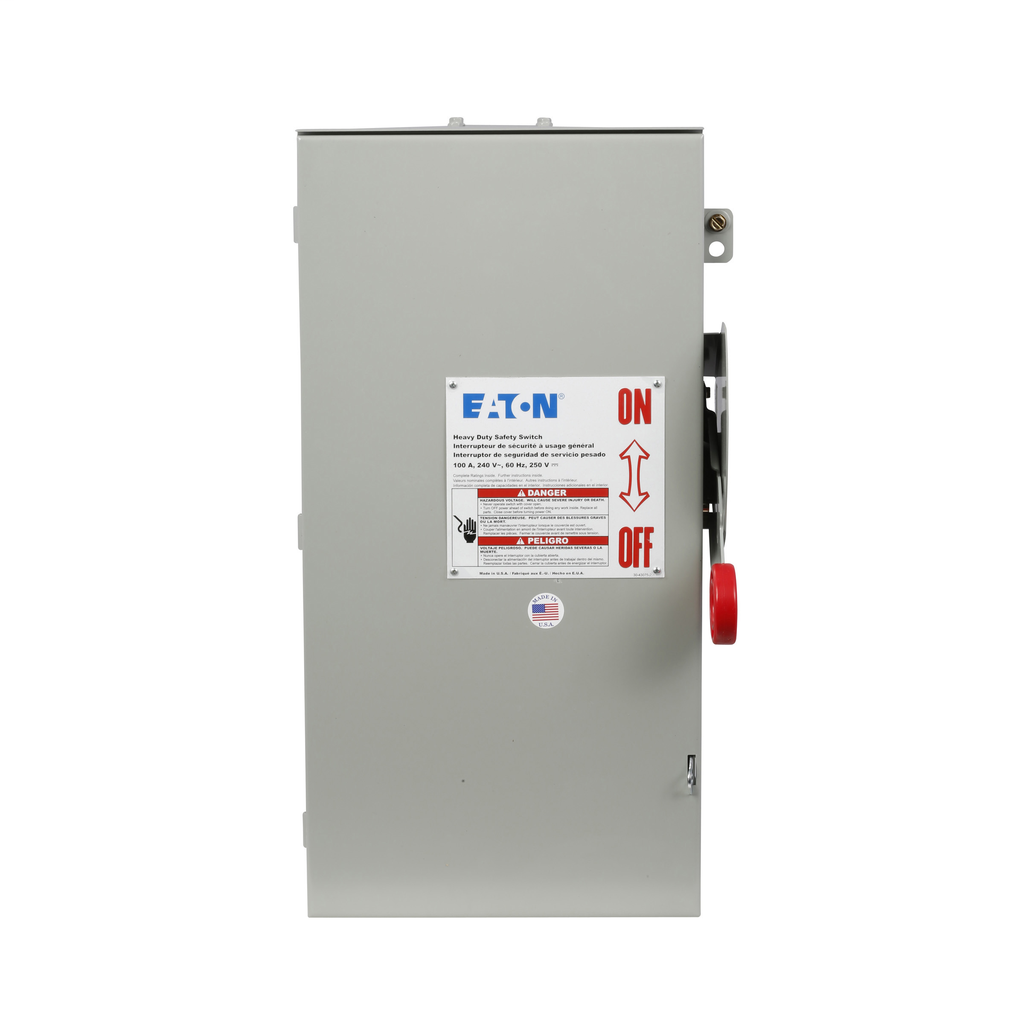

Cutler-Hammer DH363NRK Eaton Heavy Duty Safety Switch

Product Description

Cutler-Hammer Manufacturing Co. presents the DH363NRK Heavy Duty Safety Switch. This switch is designed for reliable power distribution, operating at one hundred amperes and rated for six hundred volts. The unit is suitable for commercial and institutional buildings. With a robust NEMA 3R enclosure, it protects against dust and moisture ingress.

• Rated for 100 amps and 600 volts
• Three-pole design with four wires
• Constructed of painted galvanized steel

Product Highlights

This heavy-duty fusible safety switch is ideal for various applications, ensuring safe operation in electric power systems.

Product Information

Standard Information

• Brand: Cutler-Hammer Manufacturing Co.
• Manufacturer: Eaton

Technical Specifications

• Type: Heavy Duty Fusible Safety Switch
• Voltage: 600 Volt
• Amperage: 100 Amp
• Material: Steel
• Enclosure: NEMA 3R
• Number of Poles: 3 Pole
• Number of Wires: 4 Wire
• Weight: 22 lb
• Dimensions: 22.5 inches (L) x 12.75 inches (W) x 8.5 inches (H)
