Cutler-Hammer DH362UGK CH3 DH362UGK 600V SFTY SW

Product Description

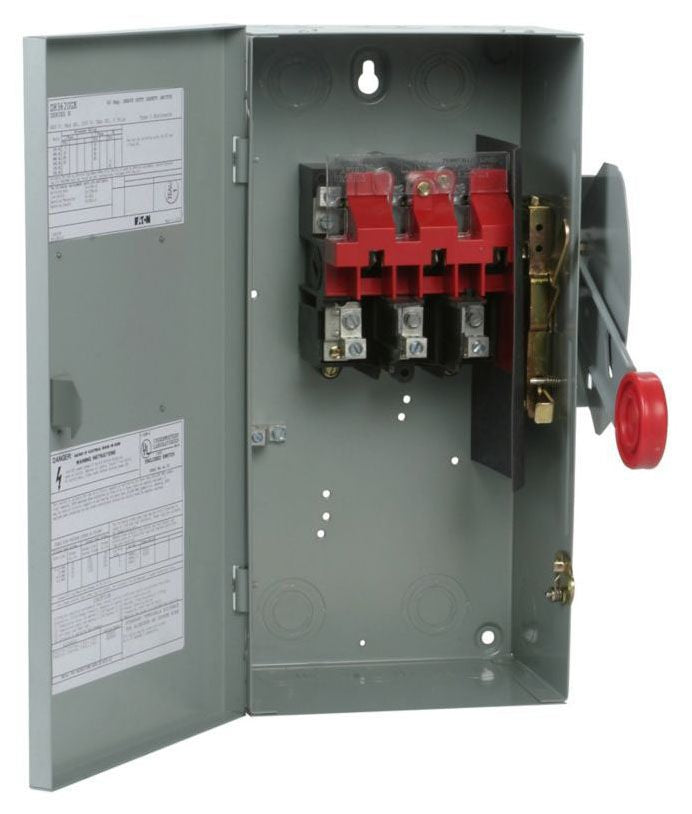

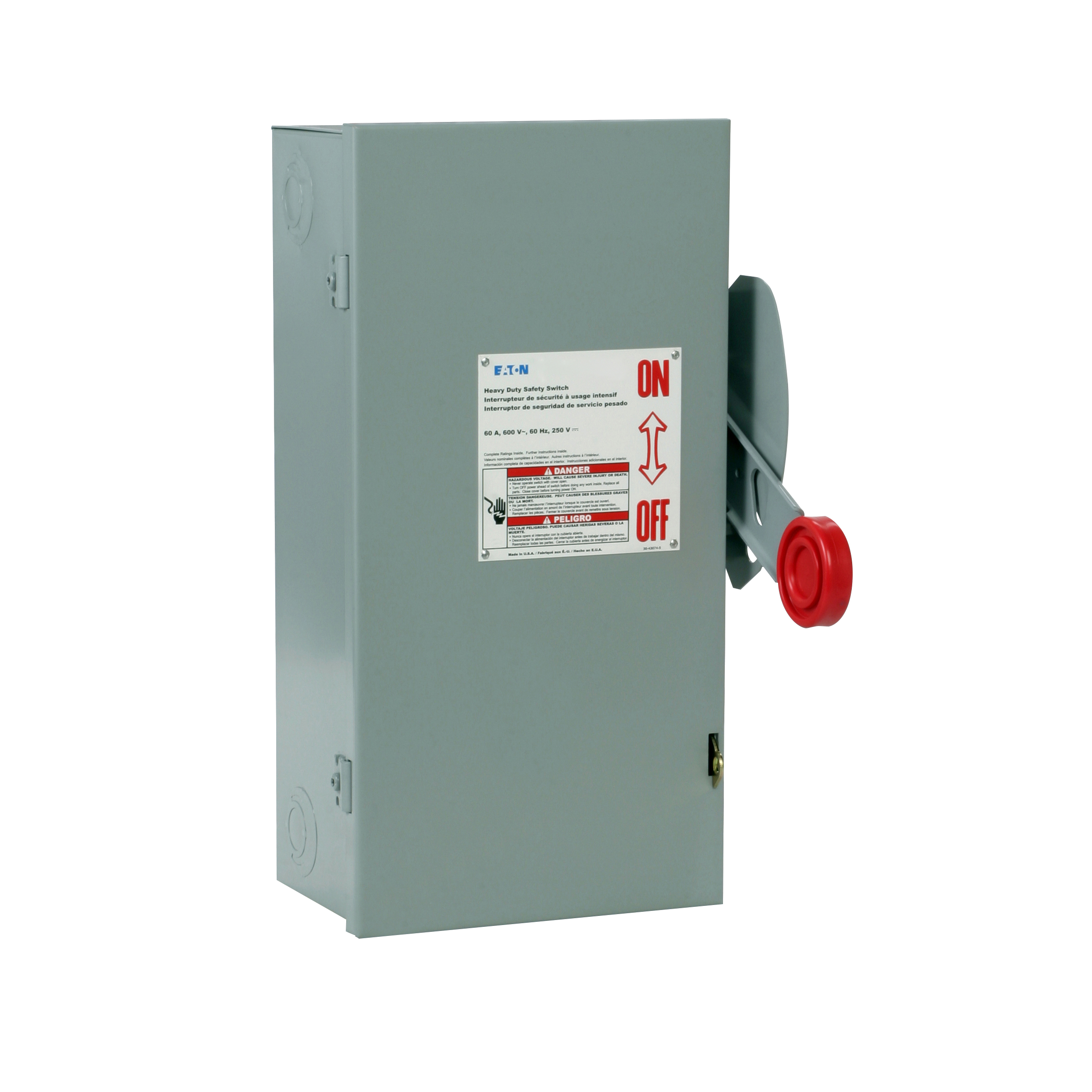

The Cutler-Hammer DH362UGK is a 600V safety switch designed for reliability and safety in electrical distribution systems. This product features a three-pole, non-fusible design suitable for various commercial applications. The switch is housed in a durable painted steel enclosure rated NEMA 1.

• Voltage Rating: 600V
• Amperage Rating: 60A
• Dimensions: Height of eight point thirty-one inches, Length of sixteen point five inches, Width of nine point twelve inches

Product Highlights

This switch is ideal for service entrance applications and supports multiple configurations for three-wire setups. It ensures safe electrical control where heavy-duty performance is required.

Product Information

Standard Information

• Manufacturer: Cutler-Hammer
• MPN: DH362UGK

Technical Specifications

• Type: Single-throw
• Enclosure: NEMA 1
• Material: Painted steel
• Fuse Configuration: Non-fusible
• Number Of Poles: Three-pole
• Number Of Wires: Three-wire
• Max Hp Rating: 10 at 240 Vac TD 1 Ph
• Max Hp Rating: 20 at 480 Vac TD 1 Ph
• Max Hp Rating: 25 at 600 Vac TD 1 Ph
• Notes: Suitable for service entrance use with a neutral or ground lug kit installed
