Cutler-Hammer DH362NRK CH3 DH362NRK 600V SFTY SW

Product Description

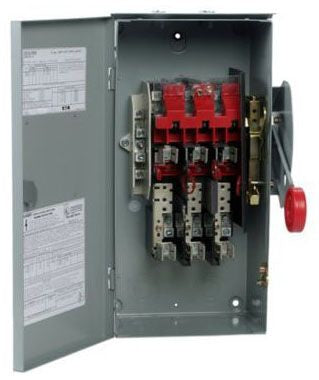

Cutler-Hammer DH362NRK is a heavy-duty fusible safety switch designed for commercial and institutional applications. This safety switch operates at a voltage rating of 600V and a maximum amperage rating of sixty amps. It is constructed with painted galvanized steel and features a NEMA 3R enclosure for weather resistance.

• Heavy-duty fusible safety switch
• NEMA 3R rating for outdoor use
• Three-pole and four-wire configuration

Product Highlights

This switch is ideal for various electrical distribution needs, providing a reliable means to disconnect electrical circuits safely.

Product Information

Standard Information

• Manufacturer: Cutler-Hammer
• MPN: DH362NRK

Technical Specifications

• Type: Heavy duty fusible safety switch
• Height: 8.25 inches
• Width: 9.25 inches
• Length: 16.5 inches
• Weight: 20 pounds
• Amperage Rating: 60A
• Voltage Rating: 600V
• Max Hp Rating: 20, 25/30, 50 hp (1/3PH @ 480V, 600V)
• Enclosure: NEMA 3R
• Enclosure Material: Painted galvanized steel
• Fuse Class Provision: Class H
• Fuse Configuration: Fusible with neutral
• Number Of Poles: Three-pole
• Number Of Wires: Four-wire
• Product Category: Heavy Duty, Fusible with neutral
