Cutler & Hammer DH362NGK 60A 600V 4SN SW NEMA 1

Product Description

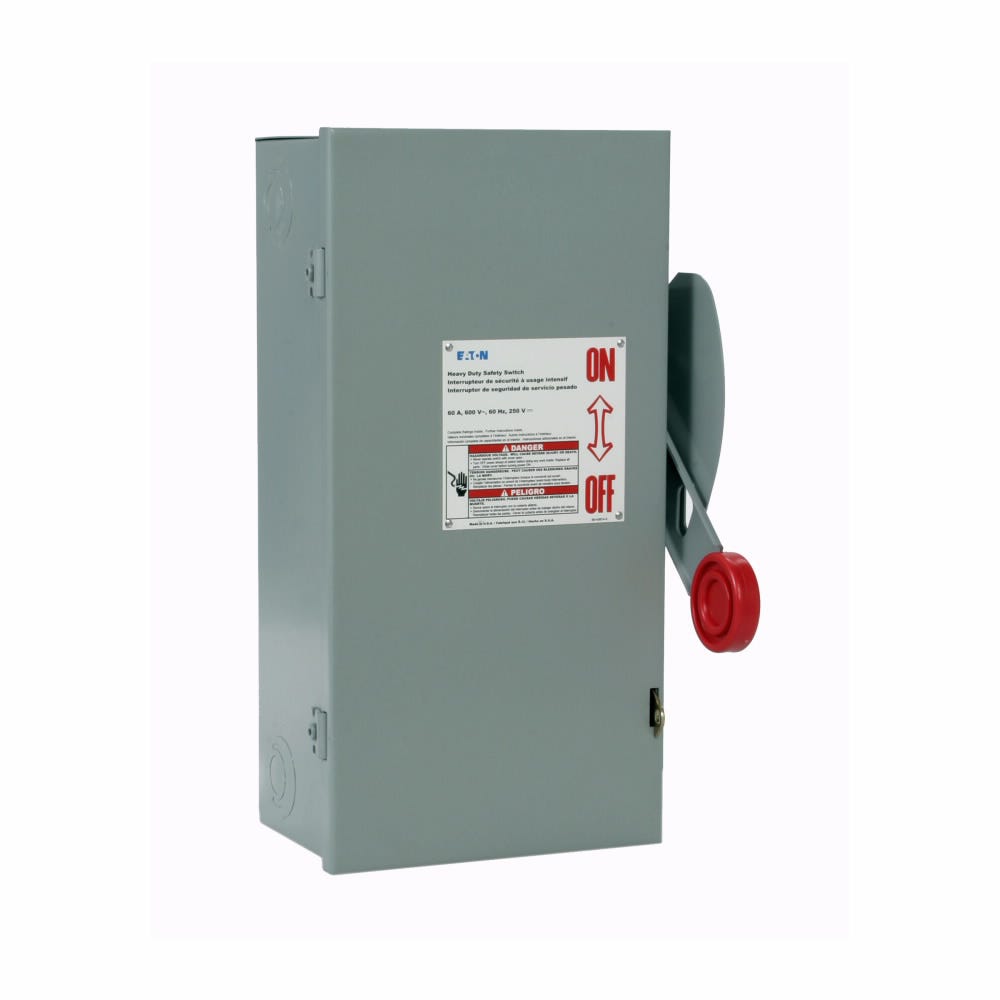

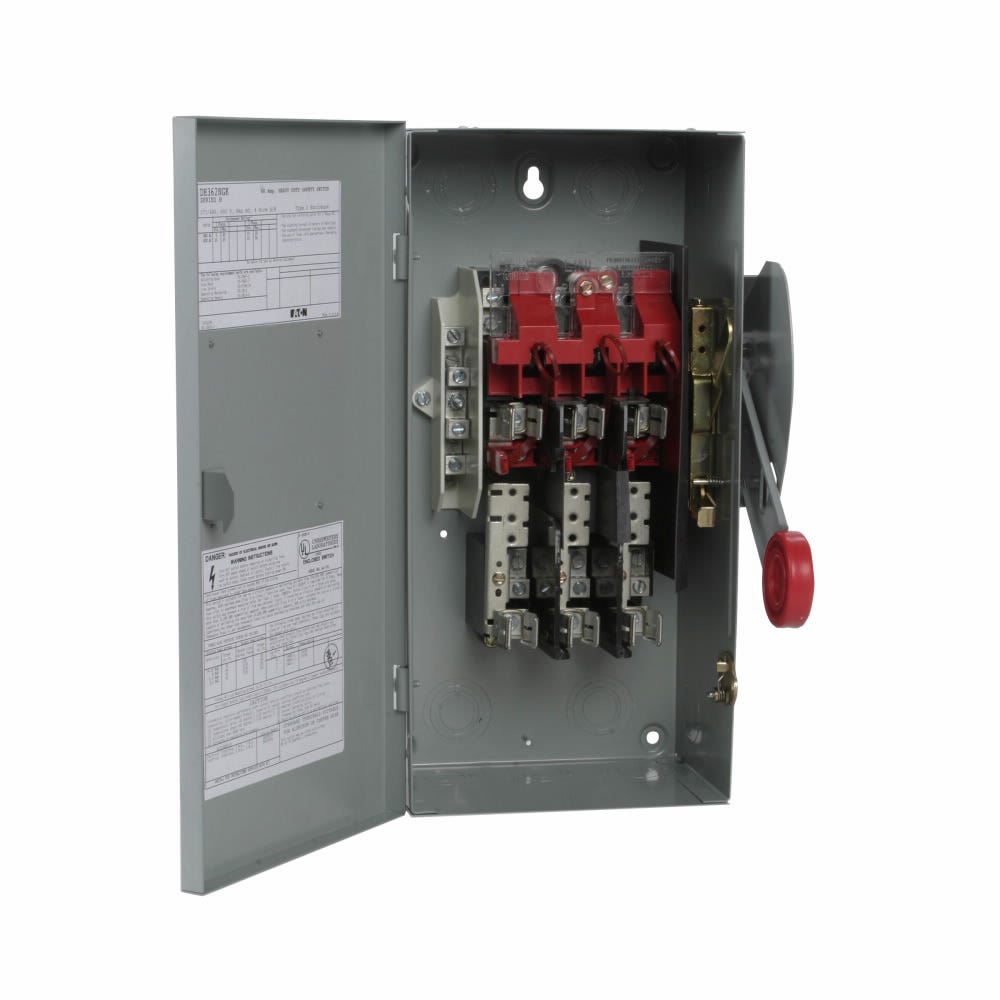

The CUTLER & HAMMER DH362NGK is a heavy-duty single-throw fused safety switch. Rated at 60A and 600V, this three-pole, four-wire switch features a NEMA 1 enclosure made of painted steel. It is Class H fuse compatible and fusible with neutral, suitable for various applications.

• Heavy duty single-throw fused safety switch
• NEMA 1 enclosure
• Fusible with neutral

Product Highlights

This safety switch is ideal for manually connecting or disconnecting loads, providing overcurrent protection with installed fuses in commercial and industrial applications.

Product Information

Standard Information

• Brand: CUTLER & HAMMER
• Manufacturer Part Number: DH362NGK

Technical Specifications

• Amperage: 60 A
• Voltage: 600 V
• Enclosure: NEMA 1
• Type: Heavy duty single-throw fused safety switch
• Material: Painted steel
• Fuse Class: Class H
• Fusible: Fusible with neutral
• Poles: Three-pole
• Wires: Four-wire
• Max Hp: 20; 25/ 30; 50 hp (1/3PH 480; 600 V)
• Wire Size: NO.14-NO.2 Cu/Al
• Product Length/Depth: 5.25 in
• Product Height: 15.81 in
• Product Width: 7.75 in
• Compliances: NEC 230.62 (C) Compliant Barrier
• Certifications: UL Listed
• Product Type: Fusible safety switch
• Enclosure material: Painted steel
• Fuse class provision: Class H
• Fuse configuration: Fusible with neutral
• Number of poles: Three-pole
• Number of wires: 4
• Amperage Rating: 60A
• HP rating - max: 20, 25/ 30, 50 hp (1/3PH @480, 600 V)
• NEMA rating: NEMA 1
• Voltage rating: 600 V
• Product Category: Heavy Duty Fusible with neutral
• Manufacturer Part Number: DH362NGK
• Manufacturer: Cutler Hammer, Div of Eaton
• Product Series: DH
• Family Series: Cutler Hammer, Div of Eaton Safety Switches, DH Series
• Description: Eaton Heavy duty single-throw fused safety switch, 60 A, NEMA 1, Painted steel, Class H, Fusible with neutral, Three-pole, Four-wire, 600 V, Max Hp: 20, 25/ 30, 50 hp 1/3PH 480, 600 V, 14-2 Cu/Al
• Switch Type: Heavy Duty
• Number Of Poles: 3
• Current Rating: 60 A
• Fuse Type: H, R
• Neutral: Yes
• Composition: Metallic
• Approvals: CUL, UL
• Net Weight: 17 lbs
• Gross Weight: 20 lbs
