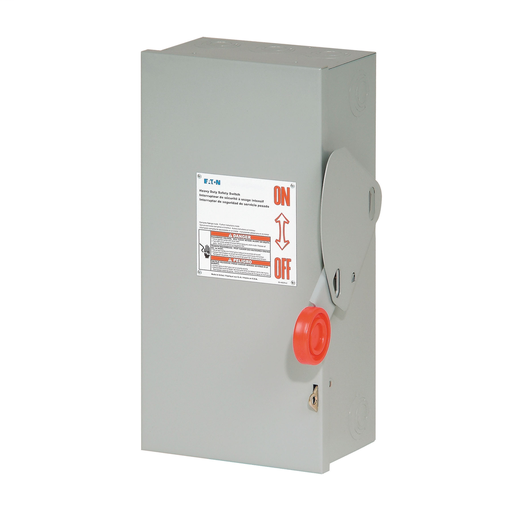

Cutler-Hammer DH362FRK Eaton Heavy Duty Safety Switch

Product Description

The Cutler-Hammer Manufacturing Co. DH362FRK is a heavy duty safety switch designed for reliable performance in power distribution. This safety switch features a visible blade single-throw operation and is rated for sixty amps. Suitable for outdoor use, it meets NEMA 3R specifications and is constructed from painted galvanized steel.

• Rated for 60 amps and 600 volts
• Three-pole and three-wire configuration
• Fusible without neutral, maximum horsepower is twenty

Product Highlights

This product is ideal for commercial and institutional buildings. It is suitable for various applications, ensuring safe and efficient power distribution.

Product Information

Standard Information

• Brand: Cutler-Hammer Manufacturing Co.
• Manufacturer: Eaton

Technical Specifications

• Type: Heavy Duty Fusible Safety Switch
• Voltage: 600 Volt
• Amperage: 60 Amp
• Material: Steel
• Enclosure: NEMA 3R
• Number of Poles: 3 Pole
• Number of Wires: 3 Wire
• Dimensions: 16-1/2 inches (Length) x 9.5 inches (Width) x 8-1/2 inches (Height)
• Weight: 12 lb
